Default DIY 4 tap tower

My on going project of turnin my old kegerator into a kegerator for 4 corny kegs with a tower. My kegerator is old kenmore model that will hold 4 cornies and 5# CO2 tank. I worked on this a little this winter trying pvc pipe but can't find a glue that works good enough for my approval. Next Phase... bought a length of 4" tail pipe and a length of 3" tail pipe. The 3" will be used for the riser and the 4" for the cross at top to hold the taps. Fortunately I have access to a wire welder (the same one used for my three tier stand) I know this will hold to my standards and metal is much more fun to work with than plastic.

First phase: was cutting the hole in the top to take the stand pipe and cut them to length. So far I'm happy with the look but still need to find a way to cap the ends that nice and neat.


Idea for ends:I'm thinking of refinishing the entire kegerator. Right now its dark brown. I'm thinking of painting entire thing black and putting a maple top on it with a black tower. Maple end caps may look nice. Use something like this:1860A21 Push-to-Open Magnetic Catch 2.5 lb Pull, Black/Black, 1-3/32" X 1-19/32" X 5/8"
$3.09 Each McMaster-Carr (I love this place)to attach the ends put a small metal plate on the inside of the cap and epoxy 2 of these inside the tower on each end. You just push the end cap and it will release enough to grab it.

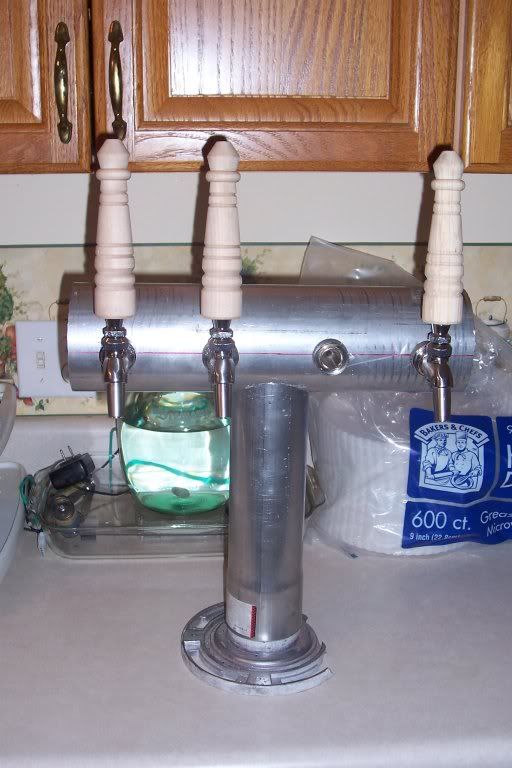

Second phase: drilled holes for the shanks and tested 3 of 4 faucets (the other is in use right now). So far I like the way its shaping up. No I wasn't drinking, still not welded so it may appear a little unbalanced

__________________

Last edited by weizen; 07-08-2009 at 01:06 AM. Reason: added pics
weizen is offline

Reply With Quote Quick reply to this message
Old 07-07-2009, 01:24 PM   #2
camiller
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Omaha, NE
Posts: 1,882
Liked 27 Times on 27 Posts
Likes Given: 9

Default

camiller is offline

Reply With Quote Quick reply to this message
Old 07-07-2009, 11:47 PM   #3
weizen
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2008
Location: Central Va
Posts: 79
Default

pics showing up fine on my machine...... http://jrhb.org/forums/attachment.ph...5&d=1246930129
http://jrhb.org/forums/attachment.ph...0&d=1246838313

__________________
weizen is offline

Reply With Quote Quick reply to this message
Old 07-08-2009, 12:28 AM   #4
MBasile
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2009
Location: Sunnyvale, CA (NorCal)
Posts: 1,511
Liked 7 Times on 7 Posts
Likes Given: 2

Default

links require logging in, and I'm sure not being registered/logged in is responsible for us not being able to see the pictures.

__________________
MBasile is offline

Reply With Quote Quick reply to this message
Old 07-08-2009, 01:07 AM   #5
weizen
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2008
Location: Central Va
Posts: 79
Default

grrr guess I had to do it eventually... created photobucket account

__________________
weizen is offline

Reply With Quote Quick reply to this message
Old 07-08-2009, 05:16 AM   #6
camiller
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Omaha, NE
Posts: 1,882
Liked 27 Times on 27 Posts
Likes Given: 9

Default

Hey, I see em now. Nice looking work. Looking forward to seeing it finished.

camiller is offline

Reply With Quote Quick reply to this message
Old 07-08-2009, 05:19 PM   #7
Ender
Feedback Score: 1 reviews
Recipes

Join Date: Feb 2007
Location: Columbus, Oh.
Posts: 258
Liked 2 Times on 1 Posts

Default

This is a damn good idea. What did you use for the bottom of the 3" tail to screw it onto the kegerator?

__________________

Ender

I'm Smelling a lot of IF coming offa this plan

Ender is offline

Reply With Quote Quick reply to this message
Old 07-08-2009, 05:31 PM   #8
IrregularPulse
Hobby Collector
Feedback Score: 0 reviews

IrregularPulse's Avatar
Recipes

Join Date: Nov 2007
Posts: 41,977
Liked 2747 Times on 2698 Posts
Likes Given: 110

Default

You couldn't find a glue good enough for your approval on PVC? Did you try PVC Cement The stuff made for joining PVC?

__________________
Tap Room Hobo

I should have stuck to four fingers in Vegas. :o - marubozo
IrregularPulse is offline

Reply With Quote Quick reply to this message
Old 07-08-2009, 09:22 PM   #9
weizen
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2008
Location: Central Va
Posts: 79
Default

Quote:
Originally Posted by IrregularPulse View Post
You couldn't find a glue good enough for your approval on PVC? Did you try PVC Cement The stuff made for joining PVC?
I actually work with the stuff every day....hrrr PVC glue is made to glue actual pvc joints together with various couplings not too itself with out a coupling for the nice clean finish that I will accomplish with the metal.
__________________
weizen is offline

Reply With Quote Quick reply to this message
Old 07-08-2009, 09:24 PM   #10
weizen
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2008
Location: Central Va
Posts: 79
Default

Quote:
Originally Posted by Ender View Post
This is a damn good idea. What did you use for the bottom of the 3" tail to screw it onto the kegerator?
It fits very tightly over a 3" PVC toilet flange that will be hidden under the top. I have a broken one holding it in the picture just not slid all the way down.
__________________
weizen is offline
