Default Direct Fire RIMS Draft -- Input Sought

So this is a mock up of what I am intending to do. I plan to make the weldless brew stand and make it a manual direct fire RIMS until I decide to upgrade and automate it some.

I plan to take the burners off my twin burner range stove. I also plan to use the burner from my turkey fryer. I also figure one pump is enough as I will utilize two hoses and switch them to whatever fittings are needed during any given stage of the brewing process.

Here is the plan.

Pump water into HLT and get to strike temp.
Pump required volume into MLT and dough in.
Begin recirculation.
Continue heating HLT to attain sparge temp.
After mash pump runnings from MLT to BK.
Fire up BK.
Add sparge water to MLT and
Recirculate.
Add 2nd runnings to BK.
Boil.
Whirlpool.
Once whirlpooled and rested. begin cooling with plate chiller to pitch temp.

I plan to use my current IC as a prechiller in ice water in conjunction with the plate chiller.

I am also considering adding a temp probe to the return water fitting on the MLT to monitor recirculating water temp.

Any input will be greatly appreciated!

__________________

_______________________________________________
On Deck: Cream Ale and Blue Moon clone for MIL

Primary: Hopped Up Brown

Bottled: Litehaus Wheat, Orange APA, Rauchbier, Willy's Cream Stout

Kegged: Tank 7 Clone renamed "Le Ferme" (dryhopped cascade, sorachi), Caramel Amber Ale, Trout Bum APA, 3 Dogs APA


Gallons Brewed Since June: 53.5
_______________________________________________
I seriously cannot imagine a day or life without beer!

ozzy1038 is offline

Reply With Quote Quick reply to this message
Old 10-12-2011, 04:11 AM   #2
Mpez
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Location: Salt Lake City
Posts: 153
Liked 3 Times on 3 Posts
Likes Given: 1

Default

Your plan is fine.

Your proposed set up is basically the same as what I have been running for the past year. Temp monitoring going back into the MLT is a nice to have, but not needed. You really need to know what the temp of the liquid is coming out of the MLT... If you keep the temp coming out on target, the rest of the mash is never going to exceed that.

Now the reality of the manual direct fired system is you will most likely have some swings in temperature. It is very hard to focus on burner on/burner off for 60 minutes. You turn your back to do some other quick task and all of the sudden your at 155 instead of 150.

I went ahead and added a solenoid to my MLT burner and it was a great investment. I am never more than + or - 1 degree of target and I can attend to other things.

That being said, what are your plans for the piping and connections on your system?

__________________
Mpez is offline

Reply With Quote Quick reply to this message
Old 10-12-2011, 04:30 AM   #3
ozzy1038
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2011
Posts: 387
Liked 10 Times on 10 Posts
Likes Given: 1

Default

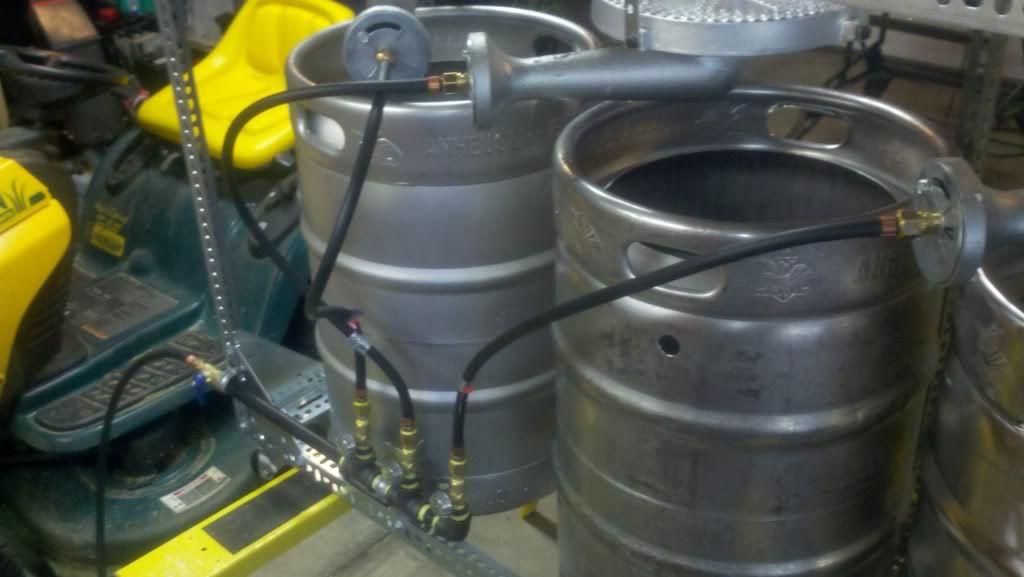

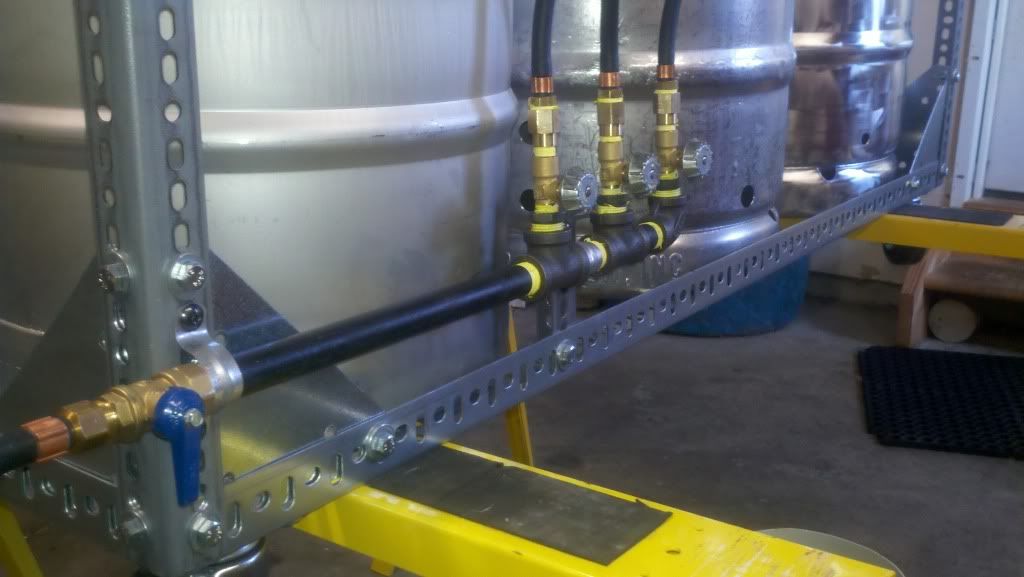

I plan to run the gas like dannedry did.





As for liquid line I will use silicone with quick disconnects to transfer/recirculate/whirlpool.

I have given thought to adding a solenoid to the MLT burner. The nice thing is that I always can.

__________________

_______________________________________________
On Deck: Cream Ale and Blue Moon clone for MIL

Primary: Hopped Up Brown

Bottled: Litehaus Wheat, Orange APA, Rauchbier, Willy's Cream Stout

Kegged: Tank 7 Clone renamed "Le Ferme" (dryhopped cascade, sorachi), Caramel Amber Ale, Trout Bum APA, 3 Dogs APA


Gallons Brewed Since June: 53.5
_______________________________________________
I seriously cannot imagine a day or life without beer!

ozzy1038 is offline

Reply With Quote Quick reply to this message
Old 10-12-2011, 04:49 AM   #4
Mpez
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Location: Salt Lake City
Posts: 153
Liked 3 Times on 3 Posts
Likes Given: 1

Default

Everything looks solid. Your system will be great, and it will make your brewing much more enjoyable.

Manual control is fine, I went for quite a while without the solenoid. But since I added it, I can't imagine going back.

Good luck

__________________
Mpez is offline

Reply With Quote Quick reply to this message
Old 10-12-2011, 10:41 AM   #5
RoadKing
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2005
Location: Bayville, N.J.
Posts: 453
Liked 16 Times on 14 Posts
Likes Given: 1

Default

My set up is similar and it's nice to upgrade as you go.
Why pump water into hlt, then to mlt? I just heat up water needed in mlt to strike Temp. and dough in there, then just heat sparge water in mlt once.
Also some type of insulation on the mlt will help keep temps there stable.

__________________
DIRTY GARAGE BREWING CO.
RoadKing is offline

Reply With Quote Quick reply to this message
Old 10-12-2011, 01:14 PM   #6
ozzy1038
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2011
Posts: 387
Liked 10 Times on 10 Posts
Likes Given: 1

Default

Quote:
Originally Posted by RoadKing View Post
My set up is similar and it's nice to upgrade as you go.
Why pump water into hlt, then to mlt? I just heat up water needed in mlt to strike Temp. and dough in there, then just heat sparge water in mlt once.
Also some type of insulation on the mlt will help keep temps there stable.
Good point. I plan to use reflectix for the MLT. I guess I planned to do it the way I posted as I haven't planned on putting in a sight glass on the MLT. My plan is/was to heat total volume needed for boil in HLT and remove needed amount using the sight glass.
__________________

_______________________________________________
On Deck: Cream Ale and Blue Moon clone for MIL

Primary: Hopped Up Brown

Bottled: Litehaus Wheat, Orange APA, Rauchbier, Willy's Cream Stout

Kegged: Tank 7 Clone renamed "Le Ferme" (dryhopped cascade, sorachi), Caramel Amber Ale, Trout Bum APA, 3 Dogs APA


Gallons Brewed Since June: 53.5
_______________________________________________
I seriously cannot imagine a day or life without beer!

ozzy1038 is offline

Reply With Quote Quick reply to this message
Old 10-12-2011, 01:53 PM   #7
HollisBrewCo
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Schenectady
Posts: 222
Liked 3 Times on 3 Posts
Likes Given: 7

Default

I would not go direct fire RIMS without some sort of automation. I cant imagine i would watch the mash closely enough for an hour without something going wrong. Also for awhile i was taking my temperature readings and running my automation at the output of the MLT but last brew i switched to a temperature probe put at the center of the grain bed, i still kept an eye on the output readings but ran my process from the center grain bed reading. I had been missing mash temperatures left and right before this but this time i was only off by about 1.5*F.
here is a good thread i started http://www.homebrewtalk.com/f51/rims...m-woes-273125/
A link to my system http://hollisbrewco.blogspot.com/201...wery-tour.html
and a link to the BCS automation system (there 2 options on the site, I reccomend a 462 because eventually this thing takes over your brewery, i run nearly everything with it) http://www.embeddedcc.com/index.php/...0t5d16uvs0uuu4
