Default Cowbrau eBIAB brewery build

I literally haven't brewed in the 2 years since we moved into this old house. Any work has been done on the secret hidden mancave (See build thread here ) or on the 1000 different things needing done on a 130 year old house.

My plan was a single tier electric set up in the basement. Because of space and getting jazzed over reading about BIAB brewing, I scaled it back to an eBIAB build.

The basement is a typical old limestone foundation space. I first started by sealing and painting the walls and floors:


Blue floor and clean white walls.

The brew area is an alcove with a window, next to easily accesible water lines and a floor drain. I tore out all of that dangly plumbing:



Because it's an old house the ceiling is bristling with pipe (probably wrapped in asbestos), duct and a mishmash of wiring. The easiest thing to do was to use 2x4 firring, even though that will lower the ceiling to about 6 foot 8.

Today I ran the 220 line (my brewmation control panel has a built in GFCI) and the lines for the vents and pump outlet. You can see them over on the far back and right walls.


I also ran several lengths of copper for my tub sink. I went with ball valves up high to use with RV hoses. Yep, my brewery is right next to the bathroom:


To end the day I wired and hung two bathroom vents. Last week I spent an hour going through 2 masonry bits boring through the rock foundation to install a vent. The blood on the beam indicates how sharp those vents are:


Verified that the plumbing didn't leak and that the electrical worked and called it a day. Left to do is install the ceiling (with a rope ratchet pully install as well), hang cement board and drywall, paint, build a brew stand, and test the ekeggle. I've got 200 pounds of grain and several pounds of hops crying to fill the empty 4 tap keezer.


Hopefully next weekend I'l be able to update with a finished build!



__________________
Primary: EKG Ale
Secondary:
What's a secondary??
Kegged/bottled: Cowbrau Heifer Weizen, Kolsch, House Ale
Commercial Brews in Fridge: Nothing! Finally got the pipeline filled.
Past HB Favorites: Dead Dog Barley Wine (She was a good dog)
Up Next: Faux Urquell Blond Ale and Irish Red


Secret Hidden Mancave Build (x2) Thread Cowbrau eBIAB Brewspace Build Thread
cowgo is offline

Reply With Quote Quick reply to this message
Old 01-29-2012, 10:39 PM   #2
cowgo
Feedback Score: 0 reviews

cowgo's Avatar
Recipes

Join Date: Nov 2007
Location: Kansas
Posts: 634
Liked 5 Times on 4 Posts
Likes Given: 1

Default

The basement was a bit too dark so I installed a couple more ceiling lights, those along with the fan light really brightens up the space.

Still have to install and plumb the tub sink, but that's just a matter of cutting pvc to fit down into a floor drain. Spent today building the brewstand, installing a couple lights, putting a ceiling in the bathroom so my daughters don't go, ewww gross, spider webs, and hanging my Brewmation controls.

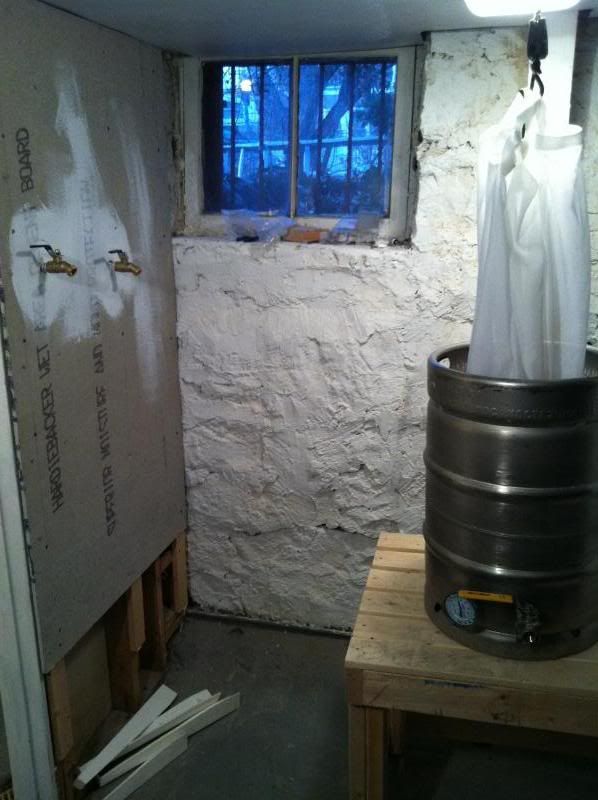

Here's the set up. Above are two vent fans, one with a light:


I think the ceiling is too low for the rope ratchet to be effective. Dang. I can make the stand shorter but I wanted to be able to gravity feed into the carboy. The electrical isn't too pretty, but it's safe and it works:


The tub sink will fit right next to the brewstand.



Should finish up everything this week and with any luck, brew the first batch this weekend! It'll be a wheat, all to be bottled and given to my buddy who helped with the build.



__________________
Primary: EKG Ale
Secondary:
What's a secondary??
Kegged/bottled: Cowbrau Heifer Weizen, Kolsch, House Ale
Commercial Brews in Fridge: Nothing! Finally got the pipeline filled.
Past HB Favorites: Dead Dog Barley Wine (She was a good dog)
Up Next: Faux Urquell Blond Ale and Irish Red


Secret Hidden Mancave Build (x2) Thread Cowbrau eBIAB Brewspace Build Thread
cowgo is offline

Reply With Quote Quick reply to this message
Old 01-29-2012, 11:41 PM   #3
fishkid
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Location: Clawson, MI
Posts: 323
Liked 1 Times on 1 Posts

Default

Awesome, love the build. Looks like it'll be a great space to brew in!

__________________
Twitter
fishkid is offline

Reply With Quote Quick reply to this message
Old 01-29-2012, 11:50 PM   #4
bloodonblood
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2011
Location: Houston, Texas
Posts: 102
Liked 2 Times on 2 Posts
Likes Given: 5

Default

Great build!

__________________
bloodonblood is offline

Reply With Quote Quick reply to this message
Old 02-11-2012, 07:15 PM   #5
Gabrew
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2008
Location: Montreal
Posts: 376
Liked 2 Times on 2 Posts
Likes Given: 3

Default

comming along great!!!

__________________
Gabrew is offline

Reply With Quote Quick reply to this message
Old 02-11-2012, 07:21 PM   #6
DeBord
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2011
Location: Seattle, Washington
Posts: 12
Default

just get rid of the turnbuckle on your pulley and make a slightly larger hole in the ceiling. That might get you the height you need.

__________________
DeBord is offline

Reply With Quote Quick reply to this message
Old 02-20-2012, 01:59 AM   #7
cowgo
Feedback Score: 0 reviews

cowgo's Avatar
Recipes

Join Date: Nov 2007
Location: Kansas
Posts: 634
Liked 5 Times on 4 Posts
Likes Given: 1

Default

After five brews on the new rig, condensation is an obvious problem. I thought two bath fans with 100 cfm would be sufficient, but I'm getting crazy drippage.

Here's the new solution: a cone hood with a 700 cfm hydroponic fan that sits over the keggle. It's about 2 inches larger in circumference than the keggel so if the odd drip does occur, it'll be outside the pot



The fan is mounted on the other side of the wall in the bathroom and vents directly outside. I wired it to a switch.



Another view:



It's not copper, just rustoleum over sheet metal. Can't wait to try it out next weekend. It's got a lot of suck, should work great. I can detach it for the mash, just unchain it and pull from the wall. I put plenty of sheet metal screws into for rigidity. The stand is on casters so I can just wheel it out a couple inches for hop additions.

__________________
Primary: EKG Ale
Secondary:
What's a secondary??
Kegged/bottled: Cowbrau Heifer Weizen, Kolsch, House Ale
Commercial Brews in Fridge: Nothing! Finally got the pipeline filled.
Past HB Favorites: Dead Dog Barley Wine (She was a good dog)
Up Next: Faux Urquell Blond Ale and Irish Red


Secret Hidden Mancave Build (x2) Thread Cowbrau eBIAB Brewspace Build Thread
cowgo is offline

Reply With Quote Quick reply to this message
Old 02-20-2012, 03:28 PM   #8
pvtschultz
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: West Allis (Milwaukee), WI, Wisconsin
Posts: 440
Liked 6 Times on 6 Posts
Likes Given: 13

Default

Did you buy or have someone make the cone?

Oh, and how has that keg coozie worked for you?

__________________
Brewing: BM's Centennial Blonde
Drinking: Brown Ale, Cherry Smoked Robust Porter (way too much smoke!)
On Deck: Dunkel, CAP, Berliner Weiss, Bock, Sour Raspberry Brown, APA...
2014 Gallons Brewed: 19
Gallons Brewed '11-'13: 250


http://www.homebrewtalk.com/f170/pvtschultzs-ebiab-build-finally-298407/
pvtschultz is offline

Reply With Quote Quick reply to this message
Old 02-20-2012, 03:46 PM   #9
kgalle
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: SEPA, PA
Posts: 240
Liked 4 Times on 4 Posts
Likes Given: 1

Default

Me, too.. Where did you get that cone?

Thanks.

__________________
kgalle is offline

Reply With Quote Quick reply to this message
Old 02-20-2012, 03:55 PM   #10
cowgo
Feedback Score: 0 reviews

cowgo's Avatar
Recipes

Join Date: Nov 2007
Location: Kansas
Posts: 634
Liked 5 Times on 4 Posts
Likes Given: 1

Default

Quote:
Originally Posted by pvtschultz
Did you buy or have someone make the cone?

Oh, and how has that keg coozie worked for you?
It was fabricated at a sheetmetal shop. Only 100 bucks, about in line with the cost of a stove hood. The fan was 120 though. Also had about 20 bucks in elbow fittings.

The keg koozie isnt working out for me, but i like the way it looks. Since it has a lot of elasticity yet to give i think I'll use it to hold some wool insulation in place and throw an electric blanket over the top of it all. If that doesn't hold temps i dont know what would.


__________________
Primary: EKG Ale
Secondary:
What's a secondary??
Kegged/bottled: Cowbrau Heifer Weizen, Kolsch, House Ale
Commercial Brews in Fridge: Nothing! Finally got the pipeline filled.
Past HB Favorites: Dead Dog Barley Wine (She was a good dog)
Up Next: Faux Urquell Blond Ale and Irish Red


Secret Hidden Mancave Build (x2) Thread Cowbrau eBIAB Brewspace Build Thread
cowgo is offline

Reply With Quote Quick reply to this message
