NikolausXX

Recipes

We rolled out 2 25 foot lengths and put in hose. Then catch the end in corney keg handle. Roll keg across floor and coil that way, 1 man operation! I will post pictures when I get my expensive camera back from shop, this sucks.

__________________
Primary- Jamils Pale ale with crystal
Kegged- Apfelwein (almost gone)
Ageing- Joam Mead

kmlavoy

Recipes

I was actually thinking about this sort of thing today. My question is this: what kind of hops are you guys using? How are you filtering the hops when you drain from the kettle?

I've been using an IC, with a braid in my kettle, but I've noticed that I'm getting some scorching in the area around the braid. It hasn't affected the taste of my beers yet, but I'm still looking to upgrade things.

__________________
lavoyboysbrewing.blogspot.com

TwoHeadsBrewing

Recipes

I'm using a Sanke keg for my boil kettle and it has a "Bazooka T-Screen" in the bottom. Works great as I use whole hops for most of my brews. When I DO use pellet hops I simply place them in a hop bag in the kettle. As far as scorching goes, my T-Screen is held up off the bottom of the kettle about 1cm. This is enough height to keep the wort and hops from getting trapped under the screen and scorching.

__________________

Fermenting: ESB
Kegged: Extra IPA, Brown Ale, American Wheat, Blackheart Stout
Coming Up: Dunkleweizen, 3C Pale Ale


DIY Fermentation Chamber
More Brew Stuff

argyle

Recipes

I may have missed this answer earlier BUT....

How do these things connect to the brew pot? I know my brew pot has a ball valve, but how does the copper tubing stay secured on end of ball valve?


Am I missing something?

Anthony_Lopez

Recipes

There are a few options. I think most people use a barb on the ball valve output and use some high-temp tubing to connect to the "wort in" side of the CFC... i think thats the easiest option and the most flexible...

__________________
I'd rather have a bottle in front of me, than a frontal lobotomy.
--Tom Waits

You can't be a real country unless you have a beer and an airline - it helps if you have some kind of a football team, or some nuclear weapons, but at the very least you need a beer.
--Frank Zappa

My Cheap and Easy Stirplate

Bobby_M

Vendor Ads

Recipes

I'd suggest using a set of quick disconnects but a hose barb would work.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

NikolausXX

Recipes

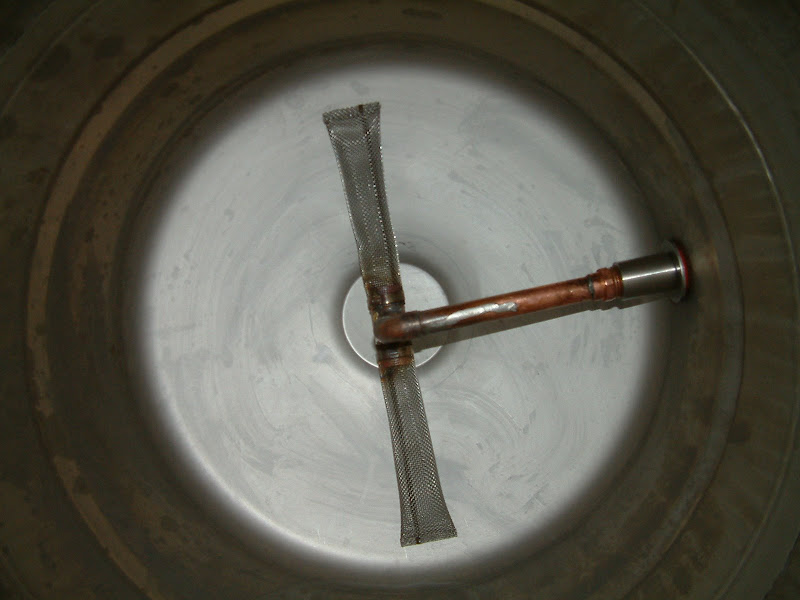

I made this manifold. Click around other photos to see the bottom with the holes. http://i388.photobucket.com/albums/oo329/Nikolausxx/img025.jpg With the chiller and gravity feed it will drain the kettle to the little ring at bottom. I hope this works, have only done test runs with water. I plan on using a hop sack, at least first run so that all I have to worry about clogging me is trub.

__________________
Primary- Jamils Pale ale with crystal
Kegged- Apfelwein (almost gone)
Ageing- Joam Mead

drunkatuw

Recipes

I got some 1/2"x1/4" reducers at Lowes, and they don't want to fit over the 3/8" soft copper tubing. I could probably force it, but I don't want to deform the soft copper.

Has anyone else had difficulty getting the soft copper to fit through the reducer?

__________________
On tap: BCB Robust Porter, Yellow Jacket Lager
Kegged: Moon Man clone
Primary:
Secondary:
On Deck:

TwoHeadsBrewing

Recipes

Yep, this is a known issue. There is a "stop" inside the reducer that you'll need to drill out with a 3/8" bit. It's still a tight fit, but if you lube up the soft copper tubing with flux it will go on with a little force.

__________________

Fermenting: ESB
Kegged: Extra IPA, Brown Ale, American Wheat, Blackheart Stout
Coming Up: Dunkleweizen, 3C Pale Ale


DIY Fermentation Chamber
More Brew Stuff

NikolausXX

Recipes

I had to drill mine out too. I did a lot of testing with water, to see if this will work with gravity. And if my homade hop strainer manifold works, it will! I will let you know, tomarow night im brewing a stout. Update, the manifold I made worked great with the chiller. I drilled 30 1/8 inch holes in it. I used a hop bag, had no issues with cloging of the manifold. The chiller worked great with my cold tap water about 1/2 open, chilled wort to about 66-68. Took it about 15 minutes to drain of 5.5 gallons gravity.

__________________
Primary- Jamils Pale ale with crystal
Kegged- Apfelwein (almost gone)
Ageing- Joam Mead
