Old 04-23-2008, 02:46 PM   #101
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,822
Liked 899 Times on 600 Posts
Likes Given: 26

Default

Quote:
Originally Posted by bigben
I have a 50' 1/2" IC that I have been considering converting. How hard would it be to convert this??

Would I need to get 3/4" hose? Is 1/2" Copper tubing too big for a CFC? Also, would I have to straighten out the copper before slipping the hose on?

Thanks.
I'd consider selling that IC and making a CFC from scratch. You will have to straighten the coil first and it's likely already too stiff from the slight bending it's already been through. 3/8" x 20-25' is ideal in my opinion but I'm sure the 1/2" would be fine with 3/4" hose. You'll need to upgrade the end TEEs to 3/4" also and the reducers would be 3/4" to 3/8" if they have them.
__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is online now

Reply With Quote Quick reply to this message
Old 04-23-2008, 03:49 PM   #102
bigben
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2006
Location: My House
Posts: 522
Default

ok....anyone wanna build me a 25' CFC and trade a 50' IC?

__________________
bigben is offline

Reply With Quote Quick reply to this message
Old 04-25-2008, 11:57 AM   #103
sigmund
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2008
Posts: 416
Liked 4 Times on 4 Posts

Default

Quote:
Originally Posted by bigben
ok....anyone wanna build me a 25' CFC and trade a 50' IC?

You can straighten the IC you have. I just converted a 25' IC to a CFC with no issues. I did have to cut the bends out and could only use the coils, but I had no problems straightening out the coils or wrapping the CFC when I was done.
__________________
sigmund is offline

Reply With Quote Quick reply to this message
Old 04-25-2008, 11:59 AM   #104
bigben
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2006
Location: My House
Posts: 522
Default

Yea, I dove in. I cut mine last night.

The only issue with mine is that it's 1/2" copper tubing...not 3/8" like everyone uses. So I will probably make it at least 30 feet...or maybe the whole 50', since more wort will be flowing through at any given time. Not sure yet. And I will have to find the proper fittings.

I have also thought about making a hybrid chiller. I just have to coil the tubing up very tightly and I'm not sure I can do it without messing up the tubing.... How big of a diameter can you get PVC Pipe and end caps in?

__________________
bigben is offline

Reply With Quote Quick reply to this message
Old 04-28-2008, 11:40 AM   #105
sigmund
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2008
Posts: 416
Liked 4 Times on 4 Posts

Default

I put my converted IC to CFC into service this past weekend and it worked better than I could have imagined. My tap water (well) is still nice and cool and I was able to throttle back the flow of my cooling water to a trickle and still came out with wort at about 70* using gravity feed. Me like.

__________________
sigmund is offline

Reply With Quote Quick reply to this message
Old 04-28-2008, 01:22 PM   #106
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,822
Liked 899 Times on 600 Posts
Likes Given: 26

Default

You don't want to try getting 1/2" into a diameter smaller than about 6" and PVC larger than that is really hard to come by cheaply. Why not use 3/4" vinyl tubing as the outer jacket for a CFC?

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is online now

Reply With Quote Quick reply to this message
Old 04-28-2008, 03:50 PM   #107
bigben
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2006
Location: My House
Posts: 522
Default

Quote:
Originally Posted by Bobby_M
You don't want to try getting 1/2" into a diameter smaller than about 6" and PVC larger than that is really hard to come by cheaply. Why not use 3/4" vinyl tubing as the outer jacket for a CFC?
I may do that bobby, but then I have the task of straightening out this huge coil.

If I did a CFC with 1/2" OD Inner tubing tho, would it need to be longer than a CFC made with 3/8" OD Inner tubing? Or would the larger amount of cooling water negate the presence of more hot wort? This is assuming that I don't have any flow control on the CFC output, and the wort is flowing as fast as it can.

One more thing...I would need 3/4" ID tubing right?
__________________

Last edited by bigben; 04-28-2008 at 08:40 PM.
bigben is offline

Reply With Quote Quick reply to this message
Old 04-28-2008, 07:44 PM   #108
Anthony_Lopez
Feedback Score: 0 reviews

Anthony_Lopez's Avatar
Recipes

Join Date: Mar 2008
Location: Groton, MA
Posts: 1,694
Liked 17 Times on 8 Posts
Likes Given: 2

Default

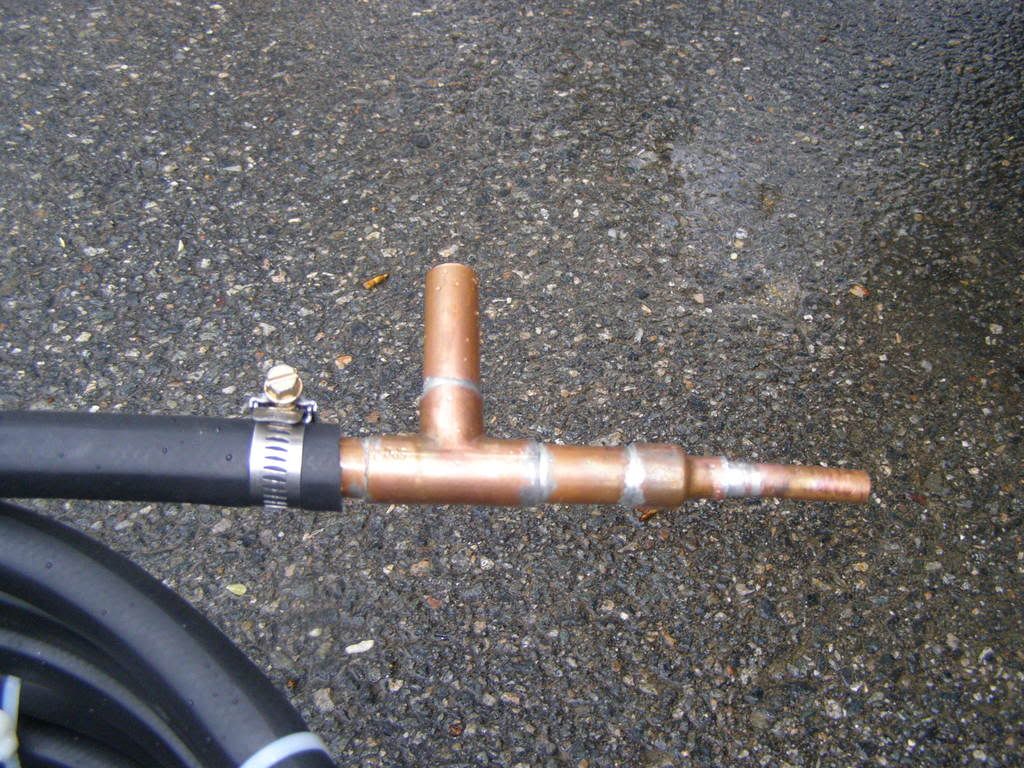

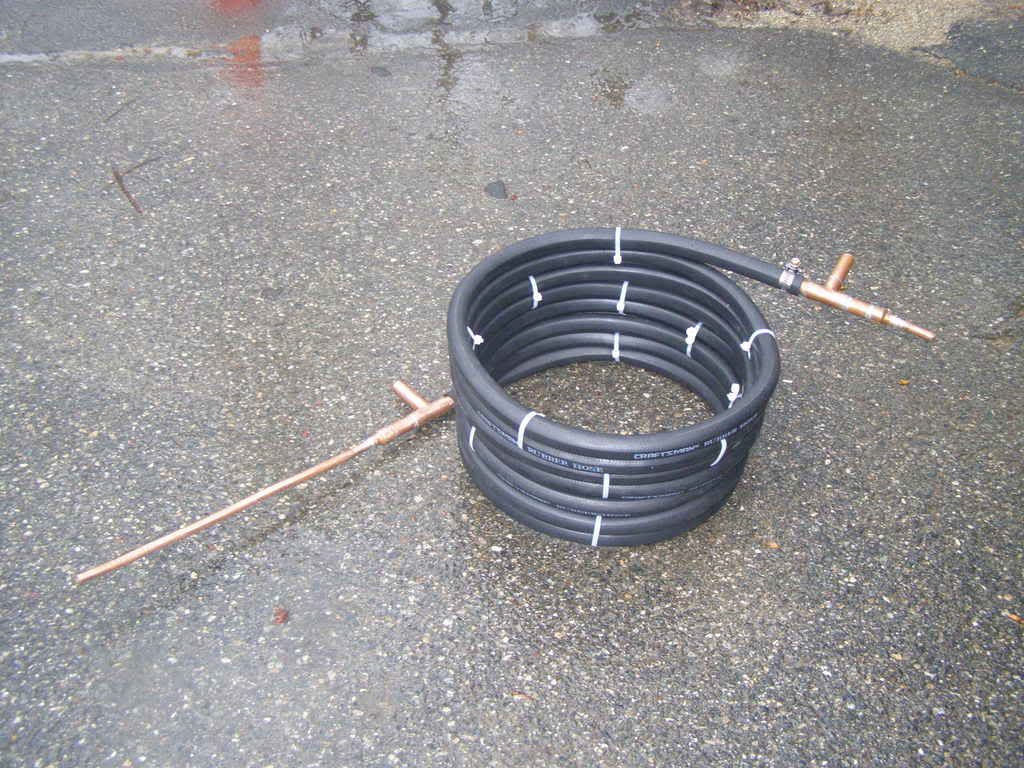

I found the reducers for my second CFC at a different Lowes...



__________________

I'd rather have a bottle in front of me, than a frontal lobotomy.
--Tom Waits

You can't be a real country unless you have a beer and an airline - it helps if you have some kind of a football team, or some nuclear weapons, but at the very least you need a beer.
--Frank Zappa

My Cheap and Easy Stirplate

Anthony_Lopez is offline

Reply With Quote Quick reply to this message
Old 04-28-2008, 08:38 PM   #109
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,822
Liked 899 Times on 600 Posts
Likes Given: 26

Default

Is very niiiice.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is online now

Reply With Quote Quick reply to this message
Old 04-29-2008, 11:48 AM   #110
bigben
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2006
Location: My House
Posts: 522
Default

Well, after all my 'hybrid' chiller talk...I think I'm just gonna make a CFC with my 1/2" IC. I already starting unrolling it. It seems pretty easy to straighten it out.

I'll probably go with the Cheyco method tho, and not use solder, cuz Im a noob. Also I guess I will try 3/4" ID Tubing for the outer hose.

__________________
bigben is offline

Reply With Quote Quick reply to this message
