Default Counter pressure Bottling station

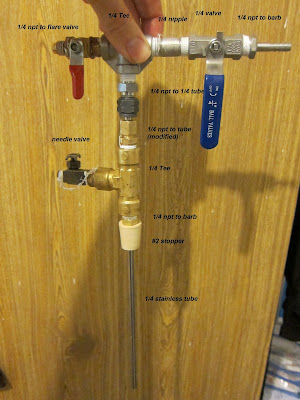

That's a concept version of my bottling station.


The bottle filler is pretty standard. most parts which in contact with the beer are stainless, execpt the co2 ball valve on the left.
The needle valve was replaced with adjustable pressure relief valve.




I've mount it on a piece of wood with spring lag, so it will hold the bottle while filling.
