Default Copper tubing in a kegerator?

I just converted a kegerator and want to keep the beer lines cool in the draft tower. I'm going to connect the PC fan into the tower, with a hose.

So does that mean I don't need to buy PVC pipe for the inside of the tower, and I know some people buy copper tubing as well that goes over the beer lines. Is that just overkill to do all three?



__________________
spaceyaquarius is offline

Reply With Quote Quick reply to this message
Old 01-22-2014, 02:15 AM   #2
day_trippr
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Stow, MA
Posts: 8,398
Liked 811 Times on 673 Posts

Default

PVC is a rather crappy insulator, if that was the intended use. Lining the tower column with 1/4" foam sheet or neoprene would be much more effective if you have the room.

I run a tower cooler fan (40mm fan blowing through 1" ID thick wall vinyl tubing) with six beer lines tie wrapped alongside. No copper used or needed - that's really more of a passive solution that's obviated with an active cooling solution...

Cheers!



__________________
day_trippr is offline

Reply With Quote Quick reply to this message
Old 01-22-2014, 04:02 AM   #3
Hovik
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Claremont, California
Posts: 58
Likes Given: 2

Default

Quote:
Originally Posted by spaceyaquarius View Post
I just converted a kegerator and want to keep the beer lines cool in the draft tower. I'm going to connect the PC fan into the tower, with a hose.

So does that mean I don't need to buy PVC pipe for the inside of the tower, and I know some people buy copper tubing as well that goes over the beer lines. Is that just overkill to do all three?

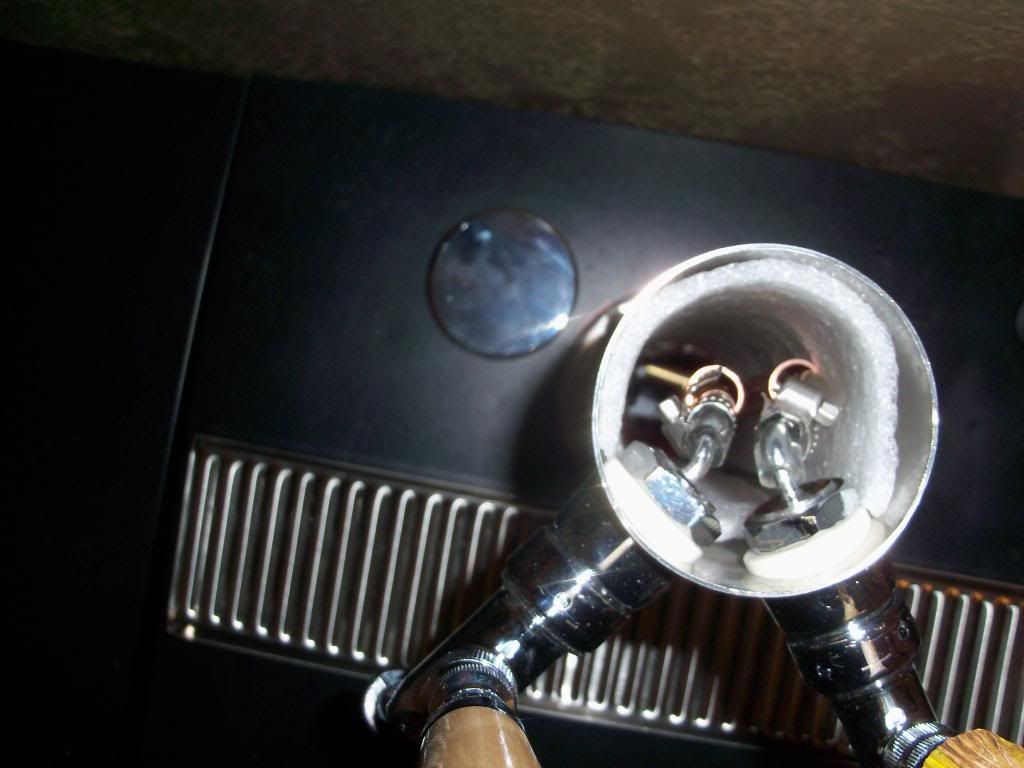

I built a kegerator this past summer and went with a passive cooling setup that I adapted from one I saw here on HBT and am very happy with it. No humming, loss of space or power consumption from a fan. Just good old copper piping and my first pour is always cold and delicious... Here are the photos from it:
http://www.homebrewtalk.com/f35/kegerator-build-igloo-4-6-fr465-haier-hnse05-kenmore-183-94679-possibly-others-364119/index7.html#post5440306

Something to consider before going the fan route...
__________________
Coyote Moon Brewery
"When the last tree has been cut down, the last fish caught, the last river poisoned, only then will we realize that one cannot eat money." - Native American Saying.
Hovik is offline

Reply With Quote Quick reply to this message
Old 01-22-2014, 04:45 AM   #4
robb884
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2013
Posts: 4
Likes Given: 1

Default

I too also did the copper tubing and only use that. Ever pour is cold and not foamy. No need for fans

__________________
robb884 is offline

Reply With Quote Quick reply to this message
Old 01-22-2014, 05:21 AM   #5
spaceyaquarius
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2013
Location: Oklahoma City, OK
Posts: 393
Liked 8 Times on 8 Posts
Likes Given: 61

Default

Quote:
Originally Posted by Hovik View Post
I built a kegerator this past summer and went with a passive cooling setup that I adapted from one I saw here on HBT and am very happy with it. No humming, loss of space or power consumption from a fan. Just good old copper piping and my first pour is always cold and delicious... Here are the photos from it:
http://www.homebrewtalk.com/f35/kegerator-build-igloo-4-6-fr465-haier-hnse05-kenmore-183-94679-possibly-others-364119/index7.html#post5440306

Something to consider before going the fan route...
So, your copper tubing is not housing the beer lines at all? It just runs up into the tap tower? Interesting. Looks like a lot of bent tubing though.Hmmm.
__________________
spaceyaquarius is offline

Reply With Quote Quick reply to this message
Old 01-22-2014, 05:27 AM   #6
day_trippr
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Stow, MA
Posts: 8,398
Liked 811 Times on 673 Posts

Default

Quote:
Originally Posted by spaceyaquarius View Post
So, your copper tubing is not housing the beer lines at all? It just runs up into the tap tower? Interesting. Looks like a lot of bent tubing though.Hmmm.
Look again: he has his two beer lines running through copper, plus he added a couple of copper "radiators" to those same two tubes - the two runs with all the fittings to get them out of the way...

Cheers!
__________________
day_trippr is offline

Reply With Quote Quick reply to this message
Old 01-22-2014, 05:31 AM   #7
spaceyaquarius
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2013
Location: Oklahoma City, OK
Posts: 393
Liked 8 Times on 8 Posts
Likes Given: 61

Default

Doh! Now I see.

Thanks. It may be time to go to the hardware store...

__________________
spaceyaquarius is offline

Reply With Quote Quick reply to this message
Old 01-22-2014, 05:50 AM   #8
day_trippr
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Stow, MA
Posts: 8,398
Liked 811 Times on 673 Posts

Default

Fwiw, the copper works pretty well for a tower with column mounted faucets as you can carry the copper almost the entire way to the 90° tail pieces.

Doesn't work so great for a big ol' t-type tower like I have. There's a lot of volume to keep cool and tubing fanning out left and right up in the t to get to all the taps that would be improbable at best to encase in Cu.

I tried running copper up the column to the base of the t where the tubing breaks out and first pours were iffy in the summer as the top of the tower and the faucets all warmed up. Otoh, with the active cooling and plenty of insulation I'll actually get condensation on the faucets in the height of summer and the pours are nearly as good as the dead of winter. That didn't happen with the copper, hence the blower. It only pulls around 80ma, and my Kill-O-Watt says the 13cf keezer and the three fans within only cost 10 cents a day to run. I'm good with that

Cheers!

__________________
day_trippr is offline

Reply With Quote Quick reply to this message
Old 02-01-2014, 08:04 AM   #9
spaceyaquarius
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2013
Location: Oklahoma City, OK
Posts: 393
Liked 8 Times on 8 Posts
Likes Given: 61

Default

Great! Two feet of 1/2" inner diameter copper tubing at Home Depot is $4 and they will cut it in half for you. I didn't attach the tubing to anything, just ran the 2 tubes into the 2-tap draft tower. Next time, I may buy two 14" or even 15" tubes instead of 12" tubes because there's plenty of room over that back shelf for the copper tubes to come down just a little bit more and transfer more cool temperatures into the draft tower.

Without my PC fan on, the draft tower is cool to the touch on the outside for the 1st time. Of course, it's still winter so I may still need that PC fan when it gets warmer.



__________________
spaceyaquarius is offline

Reply With Quote Quick reply to this message
Old 02-01-2014, 08:09 AM   #10
spaceyaquarius
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2013
Location: Oklahoma City, OK
Posts: 393
Liked 8 Times on 8 Posts
Likes Given: 61

Default

THANKS HOVIC!!!

I've just added the passive cooling method mentioned above tonight. Seems to work great with no fan. My Danby 440BL needed 12" for the draft tower, 7.5" for the fridge ceiling, and then 10" down the wall of the fridge (and of course four 90 degree copper elbows. The whole thing cost less than $10 from Home Depot if you buy the long 1/2" outer diameter copper tubing and cut it yourself.








What do you guys think about filling up the rest of the tower with those styrofoam things that come in shipped boxes? Would that help to insulate the draft tower, or would it restrict air flow into the tower (no PC fan). I'm thinking the styrofoam would help.
