Default Cooler Mash Tun

Hey I'm thinking of going all grain and want to build my first mash tun out of a cooler. From what I've read 10gallon is the way to go to do 5 gallon batches of beer. How do you seal where to pipe comes through the cooler to connect to the valve? Does it have to be food service grade or can you skimp on this since it's pre-boil?

Thanks,
Mike

__________________
Seeves1982 is offline

Reply With Quote Quick reply to this message
Old 07-15-2009, 08:30 PM   #2
freddyb
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2008
Posts: 214
Liked 7 Times on 7 Posts

Default

http://www.homebrewtalk.com/f51/cheap-easy-10-gallon-rubbermaid-mlt-conversion-23008/
__________________
freddyb is offline

Reply With Quote Quick reply to this message
Old 07-15-2009, 08:36 PM   #3
Munsoned
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: DC Metro
Posts: 642
Liked 1 Times on 1 Posts

Default

An alternative design:

http://www.homebrewtalk.com/f11/no-leak-mlt-bulkhead-design-87197/

__________________

___________________________
“While the rest of the species is descended from apes, redheads are descended from cats.” - Mark Twain

Munsoned is offline

Reply With Quote Quick reply to this message
Old 07-15-2009, 09:14 PM   #4
Seeves1982
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2009
Location: Follansbee, WV
Posts: 46
Default

I'm looking for a manifold type design. I think I got if fingered out. I'm not sure how the manifold connects to the pipe and valve. That doesn't necessarily need to be a sealed connection though does it? As long as it doesn't come appart and the vaccuum from the liquid should hold it together shouldn't it?

Thanks,
Mike

__________________
Seeves1982 is offline

Reply With Quote Quick reply to this message
Old 07-15-2009, 10:06 PM   #5
Munsoned
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: DC Metro
Posts: 642
Liked 1 Times on 1 Posts

Default

I don't have a manifold, but my understanding is that you want to be able to take it out of the MLT for cleaning purposes (i.e., it should not be permanently soldered to the pipe and valve). I think Palmer's book or website had a discussion on mash tun manifolds. I also seem to think that he or someone else suggested soldering some of the copper parts used to make the manifold together (to lessen the chance of separation during the mash), but to keep other parts unsoldered, again, for ease of cleaning/storage.

__________________

___________________________
“While the rest of the species is descended from apes, redheads are descended from cats.” - Mark Twain

Munsoned is offline

Reply With Quote Quick reply to this message
Old 07-15-2009, 10:08 PM   #6
Munsoned
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: DC Metro
Posts: 642
Liked 1 Times on 1 Posts

Default

Here it is:

How to Brew - By John Palmer - Building the Manifold

__________________

___________________________
“While the rest of the species is descended from apes, redheads are descended from cats.” - Mark Twain

Munsoned is offline

Reply With Quote Quick reply to this message
Old 07-15-2009, 10:52 PM   #7
Rick500
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: KY
Posts: 2,617
Liked 9 Times on 7 Posts
Likes Given: 1

Default

Here's how I did it. 82% efficiency on first use.

It's made of CPVC, and just friction fitted together. I cut the slots with a Dremel cutoff wheel.



The second pic shows it in place.

I tried to make it the optimal diameter (volume inside ring = volume outside ring). It's a bit larger in diameter than I intended, but it's close enough.

There are no slots in the crossbars so that all the liquid is drawn, hopefully, in equal amounts from inside and outside the octagon.

If I were to make it again, I would not cut slots through the 45s and tees...unnecessary, and would encourage more flow further around the octagon from the crossbars.

In any case, I batch sparge so it's really not critical.

Only drawback is that it's kind of a pain to clean. Grain gets stuck in the slots. A soak in Oxi-clean would probably take care of it I guess.

Cost about $5 to make.

__________________

Last edited by Rick500; 07-15-2009 at 11:02 PM.
Rick500 is offline

Reply With Quote Quick reply to this message
Old 07-16-2009, 01:38 AM   #8
Seeves1982
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2009
Location: Follansbee, WV
Posts: 46
Default

That's what I want. How do you connect it to the pipe and valve. Does the PVC thread on or is it a barbed fitting?

__________________
Seeves1982 is offline

Reply With Quote Quick reply to this message
Old 07-16-2009, 01:56 AM   #9
Rick500
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: KY
Posts: 2,617
Liked 9 Times on 7 Posts
Likes Given: 1

Default

If you look at the parts list in the "Cheap & Easy 10 Gallon Rubbermaid MLT Conversion" thread linked a few posts up, you'll see that the part that's the connector on the inside of the MLT in FlyGuy's design is a 3/8” male barb adapter (Watts A-294). Pic below (borrowed from FlyGuy's thread):

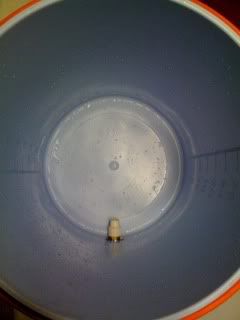

The plastic fitting you see on the inside wall of my MLT...

...is a CPVC female 3/8" threaded to 1/2" CPVC female socket end fitting. It screws on to the brass ball valve fitting and the horizontal CPVC coming off the manifold just pushes into it. It replaces the 3/8" male barb adapter in FlyGuy's design. Other than that, I followed FlyGuy's design as posted.

So to build a manifold like the one I did, you need:
(8) 1/2" CPVC 45 degree elbows
(3) 1/2" CPVC tees
(1) 3/8" CPVC FIP ADAPTER (female 3/8" threaded to female 1/2" socket end)
(1) 1/2" CPVC 90 degree elbow
(1) 1/2" CPVC 90 degree "street elbow" (same as the other 90 elbow but one end fits *inside* the center tee)
(1) 5-foot length of 1/2" CPVC pipe (a 10-footer costs about 70 cents more...worth it in case you need practice)

__________________

Last edited by Rick500; 07-16-2009 at 02:18 AM.
Rick500 is offline

Reply With Quote Quick reply to this message
Old 06-11-2012, 10:19 PM   #10
DougQ
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2012
Location: Military, U.S.A.F/ Rota, Spain
Posts: 23
Default

Looks great!
