Hi folks,

Following a number of great threads I thought I might as well put my ideas and plans on here for comment/criticism/wonderful praise.

Excuse the metric but being Aussie I have little grasp on imperial measures

I've done quite a few brews using the old set up of two 20L pots which are used as the HLT and kettle, mashing in a rectangular 55L esky (cooler) which was lined with swiss voile material instead of a manifold or false bottom. Having to drain the mash and split it between two pots and then sitting one on the bbq the other on a 3-ring burner. Then syphoning to a cube for no chill was a lot of work and had inconsistent results (mainly due to me trying to rush). So now I'm in a new place with enough space to have a rig it's time to get something proper.

Plan is for a single tier, 3 vessel system with HERMS to be able to do single (20L) and double batches (40L). I've got three 50L kegs which I'll chop and some square hollow section which will be welded for the frame.

HLT - electric element for heating controlled by this with the help of a pt100 probe and SSR. Element size hasn't been finalised as I'm waiting to find out adding 15A circuits in the shed. Will either be 2.4kW or 3.2kW.

MLT - 12" false bottom, recirc through HERMS with an adjustable mash return (probably a 4 spout return).

HERMS - 7.6L pot with butchered kettle element controlled by this with the help of a pt100 probe and SSR. 12.7mm OD copper tube coiled and as much length as I can fit in there.

Keggle - 3-ring burner with adjustable MP reg - manual control. Not sure if I want to go for a false bottom or a bent pick up to the side and whirlpool. Bent pick up is much cheaper.

Pumping - march pump. Single head pump will be batch sparge only, but if I go for the dual head I could fly sparge. Still waiting to find out the difference in price from a local supplier and that will most likely be a deciding factor.

Still thinking about the valving arrangement to work out how many valves I'll need to buy - especially for the manifold around the inlet and outlet of the pump.

Will post pics as and when things happen - unfortunately time is a problem (stupid work takes up too much time).

Cheers
-cdbrown

__________________
Browntown Brewery
On tap - Eurona 6.4%, Ordinary Bitter 4.1%
In the keezer - Ginga Minga 5.7%, Dat's Foightin' Coider 4.7%, Tripel the Fun 8.3%
Bottles - Toucan Sam
Brewery - Single tier 3v Herms rig being designed, bar being designed
cdbrown is offline

Reply With Quote Quick reply to this message
Old 05-28-2010, 01:20 AM   #2
cdbrown
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2009
Location: Perth
Posts: 14
Default

Recieved the first package from auberins yesterday. PID, 2xSSRs and a heatsink. Man the heatsink is huge. Very impressed with the turn around on the goods - ordered it on Thursday last week and made it's way from the US to Aus to arrive at my door in 7 days. Can't seem to buy locally off the net and get goods shipped in that time. Here's the pics


They even put down that it was a gift valued at $11 to clear customs. Hopefully the other package arrives today with the ramp/soak PID and the PT100 probes.

Cheers
-cdbrown

__________________
Browntown Brewery
On tap - Eurona 6.4%, Ordinary Bitter 4.1%
In the keezer - Ginga Minga 5.7%, Dat's Foightin' Coider 4.7%, Tripel the Fun 8.3%
Bottles - Toucan Sam
Brewery - Single tier 3v Herms rig being designed, bar being designed

Last edited by cdbrown; 05-28-2010 at 01:30 AM.
cdbrown is offline

Reply With Quote Quick reply to this message
Old 05-28-2010, 01:59 AM   #3
Maltose
Feedback Score: 0 reviews
Recipes

Join Date: May 2010
Location: Frederick, MD
Posts: 470
Liked 2 Times on 2 Posts
Likes Given: 1

Default

good luck on your rig! looks like you've got a good plan so far

__________________
Maltose is offline

Reply With Quote Quick reply to this message
Old 06-02-2010, 03:48 AM   #4
cdbrown
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2009
Location: Perth
Posts: 14
Default

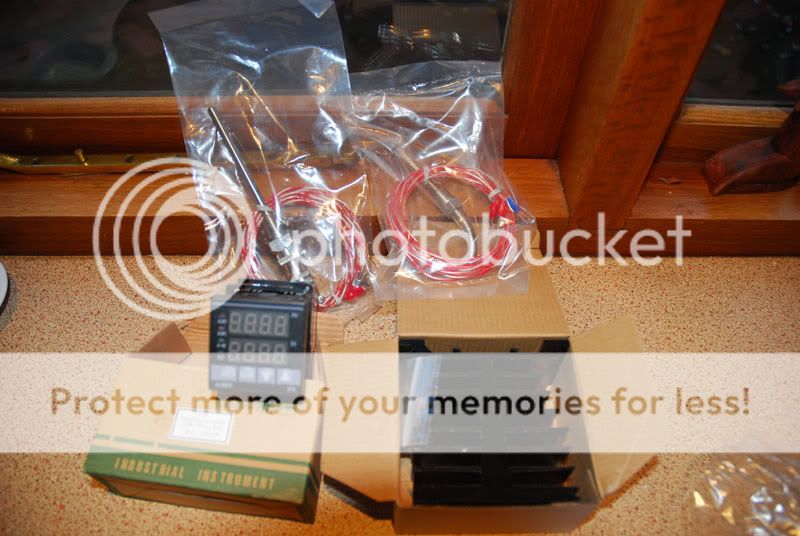

A little update - the 2nd package from Auberins arrived last night. Opened it up to find the PID, heat sink and the 2 PT100 temp probes. Didn't realise how thick the probes are.
