Default brewkart + ditches + countertop brutus = this

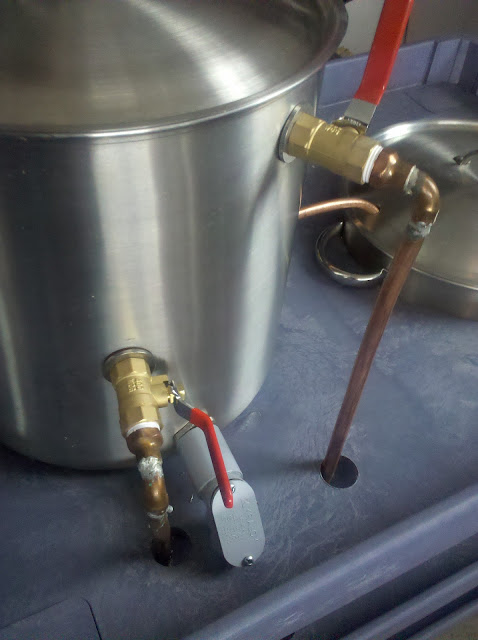

Long story short this is a cart mounted all electric automated recirculating mash setup. There is a control panel just like brewkart has on the RH side you can't really see. Everything is hard plumbed and it only uses one pump, requires no pulling or reconnecting of any lines. It is very clean and easy to use. If you time from taking it out to putting it away it takes me about 4-5 hours to complete a 6 gallon batch. The setup does everything from the mash to the boil to cooling my wort. Cools my wort down to 80 degrees in about 15 minutes. To keep things easy to clean I have screens over both kettle drains and I use bags for everything (grains, hops, additions, etc). You can see this in the 2nd picture. You can also see the heat exchanger coil. The element is buried in there underneath a stainless screen to make sure the bags never contact it. That picture is what it looks like after I've cooled and drained to my fermenter. I've been using this for a few months and have made a dozen or so beers. Took me about a week to make it and it was pretty darn affordable. I love it. In case you care, it has been named Attobrew.

Basic brewday is as follows, I'm sure I'll miss something but you get the idea;
1. Take out setup, fill boil kettle with light starsan solution and recirculate for 10-15 minutes and drain (clear tubes on bottom of kettles)
2. Fill boil kettle with clean water and heat it up, recirculat for 10-15 minutes and drain
3. Fill boil kettle with brewing water, set PID, and heat to mash temp
4. Crush grains, put in bag, put in mash kettle (on left)
5. Drain some of the heated water into mash kettle and recirc via pump (water is kept at temp via boil kettle heat exchanger)
6. Mash for X time and X degrees or steps, then turn valve to transfer to boil kettle
7. Set PID to boil, once boiling complete your boil
8. Fill mash kettle with ice and top off with water
9. Turn on pump and recirc ice water to chill wort
10. Pull off clear tube and sanitize in starsan solution
11. Put clear tube back on brew kettle and drain wort into fermenter.
12. Clean system







__________________

resslerk is offline

Reply With Quote Quick reply to this message
Old 11-11-2010, 12:51 AM   #2
XXguy
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Southeastern PA
Posts: 1,120
Liked 16 Times on 15 Posts
Likes Given: 26

Default

Looks pretty cool - I hope you can post more photos.

__________________
XXguy is offline

Reply With Quote Quick reply to this message
Old 11-11-2010, 01:22 AM   #3
Espi
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Tempe, AZ
Posts: 218
Liked 1 Times on 1 Posts
Likes Given: 2

Default

Uh that looks awesome and your camera rules.. what is that? Not to get off topic.

__________________

When in darkness... when in doubt... run in circles... scream and shout!

Espi is offline

Reply With Quote Quick reply to this message
Old 11-11-2010, 01:45 AM   #4
resslerk
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: SE Wisconsin
Posts: 59
Liked 1 Times on 1 Posts

Default

Quote:
Originally Posted by Espi View Post
Uh that looks awesome and your camera rules.. what is that? Not to get off topic.
Canon 10D
__________________
resslerk is offline

Reply With Quote Quick reply to this message
Old 11-11-2010, 01:48 AM   #5
strat_thru_marshall
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Oklahoma City
Posts: 1,679
Liked 28 Times on 24 Posts
Likes Given: 32

Default

I'm not sure I understand step 1 and 2. It's all pre-boil...why do you sanitize and then rinse??

__________________
strat_thru_marshall is offline

Reply With Quote Quick reply to this message
Old 11-11-2010, 02:28 AM   #6
Espi
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Tempe, AZ
Posts: 218
Liked 1 Times on 1 Posts
Likes Given: 2

Default

Quote:
Originally Posted by strat_thru_marshall View Post
I'm not sure I understand step 1 and 2. It's all pre-boil...why do you sanitize and then rinse??
yah wondered that as well.. i would think just cleaning bits up? Just adds time and can't do any harm.

Looks like a set up that works.
__________________

When in darkness... when in doubt... run in circles... scream and shout!

Espi is offline

Reply With Quote Quick reply to this message
Old 11-11-2010, 03:21 AM   #7
resslerk
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: SE Wisconsin
Posts: 59
Liked 1 Times on 1 Posts

Default

Quote:
Originally Posted by strat_thru_marshall View Post
I'm not sure I understand step 1 and 2. It's all pre-boil...why do you sanitize and then rinse??
I do both steps because starsan tends to foam when run through a pump and agitated. I do the quick rinse to just make sure I get rid of the suds.
__________________
resslerk is offline

Reply With Quote Quick reply to this message
Old 11-11-2010, 11:33 AM   #8
Burgs
Feedback Score: 2 reviews
Recipes

Join Date: Feb 2010
Location: Decatur, IL
Posts: 938
Liked 12 Times on 10 Posts
Likes Given: 5

Default

I didn't think star san was effective as a cleaner... why not a light oxyclean solution and then water... or pbw?

Can you post more pics and details on this - it looks like a really cool setup! I'm interested, anyway.

__________________
Burgs is offline

Reply With Quote Quick reply to this message
Old 11-11-2010, 12:21 PM   #9
Ohio-Ed
Feedback Score: 0 reviews

Ohio-Ed's Avatar
Recipes

Join Date: Nov 2008
Posts: 2,072
Liked 19 Times on 18 Posts

Default

Quote:
Originally Posted by resslerk View Post
I do both steps because starsan tends to foam when run through a pump and agitated. I do the quick rinse to just make sure I get rid of the suds.
You might want to take a look at Saniclean. It is basicly foamless StarSan.
Great for use with a pump. I use it as a final acid rinse.

Ed
__________________
Ohio-Ed is offline

Reply With Quote Quick reply to this message
Old 11-11-2010, 01:31 PM   #10
resslerk
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: SE Wisconsin
Posts: 59
Liked 1 Times on 1 Posts

Default

Quote:
Originally Posted by Ohio-Ed View Post
You might want to take a look at Saniclean. It is basicly foamless StarSan.
Great for use with a pump. I use it as a final acid rinse.

Ed
I plan on using saniclean once I use up my starsan.
