Default Brewery Build - Single Tier HERMS

Preface:
This project began, as many home brewing projects do, as a discussion over a few beers, debating the possibilities, costs and rewards of building a small scale brewery as a family. A father, the engineer, and two sons, the oldest of which is project driven OCD, the other the fun loving jokester who would rather brew and drink then design and build. Well, combine the three of us, a passion to brew more, consistent and higher quality brews and we're bound to spend some money and time and build something.

The Brewery at a Glance
With inspiration coming from the designs and ideas of several brewers throughout the world, we've taken our favorite aspects of what we've seen, tweaked and added a few of our own touches.
  • Single tier, wheelbarrow style for mobility
  • Low profile design
  • Tilting mounts for kettles for easy cleaning
  • HERMS design w/ability for direct fire on all kettles
  • 3 Keggle brew kettle system
  • 2 March pumps for wort / liquid transfer
  • Propane fuel for mobility

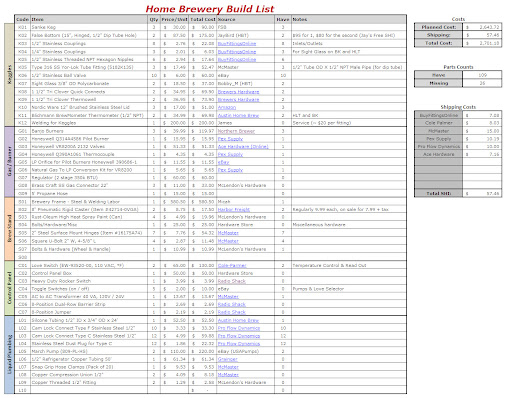

Parts List & Details
DRAFT List - I'll continue to update as we move through our build and will post our final build list with prices, links, and part numbers were applicable at the completion of the build.



Brewery Design Mock-Up
See Post #2 in this thread.

Brewery Process Diagrams
Coming Soon...

Photos














Updates:
[November 23, 2009] - I plan to update this thread as we move through our design, build and brew process with our brewery.
[November 27, 2009] - Added 3D model sketch (will add Sketch-Up files at a later date for anyone interested)
[December 15, 2009] - Added updated 3D model (I'll clean up all the models at the end and update this thread with all the "FINAL" images)
[December 18, 2009] - Updated build list to reflect some recent decisions around our quick disconnects, gas control, and welded fittings.
[December 21, 2009] - Added Final Drawings, measurements & multiple angles.
[January 4, 2010] - Gave the green light to our welder to order the frame materials from the metal supplier and begin welding.

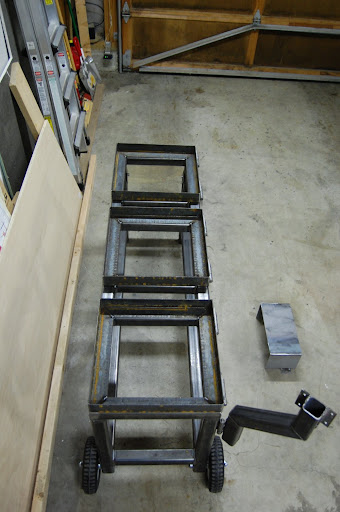

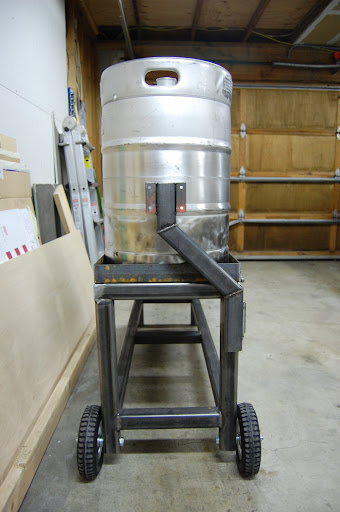

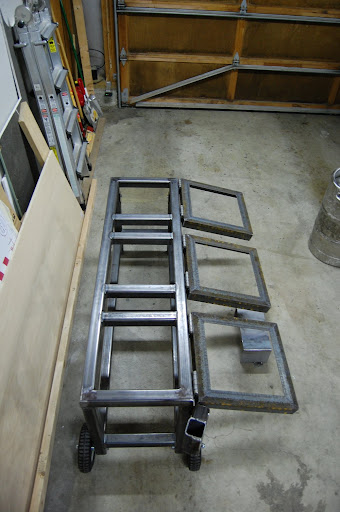

[January 20, 2010] - Updated build list with most recent parts, prices, etc. Posted the first photos of our build progress. Picked up the stand from our welder tonight and bolted on the wheels and handle.
[February 6, 2010] - Keg tops cut off and lids fitted.
[February 22, 2010] - Control panel box mounted, kegs drilled and bolted to tippy trays, burners mounted to the burner boxes, HERMs coil wound.
[March 1, 2010] - Burner boxes mounted, more gas plumbing fitted.
[March 14, 2010] - Drilled kegs and prepped for welding.
[April 4, 2010] - Received the kegs back from GreenMonti and dry mounted the fittings.
[April 10, 2010] - Completed gas assembly, installed fittings to tuns, built pump brackets and mounted pumps, assembled HERMS coil and dip tubes, cut and assembled fluid hoses.
[April 17, 2010] - Electrical build day; mounted switches, Love controllers and timer to control panel; fired up the power for the first time and everything seems to be working.


-------------------------------------------------

Thank You
Thank you for the inspiration, design ideas, education & assistance:
HomeBrewTalk.com, Kladue, Sawdustguy, Jaybird, Bobby_M, Nicksteck, Snake10, Doug Cameron & Full Sail Brewing Co., GreenMonti

Also, special thank you to our welder, Micah.





.

Last edited by mplutodh1; 04-18-2010 at 05:15 AM.
mplutodh1 is offline

Reply With Quote Quick reply to this message
Old 11-24-2009, 02:06 AM   #2
mplutodh1
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2006
Location: Sammamish, WA
Posts: 239
Liked 6 Times on 6 Posts

Default

Brewery Design Mock-Up

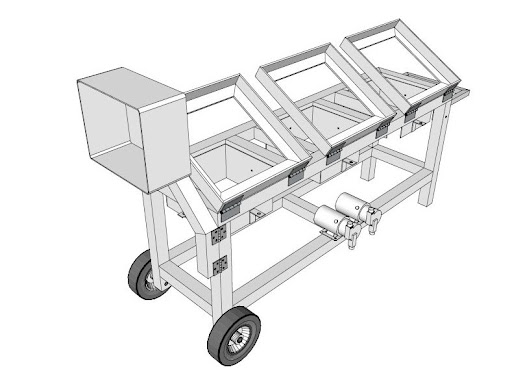

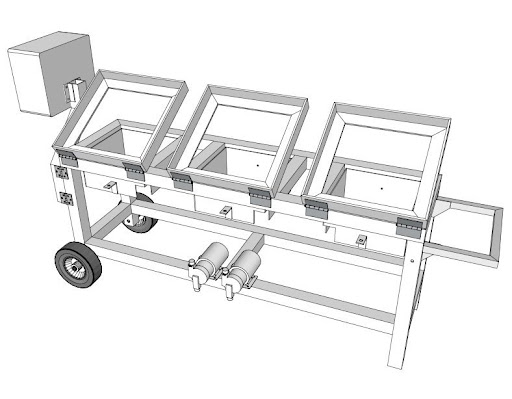

Stand View Front Right:


Stand View Front Left:

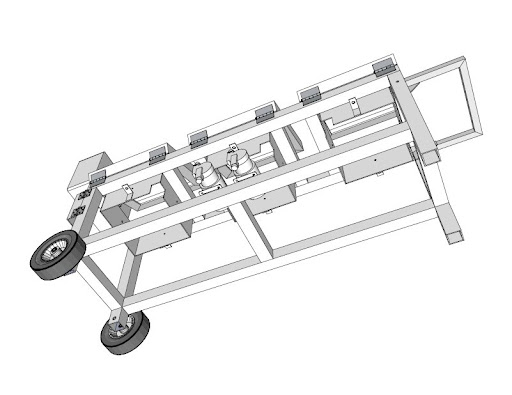

Stand View (Underside):

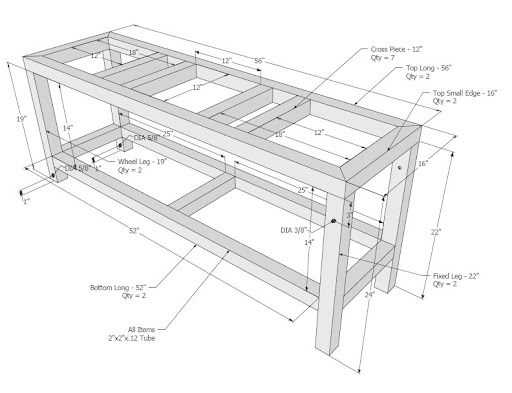

Stand Measurements:

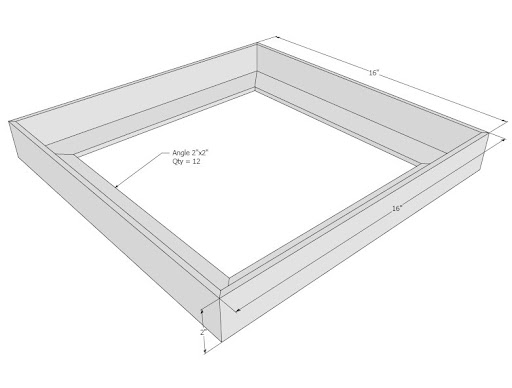

Keggle Tray:

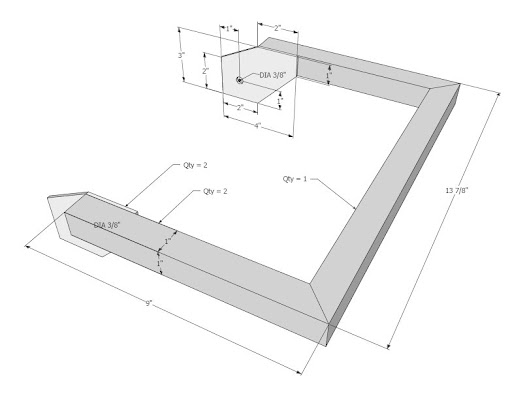

Stand Lift Handle:

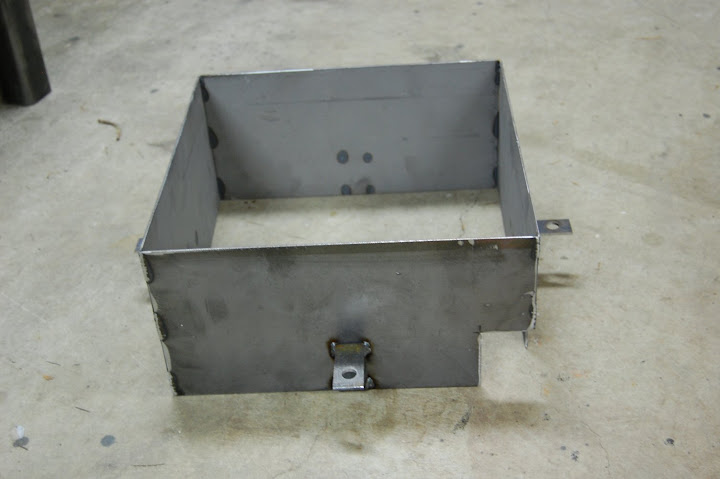

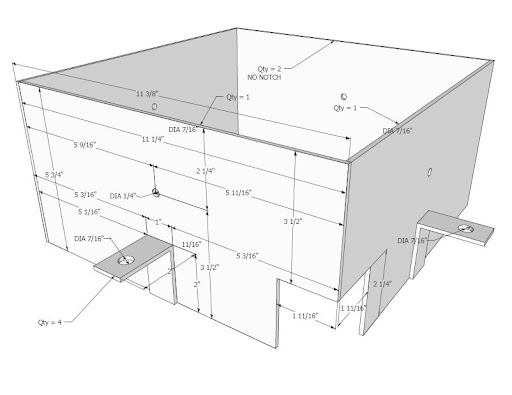

Individual Burner Boxes / Wind Screens (will be individually adjustable via threaded rods on the sides):

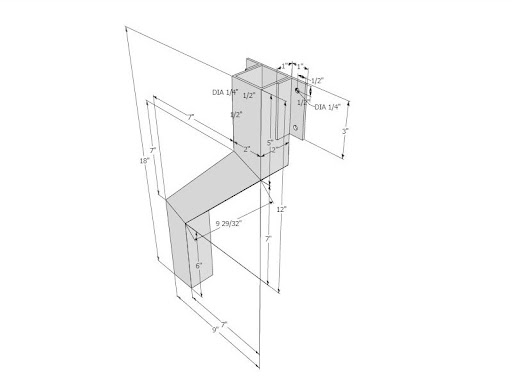

Control Panel Arm:

Last edited by mplutodh1; 01-21-2010 at 04:27 AM.
mplutodh1 is offline

Reply With Quote Quick reply to this message
Old 11-24-2009, 02:21 AM   #3
passedpawn
Waste Allocation Load Lifter - Earth Class
Feedback Score: 0 reviews

passedpawn's Avatar
Recipes

Join Date: Apr 2009
Location: ☼ Clearwater, FL ☼
Posts: 18,910
Liked 3337 Times on 2065 Posts
Likes Given: 2846

Default

Looks good except for one thing. The head is a little oblong. That won't work at all.

__________________
Hey goomba I love how you dance the rumba
But take some advice paisano learn-a how to mambo
If you're gonna be a square you ain't-a gonna go anywhere.
passedpawn is offline
hunterlab Likes This
Reply With Quote Quick reply to this message
Old 11-24-2009, 06:35 AM   #4
BrewBeemer
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2006
Location: island, inside an atoll
Posts: 3,505
Liked 20 Times on 20 Posts
Likes Given: 7

Default

Thats one very nice posting with everything listed as well your stand, congrats it looks like a great project.

__________________

Bier Jagdwaffe... Bier 30 zeit.....~~=o&o>..........

BrewBeemer is offline

Reply With Quote Quick reply to this message
Old 11-24-2009, 01:52 PM   #5
mplutodh1
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2006
Location: Sammamish, WA
Posts: 239
Liked 6 Times on 6 Posts

Default

Quote:
Originally Posted by BrewBeemer View Post
Thats one very nice posting with everything listed as well your stand, congrats it looks like a great project.
Just trying to pass on what so many have shared with us. Thanks!

Obviously we've got some stuff to work out to finalize things but we're nearing a point where we can begin moving forward. I'm excited to see everything come together.
__________________

- Matt
Shuksan Brewing | Plude Brewing | Our Brewery Build Thread - Single Tier HERMS | Our Brewery Build Plans | How-To: Draft Tower Assembly
Relax. Don't worry. Have a homebrew.

mplutodh1 is offline

Reply With Quote Quick reply to this message
Old 11-24-2009, 04:35 PM   #6
HIM_Tattoos
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2007
Location: Green Bay, WI
Posts: 366
Liked 3 Times on 3 Posts
Likes Given: 4

Default

....and subscribed.....

__________________
HIM_Tattoos is offline

Reply With Quote Quick reply to this message
Old 11-24-2009, 06:40 PM   #7
kladue
Senior Member
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2006
Location: Turner, Oregon, Oregon most of the time now
Posts: 2,308
Liked 47 Times on 43 Posts

Default

Looking forward to pictures of the finished project in operation.

__________________
kladue is offline

Reply With Quote Quick reply to this message
Old 11-24-2009, 07:19 PM   #8
Sawdustguy
Feedback Score: 1 reviews
Recipes

Join Date: Mar 2009
Location: Manorville, New York
Posts: 2,772
Liked 28 Times on 25 Posts

Default

I am very much looking forward to monitoring your progress. Best of luck with the build!

__________________

Guy

Sawdustguy is offline

Reply With Quote Quick reply to this message
Old 11-24-2009, 07:23 PM   #9
codemonkey
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2009
Location: NC
Posts: 10
Default

Subbed for later, good luck!

__________________
Primary: Munich Helles Lager
Secondary: Happy Holiday Ale
Bottled: Apfelwein, Night Cap Cherry Stout, Mead
codemonkey is offline

Reply With Quote Quick reply to this message
Old 11-28-2009, 05:33 AM   #10
mplutodh1
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2006
Location: Sammamish, WA
Posts: 239
Liked 6 Times on 6 Posts

Default

Added the 3D model sketch - as noted in my edit of the first post, I'll post the Google Sketchup files at a later date as well.

Burners were ordered before Thanksgiving so should show up in the coming days - which is one of the last pieces we need before sending everything off to our welder.

Missed out on the $105 March Pumps on eBay (USAPumps) so trying to locate a few at a reasonable price as well.

__________________

- Matt
Shuksan Brewing | Plude Brewing | Our Brewery Build Thread - Single Tier HERMS | Our Brewery Build Plans | How-To: Draft Tower Assembly
Relax. Don't worry. Have a homebrew.

mplutodh1 is offline

Reply With Quote Quick reply to this message
