1st post to the forum so I hope the pics work...been doing a lot of research and design on my own all-grain brew tower. Figured I got some really good info from this forum and would post these pics to maybe help spark ideas for someone looking around like I was a few months ago. Didn't want to just lurk and run!

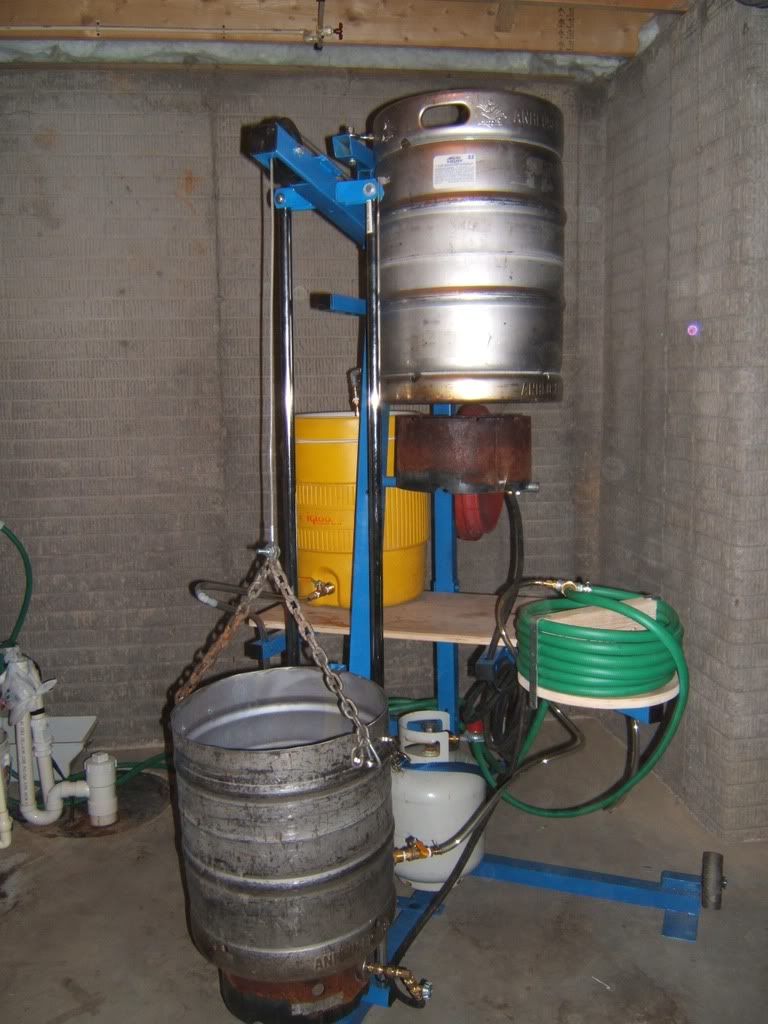

I used an old weight lifting machine as the basic frame and modified (sawsall-grinder-welder) to hold the sparge tank, mash tun, brew kettle and chiller + propane tank and 2 burners.
The stand-out feature of this tower is the pulley system that lets you lift the brew kettle to gravity feed through the chiller and into the fermenter.
I use a V-Vessel, so I built a low stand to let the wort flow right in decreasing chance of contamination. The stream areates the wort well enough that good liquid yeast will make strong bubbles within 12-18 hours. The chiller is ~20' coil, but with cold well water 5gal wort goes from boil to below 70 in under 15 minutes.
It comes apart quickly for cleaning and can be transported with the wheels and put in a pick-up bed. That's it, hope this helps someone create their own brew stand.
Brew Tower Built from Exercise Equip.
