Default brew stand measurements

I am looking to build a single tier brew stand and want support three keggles. I assume it should be about 2 feet deep and 3 feet High. What would guys recommend for length? I eventually want pumps and eventually some kind of cooling system. What your thoughts on this?

__________________
Tomtanner is offline

Reply With Quote Quick reply to this message
Old 09-23-2011, 02:52 PM   #2
Mrott
Feedback Score: 0 reviews

Mrott's Avatar
Recipes

Join Date: Dec 2010
Posts: 165
Liked 4 Times on 3 Posts
Likes Given: 1

Default

Well, how big are your pots? That's really the driving factor. Standard keggle you're about 16 inch diameter...x3, is 48 just for the keggles. You don't want them touching, so at least 3 inches on each side of the keggle, so tack on another 18 inches. Now you're up to 66 inches. Do you have any connections on the sides or near the sides of the keggles that you'd want more clearance space for? If so, throw on a few more inches...

Generally your pumps/plate chiller/controls/etc are down under the top tier so additional width isn't normally needed for this unless you have a unique design.

Either way, I'd say you're looking at a minimum of 66 inches. If you can spare some extra space, maybe you'd want to space out the keggles a bit further, but it shouldn't be needed.

__________________

Simply Absurd Brewing Company
Mrott is offline

Reply With Quote Quick reply to this message
Old 09-23-2011, 02:54 PM   #3
Yooper
Ale's What Cures You!
Feedback Score: 0 reviews

Yooper's Avatar
Recipes

Join Date: Jun 2006
Location: Upper Michigan
Posts: 61,037
Liked 4457 Times on 3245 Posts
Likes Given: 866

Default

My stand's shelf is 27 inches from the floor. This works for me, since I'm short and I can now stand on the floor and stir my mash when I mash in! When my stand was taller, I had to stand on a stepstool to add my additions and to mash in! I use two kegs and an Igloo cooler, which are pretty tall.

I don't know how long it is- it's just wide enough to fit everything. When I get home next week, I will measure it just to know for sure how wide and deep.

Here's a photo of mine:



I have two pumps, and a CFC.

__________________
Broken Leg Brewery
Giving beer a leg to stand on since 2006
Yooper is offline

Reply With Quote Quick reply to this message
Old 09-23-2011, 03:12 PM   #4
BeantownD
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Wakefield, MA, MA
Posts: 49
Liked 2 Times on 2 Posts
Likes Given: 6

Default

I've been getting ready to move to single tier. I've decided I want mine 2 feet high and 6 feet long to make it easy to see down into the keggles, etc. Factors to consider: How much storage you need? If you want to keep your carboys, extra hoses & equipment in the same footprint as the stand, factor in for that and make it a few inches higher. I'm all electric, but if you are going with gas, measure/account for burner height and clearances. You probably want the stand on casters too for ease of moving/cleaning, etc. Account for their height when building. Good luck and post photos when you get started!

__________________
BeantownD is offline

Reply With Quote Quick reply to this message
Old 09-23-2011, 03:44 PM   #5
OneHoppyGuy
HomeBrewTalk 2012 Vendor Giveaway Participate
Feedback Score: 0 reviews

OneHoppyGuy's Avatar
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,704
Liked 40 Times on 33 Posts
Likes Given: 52

Default

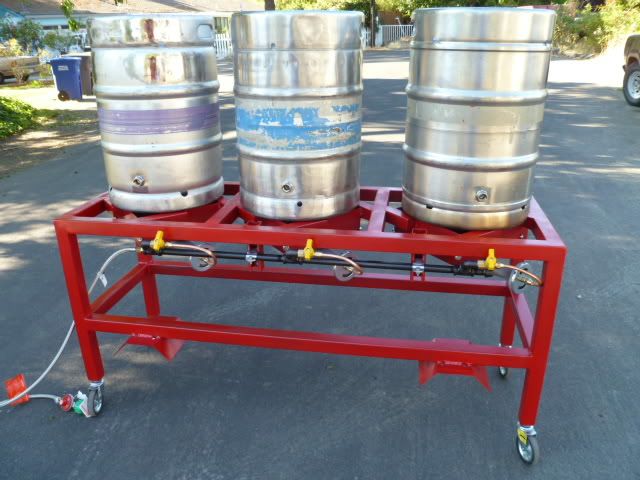

18" center to center, 54" inches long, 32" high including wheels, 18" deep

you want it high enough for a enough drop to the pumps
__________________

Brewright. All Rights Reserved. We reserve the right to brew and to help you brew. To protect the brew and defend the brew. To make the brew and drink the brew.

BrewSteel.com
BrewSteel on Facebook

OneHoppyGuy is offline

Reply With Quote Quick reply to this message
Old 09-23-2011, 06:31 PM   #6
Tomtanner
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2011
Location: Tampa, Florida
Posts: 367
Liked 6 Times on 6 Posts

Default

Quote:
Originally Posted by OneHoppyGuy

18" center to center, 54" inches long, 32" high including wheels, 18" deep

you want it high enough for a enough drop to the pumps
I saw your stand on another thread and referenced it as one example I would like to model my stand after when I spoke to a local fabricator.

He Said I could save money if I used galvanized steel rather than stainless. What are everyone's thoughts on that?
__________________
Tomtanner is offline

Reply With Quote Quick reply to this message
Old 09-23-2011, 06:49 PM   #7
OneHoppyGuy
HomeBrewTalk 2012 Vendor Giveaway Participate
Feedback Score: 0 reviews

OneHoppyGuy's Avatar
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,704
Liked 40 Times on 33 Posts
Likes Given: 52

Default

Have you priced the cost of having the frame dipped after building?
Not sure the zinc will hold up well to the heat.

It costs $155 to have my stands powder coated

__________________

Brewright. All Rights Reserved. We reserve the right to brew and to help you brew. To protect the brew and defend the brew. To make the brew and drink the brew.

BrewSteel.com
BrewSteel on Facebook

OneHoppyGuy is offline

Reply With Quote Quick reply to this message
Old 11-13-2011, 11:59 PM   #8
Tomtanner
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2011
Location: Tampa, Florida
Posts: 367
Liked 6 Times on 6 Posts

Default

At some point, someone did me a solid and responded to this thread and emailed me several pictures of his build process. I unfortunately lost that email and would greatly appreciate it if that gentleman could resend it to me. Anyone remember helping a newb out a month or so back?

__________________
Tomtanner is offline

Reply With Quote Quick reply to this message
Old 11-14-2011, 12:23 AM   #9
skylor60
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2011
Location: York Haven, Pa
Posts: 147
Liked 4 Times on 3 Posts

Default

here is something I am going to use to build mine
http://www.brotherhoodbrew.com/brutu...d_so_it_begins

__________________
skylor60 is offline

Reply With Quote Quick reply to this message
Old 11-14-2011, 01:38 AM   #10
dutchoven
Feedback Score: 0 reviews

dutchoven's Avatar
Recipes

Join Date: Mar 2011
Location: SF Bay Area, California
Posts: 630
Liked 8 Times on 8 Posts
Likes Given: 4

Default

Quote:
Originally Posted by Tomtanner View Post
He Said I could save money if I used galvanized steel rather than stainless. What are everyone's thoughts on that?
I would steer clear of galvanized ... from what I understand, it gives off some nasty fumes when heated ...
