Default Brew-Stand Build - gas fittings

Greetings!

So I almost got my single-tier stand finished. :rocking: I'm working on the black-pipe right now. The issue I'm having is connecting my 1/2" flexible pipe to orifice of the burner. The burner orifice is 3/8" flare (male) but the flexible tubing is 1/2" flare (female). I cannot find reducing fitting or adapter to connect the two.

I know that I can get a 3/8" flare flex tubing but I think that will cut down on the gas flow to the burners (I have 10" banjo burners that I will be converting to NG soon).

Any suggestions on connecting the 1/2" flare (female end) to the 3/8" flare (male)?

Thanks,
Dtrain

__________________

Fermenting:
Conditioning:
On Tap: Double Down, Centennial SMaSH, Belgian White, IPAc, Ed Wort's Apfelwein

The_Dtrain is offline

Reply With Quote Quick reply to this message
Old 03-13-2012, 01:43 AM   #2
day_trippr
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Stow, MA
Posts: 9,211
Liked 971 Times on 794 Posts

Default

Have you looked at the size of the gas orifice on the burner? That hole is freaky small. The ID of 3/8" flex line looks like a humongous fire hose by comparison...

Cheers!

__________________
day_trippr is offline

Reply With Quote Quick reply to this message
Old 03-13-2012, 01:47 AM   #3
Toymaker
Arrgh!
Feedback Score: 0 reviews

Toymaker's Avatar
Recipes

Join Date: Feb 2012
Location: Livonia, Michigan
Posts: 137
Liked 17 Times on 11 Posts
Likes Given: 7

Default

Can you remove the 3/8" flare fitting from the orifice? If so the other end is probably a pipe thread which you can find an adapter to go to 1/2". Otherwise, You'll have to go with 3/8 flex. I've worked with plumbing and with gas fittings for years and never run into a flare to flare adapter.

__________________

Cheers,
Gary

Toymaker is offline

Reply With Quote Quick reply to this message
Old 03-13-2012, 02:14 AM   #4
The_Dtrain
Feedback Score: 0 reviews

The_Dtrain's Avatar
Recipes

Join Date: Mar 2010
Location: Grand Haven, Michigan
Posts: 96
Liked 2 Times on 2 Posts
Likes Given: 3

Default

The 3/8" flare fitting looks like this and is important for the burner. I don't know if there is one that has a 1/2" flare on it.

__________________

Fermenting:
Conditioning:
On Tap: Double Down, Centennial SMaSH, Belgian White, IPAc, Ed Wort's Apfelwein

The_Dtrain is offline

Reply With Quote Quick reply to this message
Old 03-13-2012, 05:21 AM   #5
luhrks
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2011
Posts: 327
Liked 19 Times on 16 Posts
Likes Given: 10

Default

Go ahead and run the 3/8" from your 1/2" manifold to the burner, the 3/8" flare to 1/2" NPT adapters are easy to find. You'll be fine.

Or, you can try looking here. These guys are my "go to" for gs plumbing.

You'll probably have to go with a half union, coupler, half union combo to bypass the issue though.

http://www.suremarineservice.com/PlumbingFittings.aspx

__________________
luhrks is offline

Reply With Quote Quick reply to this message
Old 03-13-2012, 02:18 PM   #6
jcaudill
Feedback Score: 2 reviews
Recipes

Join Date: Dec 2010
Location: VA Beach, VA
Posts: 818
Liked 53 Times on 39 Posts
Likes Given: 4

Default

Personally I'd get a different hose. You're just adding more potential for gas to leak when you keep adding joints.

Otherwise you'll have to fit a FFL x FFL reducing coupling or a couple adapters. Seems like a lot more hassle than just replacing the hose.

__________________
jcaudill is offline

Reply With Quote Quick reply to this message
Old 03-13-2012, 04:35 PM   #7
OneHoppyGuy
HomeBrewTalk 2012 Vendor Giveaway Participate
Feedback Score: 0 reviews

OneHoppyGuy's Avatar
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,704
Liked 38 Times on 32 Posts
Likes Given: 52

Default

1/4" hose works just fine. Look at the size of the orifice and then tell me you're worried about restrictions....

__________________

Brewright. All Rights Reserved. We reserve the right to brew and to help you brew. To protect the brew and defend the brew. To make the brew and drink the brew.

BrewSteel.com
BrewSteel on Facebook

OneHoppyGuy is offline

Reply With Quote Quick reply to this message
Old 03-13-2012, 04:38 PM   #8
OneHoppyGuy
HomeBrewTalk 2012 Vendor Giveaway Participate
Feedback Score: 0 reviews

OneHoppyGuy's Avatar
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,704
Liked 38 Times on 32 Posts
Likes Given: 52

Default

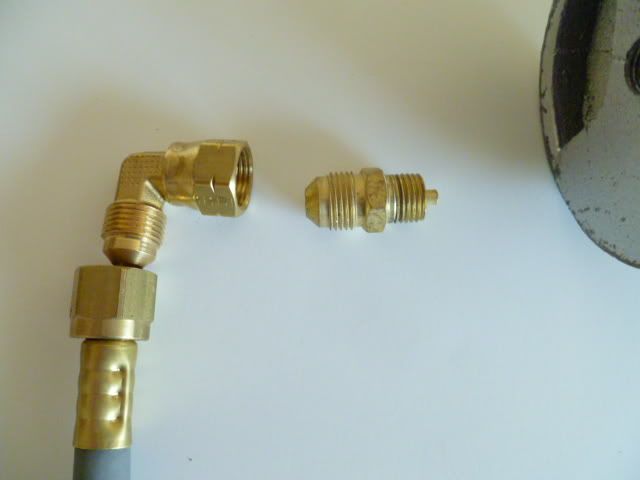

Note: hose in photos is for illustration only and is not gas rated. You want to use 350 psi CGA hose
__________________

Brewright. All Rights Reserved. We reserve the right to brew and to help you brew. To protect the brew and defend the brew. To make the brew and drink the brew.

BrewSteel.com
BrewSteel on Facebook

OneHoppyGuy is offline

Reply With Quote Quick reply to this message
Old 03-13-2012, 05:15 PM   #9
day_trippr
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Stow, MA
Posts: 9,211
Liked 971 Times on 794 Posts

Default

Where did you find that FFL-MFL elbow? I'd love to get my hands on a couple of those!


Cheers!

__________________
day_trippr is offline

Reply With Quote Quick reply to this message
Old 03-13-2012, 05:18 PM   #10
OneHoppyGuy
HomeBrewTalk 2012 Vendor Giveaway Participate
Feedback Score: 0 reviews

OneHoppyGuy's Avatar
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,704
Liked 38 Times on 32 Posts
Likes Given: 52

Default

Quote:
Originally Posted by day_trippr View Post
Where did you find that FFL-MFL elbow? I'd love to get my hands on a couple of those!

Cheers!
Like Karl said...
http://www.suremarineservice.com/PlumbingFittings.aspx
