Default Brew-Rig build... might as well start a thread.

Figured I'd just start a thread on the build... can document the trials and tribulations as I go!

What I am shooting for:
All electric HERMs setup using a brew-troller

I've actually been able to spend some time on it the past week. So far so good.

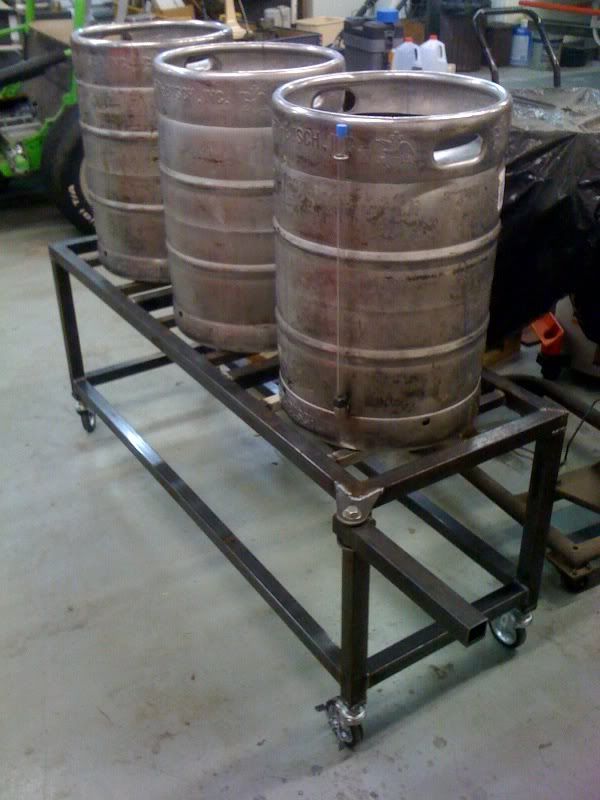

Basic stand is complete. Made the controls able to swing 270 deg. Need to fab the panel box so I can finish the mount and I need to order pumps so I can fab up some brackets and get to work on the plumbing...

__________________

Last edited by Pintodave; 06-29-2009 at 04:54 AM.
Pintodave is offline

Reply With Quote Quick reply to this message
Old 06-29-2009, 08:20 AM   #2
JohnnyKim
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2008
Location: East Brunswick, NJ
Posts: 52
Default

looks good. whats the thickness on the metal? 1/8" or 1/16?

__________________
JohnnyKim is offline

Reply With Quote Quick reply to this message
Old 06-30-2009, 03:38 AM   #3
Pintodave
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: Daytona Beach, FL
Posts: 206
Default

The tube is 1 1/2" sq, .078 wall (14 gauge). I used 1/4" for the plates for the controls bracket... I used 1" square on the tubes that support the keggles.

__________________
Pintodave is offline

Reply With Quote Quick reply to this message
Old 06-30-2009, 04:17 AM   #4
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,917
Liked 946 Times on 632 Posts
Likes Given: 28

Default

That sizing has great proportion and is obviously strong enough.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is online now

Reply With Quote Quick reply to this message
Old 07-01-2009, 05:09 PM   #5
Pintodave
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: Daytona Beach, FL
Posts: 206
Default

Thanks Bobby, that's what my goal was with the stand - something strong but not over kill and something that "looked right". Not that I have any immediate plans to build any more, but if I do I want something that can be "commercial quality".

Time to get bust finishing the keggles too!

__________________
Pintodave is offline

Reply With Quote Quick reply to this message
Old 07-01-2009, 07:18 PM   #6
JohnnyKim
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2008
Location: East Brunswick, NJ
Posts: 52
Default

do you think 2"x2" @ 1/16" is too thin?

__________________
JohnnyKim is offline

Reply With Quote Quick reply to this message
Old 07-01-2009, 08:05 PM   #7
eccsynd
control freak
Feedback Score: 0 reviews

eccsynd's Avatar
Recipes

Join Date: Apr 2008
Location: Minnesota
Posts: 175
Liked 1 Times on 1 Posts
Likes Given: 1

Default

I like that you kept it somewhat low profile. Some of the stands that I see are just too tall. I think that people try to shoot for a gravity carboy fill from the BK, but if you've made the jump to a single tier, you're going to be using pumps by definition...

IMHO, lower is better, as long as there is room for the pump (and it doesn't get melted).

__________________

BCS-460 Temperature Controller - Interactive web based interface, data logging, and programmable control rules.
http://www.embeddedcc.com
Become an ECC fan on Facebook

eccsynd is offline

Reply With Quote Quick reply to this message
Old 07-02-2009, 02:45 AM   #8
pickles
Feedback Score: 0 reviews

pickles's Avatar
Recipes

Join Date: Feb 2008
Location: Columbus
Posts: 1,976
Liked 48 Times on 40 Posts
Likes Given: 23

Default

what are the dimensions of your rig? I'm in the planning stages of my build. thanks

__________________
Gaptooth Brewhouse
pickles is offline

Reply With Quote Quick reply to this message
Old 07-02-2009, 02:50 AM   #9
pickles
Feedback Score: 0 reviews

pickles's Avatar
Recipes

Join Date: Feb 2008
Location: Columbus
Posts: 1,976
Liked 48 Times on 40 Posts
Likes Given: 23

Default

how does the electric element perform compared to a good gas burner as far as time required to bring wort to a boil? I was leaning towards gas for boil and electric for hlt/mlt but maybe I should go all electric if performance isn't compramised.

__________________
Gaptooth Brewhouse
pickles is offline

Reply With Quote Quick reply to this message
Old 07-02-2009, 03:22 AM   #10
Pintodave
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: Daytona Beach, FL
Posts: 206
Default

I think 2x2 .062 wall would be fine. You have to figure the most weight on the stand at any one time wouldnt be more than 10 gal per keggle (plus grains and keggle weight).

I dont know the exact dims off the top of my head, I'll measure the next time I am at "the shop" (my stepdad's garage-mahal where we work on the race cars). I know I left approx 3/4" around the front and sides of the kegs, plus the 1 1/2" tube between them, plus 1 1/2" end tubes on the frame. So the length stacks up as: keg diameter + 1.5 (x3), + 6.0 (1.5 tube x 4) so it should be around 60"-ish, the width should be 20"-ish. The kegs also sit inside the frame 1/2" (1 1/2" frame tube, kegs sit on 1" tube that is flush with bottom of frame tube), I did that for safety. I dont foresee a keggle with 10 gal of fluid getting "bumped" off the frame, but I felt better with it having a lip of some sorts to contain the keggle. I made the working height so I could barely reach the bottom of the keggle, I think that worked out to right around 24-25" from the ground to the bottom of the keggle.

As far as the elec vs. gas thing, I was going to do all gas, then do a hybrid, then after doing ALOT of research on here, I am pretty confident I can go all elec. and be able to "fine tune" thesystem more to my liking. The only thing I am undecided about is the heat exchanger - I want to use the HLT, but I may end up using a dedicated vessle... if I do I'll try to build some cool mount that folds down easily for storage purposes. Havent got that far yet
