Old 04-08-2009, 02:57 PM   #1
POLISHALE
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2007
Location: Brownstown, Mi
Posts: 40
Default banjo burner

what size pipe are you guys useing to hard plumb a banjo burner? and what kind of fitting are you screwing in the burner itself? do you still use the needle jet that comes in the stock braided line? im trying to hard plumb two burners to one 100lb tank. thanks for all your help

__________________
primary
1. Apfelwein
2. Mommas tripple IPA
3. Raspberry two sweet for me
sec
1.empty
2.
on tap
1. Irish Red
2. Chocolate Stout
ready to go
Harps Clone
wish me luck
POLISHALE is offline

Reply With Quote Quick reply to this message
Old 04-08-2009, 03:02 PM   #2
Lil' Sparky
Cowboys EAC
Feedback Score: 0 reviews

Lil' Sparky's Avatar
Recipes

Join Date: Feb 2006
Location: Honolulu, HI
Posts: 4,013
Liked 50 Times on 33 Posts

Default

I don't have a banjo burner, but I think they use the same kind of jet orifice. I used this one from morebeer - it's got pipe threads, not the flared fitting that are typically used with the flex gas lines. Burner Jet - 1/8 in. x 1 in. | MoreBeer.

My gas plumbing is all 1/2" black pipe, but you could also use 3/8" if you wanted.

This is what mine setup looks like.

__________________
Quote:
Originally Posted by duffman2 View Post
I dub this beer the Double Slutty Triple Nutty Bodacious Booty Brunette!
Lil' Sparky is offline

Reply With Quote Quick reply to this message
Old 04-08-2009, 03:07 PM   #3
POLISHALE
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2007
Location: Brownstown, Mi
Posts: 40
Default

cool thanks

__________________
primary
1. Apfelwein
2. Mommas tripple IPA
3. Raspberry two sweet for me
sec
1.empty
2.
on tap
1. Irish Red
2. Chocolate Stout
ready to go
Harps Clone
wish me luck
POLISHALE is offline

Reply With Quote Quick reply to this message
Old 04-08-2009, 03:13 PM   #4
POLISHALE
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2007
Location: Brownstown, Mi
Posts: 40
Default

Quote:
Originally Posted by Lil' Sparky View Post
I don't have a banjo burner, but I think they use the same kind of jet orifice. I used this one from morebeer - it's got pipe threads, not the flared fitting that are typically used with the flex gas lines. Burner Jet - 1/8 in. x 1 in. | MoreBeer.

My gas plumbing is all 1/2" black pipe, but you could also use 3/8" if you wanted.

[/IMG][/URL]

hey sparky. what did you use on the regulator end? have any pics?
__________________
primary
1. Apfelwein
2. Mommas tripple IPA
3. Raspberry two sweet for me
sec
1.empty
2.
on tap
1. Irish Red
2. Chocolate Stout
ready to go
Harps Clone
wish me luck
POLISHALE is offline

Reply With Quote Quick reply to this message
Old 04-08-2009, 03:17 PM   #5
Lil' Sparky
Cowboys EAC
Feedback Score: 0 reviews

Lil' Sparky's Avatar
Recipes

Join Date: Feb 2006
Location: Honolulu, HI
Posts: 4,013
Liked 50 Times on 33 Posts

Default

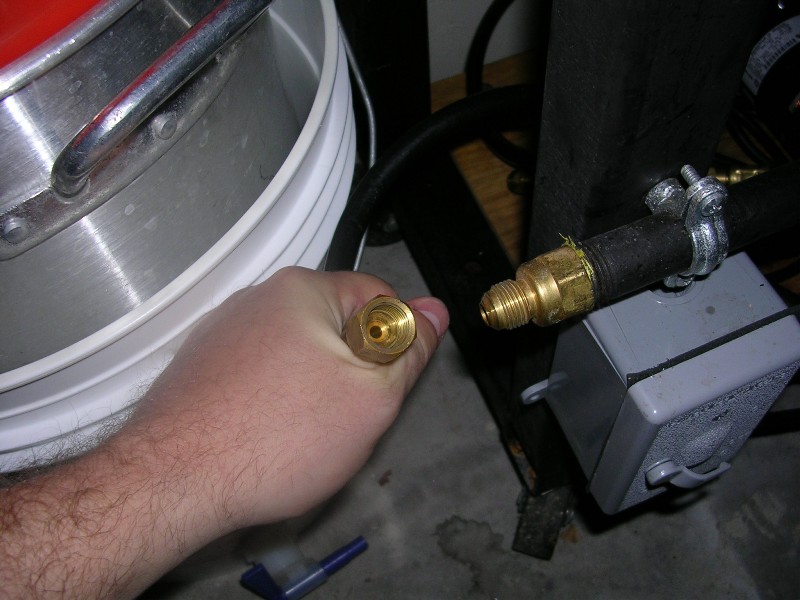

1/2" FPT to 3/8"(?) male flared fitting to attach the hose.

__________________
Quote:
Originally Posted by duffman2 View Post
I dub this beer the Double Slutty Triple Nutty Bodacious Booty Brunette!
Lil' Sparky is offline
POLISHALE Likes This
Reply With Quote Quick reply to this message
Old 04-08-2009, 03:48 PM   #6
lehr
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: flushing michigan
Posts: 805
Liked 16 Times on 16 Posts

Default

No pipes but this is how mine is plumbed I used the jets that came with the burners.

__________________
lehr is offline

Reply With Quote Quick reply to this message
Old 04-08-2009, 04:35 PM   #7
Lil' Sparky
Cowboys EAC
Feedback Score: 0 reviews

Lil' Sparky's Avatar
Recipes

Join Date: Feb 2006
Location: Honolulu, HI
Posts: 4,013
Liked 50 Times on 33 Posts

Default

It's hard to tell what all the fittings are. Do you have a section of copper tubing w/ compression fittings joining things together?

__________________
Quote:
Originally Posted by duffman2 View Post
I dub this beer the Double Slutty Triple Nutty Bodacious Booty Brunette!
Lil' Sparky is offline

Reply With Quote Quick reply to this message
Old 04-08-2009, 05:13 PM   #8
POLISHALE
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2007
Location: Brownstown, Mi
Posts: 40
Default

Quote:
Originally Posted by lehr View Post
No pipes but this is how mine is plumbed I used the jets that came with the burners.
how did you get the jets of the braided line? mine look like they are pressed on.
__________________
primary
1. Apfelwein
2. Mommas tripple IPA
3. Raspberry two sweet for me
sec
1.empty
2.
on tap
1. Irish Red
2. Chocolate Stout
ready to go
Harps Clone
wish me luck
POLISHALE is offline

Reply With Quote Quick reply to this message
Old 04-08-2009, 05:20 PM   #9
lehr
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: flushing michigan
Posts: 805
Liked 16 Times on 16 Posts

Default

Quote:
Originally Posted by Lil' Sparky View Post
It's hard to tell what all the fittings are. Do you have a section of copper tubing w/ compression fittings joining things together?
They are 37 degree flare fittings.
__________________
lehr is offline

Reply With Quote Quick reply to this message
Old 04-08-2009, 05:24 PM   #10
lehr
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: flushing michigan
Posts: 805
Liked 16 Times on 16 Posts

Default

Quote:
Originally Posted by POLISHALE View Post
how did you get the jets of the braided line? mine look like they are pressed on.
There are no jets on the braided line that is the regulator line. The jets are in the end of the burner.
__________________
lehr is offline

Reply With Quote Quick reply to this message
