Default Anyone else have an aluminum brew rig?

Besides staiinless and regular steel has anyone fabbed their rig out of aluminum? I picked up some 2"x2"x1/8" wall aluminum tube this weekend and plan on using it for my brutus like stand. The plan is to have wind shields plus a stainless angle ring or stainless angle legs for the kettles to rest on. None of the aluminum should be touched by the flame, but are there any other considerations with an aluminum stand? I won't be using gas rail, but just regular gas pipe and fittings for fuel supply.

__________________
WPStrassburg is online now

Reply With Quote Quick reply to this message
Old 04-19-2010, 03:47 PM   #2
lincoln
Feedback Score: 0 reviews

lincoln's Avatar
Recipes

Join Date: Dec 2009
Location: san jose, ca
Posts: 205
Liked 4 Times on 4 Posts
Likes Given: 1

Default

use The Search Luke!

http://www.homebrewtalk.com/f51/alum...bility-172198/

for example

__________________
lincoln is offline

Reply With Quote Quick reply to this message
Old 04-19-2010, 05:54 PM   #3
Sawdustguy
Feedback Score: 1 reviews
Recipes

Join Date: Mar 2009
Location: Manorville, New York
Posts: 2,758
Liked 28 Times on 25 Posts

Default

I wouldn't use it but thats your decision.

From Allexperts.com

Quote:
Aluminum Alloy 6061-T6 is a solution annealed and aged product. That means that the sheet is heated to put copper and magnesium etc. into solution and then rapidly cooling to trap these element in this supersaturated condition. The sheet is then aged at 320F to precipitate out a fine distribution of copper rich particles that give the alloy it's strength. Now if you heat it to 325F (note: this is higher then the initial aging temperature of 320F) you are continuing the aging process and will result in it being overaged and lower strength. Aging improves strength but eventually reaches a maximum where the particle size and distribution are optimum. Aging beyond this time and temperature decreases the effectivness of the particles and strength falls.
Below is a discolored stainless steel stand from a burner. I bet it took alot more than 320 F to discolor the stand. I don't know how long I would trust 15gallon Keggles full of water and wort with aluminum exposed to these types of temperatures. Hopefully you can keep the aluminum from being exposed to temperatures above 300 F.


__________________

Guy

Brewery URL: Black Dog Brewery NY

BBQ Team URL: Two Fat Polocks BBQ Team


Last edited by Sawdustguy; 04-19-2010 at 05:57 PM.
Sawdustguy is offline

Reply With Quote Quick reply to this message
Old 04-19-2010, 06:15 PM   #4
jppostKW
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Englewood CO
Posts: 1,814
Liked 11 Times on 11 Posts
Likes Given: 4

Default

My 2 tier is made from aluminum for the upper teir it doesn't get direct heat though I have anormal bayou stand on the bottom there is a build thread in the photo gallery I would link but I'm on my phone and it would probabaly confuse it

__________________
Diesel Fuel Brewery

Quote:
Originally Posted by paulthenurse View Post
It would be the brewing equivalent of painting the Sistine Chapel with Crayola Crayons.
Quote:
Originally Posted by Stuntman View Post
You sir, are a specialist in the art of discovering a welcoming outcome of a particular situation....not a mechanic.
jppostKW is offline

Reply With Quote Quick reply to this message
Old 04-19-2010, 06:40 PM   #5
Synovia
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Chicago, Il
Posts: 1,327
Liked 6 Times on 6 Posts
Likes Given: 1

Default

Quote:
Originally Posted by Sawdustguy View Post
Below is a discolored stainless steel stand from a burner. I bet it took alot more than 320 F to discolor the stand. I don't know how long I would trust 15gallon Keggles full of water and wort with aluminum exposed to these types of temperatures. Hopefully you can keep the aluminum from being exposed to temperatures above 300 F.
I've never actually seen it done, but i've heard that even a cheap propane burner will turn an empty aluminum pot into a pile of goo. I think you could build a stand fine, but you'd definitely need to insulate anything near a propane burner.
__________________
Synovia is offline

Reply With Quote Quick reply to this message
Old 04-19-2010, 06:47 PM   #6
BigBobsBrews
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Indianapolis, IN
Posts: 158
Liked 5 Times on 5 Posts
Likes Given: 1

Default

Aluminum transmits heat wayy to readily. If you plan on running your wires through the frame I would defiantly recommend against the aluminum, that much heat could potentially melt the coating on the wire.


-tHeo

__________________
BigBobsBrews is offline

Reply With Quote Quick reply to this message
Old 04-20-2010, 03:43 PM   #7
keithd
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2008
Location: Yokota AB, Japan
Posts: 86
Liked 2 Times on 2 Posts
Likes Given: 1

Default

Given that some have build propane-fired wooden brew stands, aluminum is definitely possible.

__________________
keithd is offline

Reply With Quote Quick reply to this message
Old 04-20-2010, 06:51 PM   #8
diatonic
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Boise, ID
Posts: 710
Liked 10 Times on 8 Posts
Likes Given: 8

Default

Here's my thoughts on gas fired burner stand materials.

Stainless Steel: Awesome! Just because you can heat it to 1000F, doesn't mean you want to. Try to isolate the heat as much as you can from the stand.

Mild Steel: Awesome! Make sure it doesn't rust! Make sure the coating can handle the temps. See note on stainless above.

Aluminum: Cool, but be really careful how hot you get it. Beyond the melting concerns, it's going to conduct that heat throughout the stand. Plan well.

Wood: I think it's crazy! Some people do it, and I haven't heard of a fire. Then again 1 in 4000 babies are born without an anus, and I've never personally met one of them. I'd imagine burning down a wooden gas powered rig is more likely than being born without an anus, but it isn't a risk I'd take personally. Good luck!

__________________

.:diatonic:.

1° - Simple Cider (2/15/2014) - Saison Mead (6/26/2014) - En Perpetuum (Belgian sour base) (7/3/2014)
2° - Nuthin
Aging in a wine barrel - En Perpetuum—Solera (1/23/2011)
Kegs - May the Schwarz-Bier with you (2/9/2014) — Test Depth American Stout (8/29/2013), Big Red Imperial Red IPA (1/19/2014)

My brew rig is pretty much done :)
You should follow me on Twitter - My Brew Logs

diatonic is offline

Reply With Quote Quick reply to this message
Old 04-20-2010, 07:55 PM   #9
WPStrassburg
Feedback Score: 2 reviews
Recipes

Join Date: Sep 2008
Location: Rochester, NY
Posts: 479
Liked 21 Times on 18 Posts
Likes Given: 1

Default

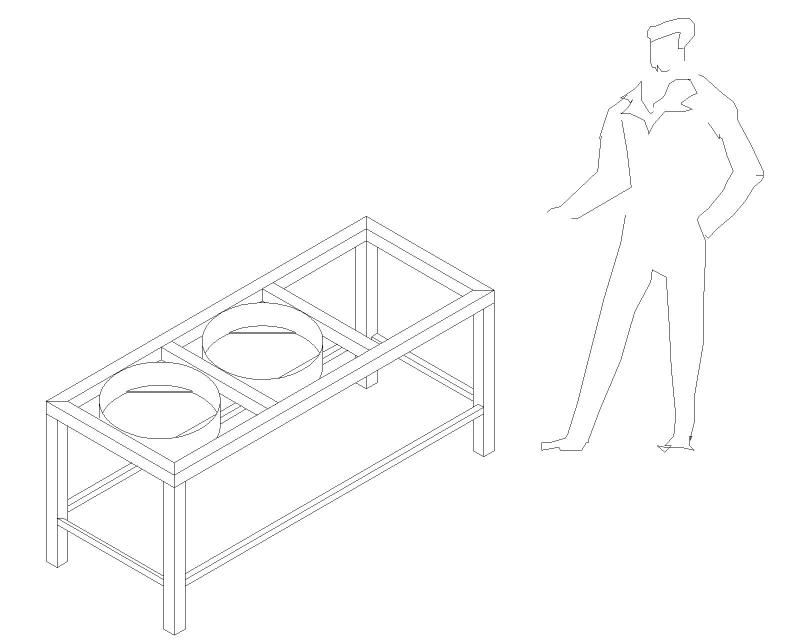

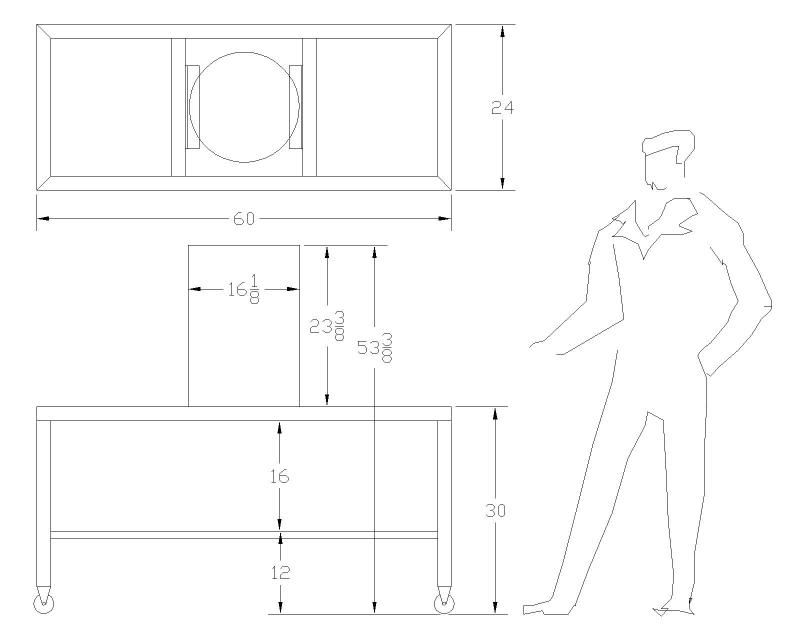

Rough size will be 60"l x 24"d x 30"h, so I have a bit more room compared to a brutus. Along the lines of wood protection I was planning on some 17" dia x 4" high windscreen/shields that would also be used to support the 16" dia keg. This will isolate the keg and heat from the aluminum frame (in theory...). I also plan on a 18" dia cylinder that will go the full height of the keg to keep the hot gasses in contact with the keg sides and provide some additional heating efficency.

No wiring or gas will be run within the tubing either.

And I'd let my rig burn just to save that 1 of 4000 baby...




__________________
WPStrassburg is online now

Reply With Quote Quick reply to this message
Old 04-20-2010, 08:13 PM   #10
diatonic
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Boise, ID
Posts: 710
Liked 10 Times on 8 Posts
Likes Given: 8

Default

Quote:
Originally Posted by WPStrassburg View Post
... And I'd let my rig burn just to save that 1 of 4000 baby...
Anorectal anomalies are correctable with surgery... I was just trying to make the point that just because 5 people mount gas burners in a wood frame, and they don't burn, doesn't mean that there is no risk that they will burn.

Sorry for going a bit
__________________

.:diatonic:.

1° - Simple Cider (2/15/2014) - Saison Mead (6/26/2014) - En Perpetuum (Belgian sour base) (7/3/2014)
2° - Nuthin
Aging in a wine barrel - En Perpetuum—Solera (1/23/2011)
Kegs - May the Schwarz-Bier with you (2/9/2014) — Test Depth American Stout (8/29/2013), Big Red Imperial Red IPA (1/19/2014)

My brew rig is pretty much done :)
