Old 02-02-2012, 06:19 PM   #11
CannibalAJ
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2011
Location: Syracuse, NY
Posts: 102
Liked 2 Times on 2 Posts
Likes Given: 7

Default

Looks awesome! And congrats on the coming kid!

My $0.02 - you may need to add some insulation to that pig. It looks like it doesn't have much if any. Insulation will help your mini fridge guts chill all that thermal mass with out over working.

__________________
Quote:
Originally Posted by matt2778 View Post
When life deals you lemons make ten gallons of all grain home brew.
CannibalAJ is offline

Reply With Quote Quick reply to this message
Old 02-02-2012, 08:00 PM   #12
snooky
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Buffalo, NY
Posts: 57
Liked 3 Times on 3 Posts

Default

Quote:
Originally Posted by CannibalAJ
My $0.02 - you may need to add some insulation to that pig. It looks like it doesn't have much if any. Insulation will help your mini fridge guts chill all that thermal mass with out over working.
You're right. Now its just a steel shell. I plan on getting some of the pink foam board from home depot and lining it with a couple layers.
__________________
Lake Effect Brewing
snooky is offline

Reply With Quote Quick reply to this message
Old 02-04-2012, 03:35 PM   #13
snooky
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Buffalo, NY
Posts: 57
Liked 3 Times on 3 Posts

Default

I bought my mini fridge yesterday and tore it apart today. I'm hoping to post a full tutorial of it in a day or two.

__________________
Lake Effect Brewing
snooky is offline

Reply With Quote Quick reply to this message
Old 02-17-2012, 05:13 AM   #14
socalboomer
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2011
Location: Riverside, CA
Posts: 209
Liked 4 Times on 3 Posts
Likes Given: 6

Default

Quote:
Originally Posted by snooky
I bought my mini fridge yesterday and tore it apart today. I'm hoping to post a full tutorial of it in a day or two.
Anything yet?
__________________

On Tap: Chocolate Palomino Chocolate Oatmeal Porter
On Tap: Black Sand Foreign Extra Stout
On Tap: Gold Dust Pale
In Secondary: Gold Dust Pale (bottles conditioning)
In Secondary:
In Primary: O'Rally Red Amber
Next up: not sure yet

socalboomer is offline

Reply With Quote Quick reply to this message
Old 03-10-2012, 06:37 PM   #15
MarineDwg9
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2010
Location: Beaufort, South Carolina
Posts: 13
Default

Thanks for posting. I am definitely looking forward to your tutorial posts. I have been keeping an eye out for an antique wooden icebox for a while to do the same thing.

__________________
MarineDwg9 is offline

Reply With Quote Quick reply to this message
Old 03-10-2012, 10:24 PM   #16
JRems
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Mahopac, NY
Posts: 2,229
Liked 58 Times on 50 Posts
Likes Given: 9

Default

Very nice here is my vintage kegerator.
http://www.homebrewtalk.com/f51/vint...erator-282345/
I actually think your fridge is from the 30's most of the 40's were rounded like mine. The 30's were more boxy. I gutted mine, re insulated it and had to replace the guts with mini fridge guts. My only suggestion is to find an older mini fridge with the cooling condenser fins on the back. It will be hard to remove all the lines from whe walls of a newer style mini fridge.

__________________
JRems is offline

Reply With Quote Quick reply to this message
Old 03-11-2012, 03:45 AM   #17
snooky
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Buffalo, NY
Posts: 57
Liked 3 Times on 3 Posts

Default

So I finally got around to writing up the post about taking apart the mini fridge. While brewing one Saturday, I took some time and separated the internals from the useless (to me at least) outer shell.

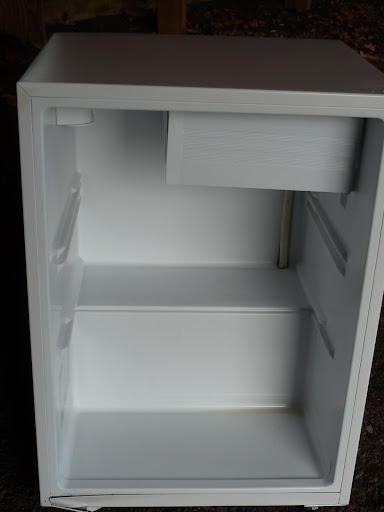

It was a lot easier than I had anticipated, all that was required to take this apart were a screwdriver (or drill), a hammer, a clamp, and a couple blocks of wood. The key was to do it slowly and work in small sections. In order to make it a bit easier to work with, I removed the door from the fridge.

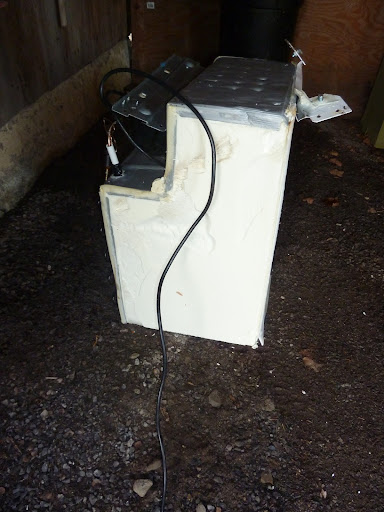

The next thing I did was remove the steel shell from the insulation and disconnect the compressor from the frame.



Next, I took out the freezer compartment that will distribute the cooled freon inside the kegerator.



After that, I took had to peel away some styrofoam to get the cooling lines out. At that point, the guts of the fridge were completely removed.

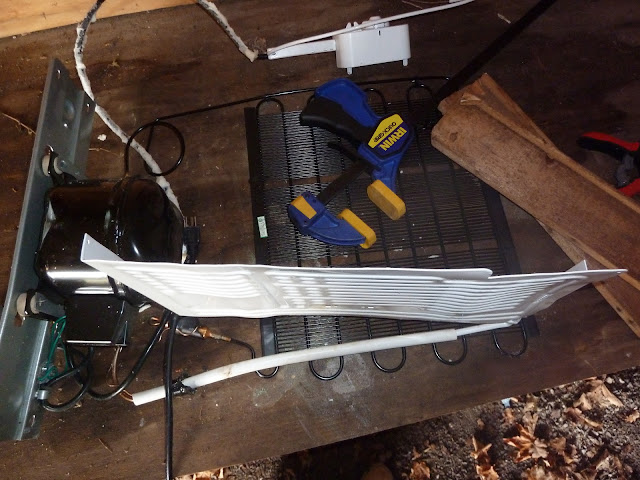

The last thing I did was flatten out the freezer compartments with some clamps and blocks of wood so it will fit up against the wall for my build.



Like I said, if you're planning on doing this yourself, just take your time. I was terrified that I would nick a freon line and my $50 purchase would be a lump of trash, but just checking what I was taking apart along the way really helped. All in all, this took me about 45 minutes from start to finish. While my single hop additional beer was boiling was a perfect time.

__________________
Lake Effect Brewing
snooky is offline

Reply With Quote Quick reply to this message
Old 03-11-2012, 04:00 AM   #18
chuckstout
Feedback Score: 3 reviews
Recipes

Join Date: Feb 2012
Location: , Wa
Posts: 866
Liked 216 Times on 143 Posts
Likes Given: 195

Default

Cool build!

__________________
chuckstout is offline

Reply With Quote Quick reply to this message
Old 09-26-2012, 08:08 PM   #19
MarineDwg9
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2010
Location: Beaufort, South Carolina
Posts: 13
Default

Any updates on your build?

__________________
MarineDwg9 is offline

Reply With Quote Quick reply to this message
Old 09-27-2012, 05:54 AM   #20
freeokw
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2011
Location: lincoln, ne
Posts: 88
Liked 1 Times on 1 Posts
Likes Given: 16

Default

subscb

__________________
freeokw is offline

Reply With Quote Quick reply to this message
