Default Another Keezer Build

Just wanted to showcase my keezer build for everyone and share any info I can. These forums have have been such a great resource for all things brewing that I wanted to give back.



This was the first purchase. 7.0 cu Holiday brand freezer from Lowes.

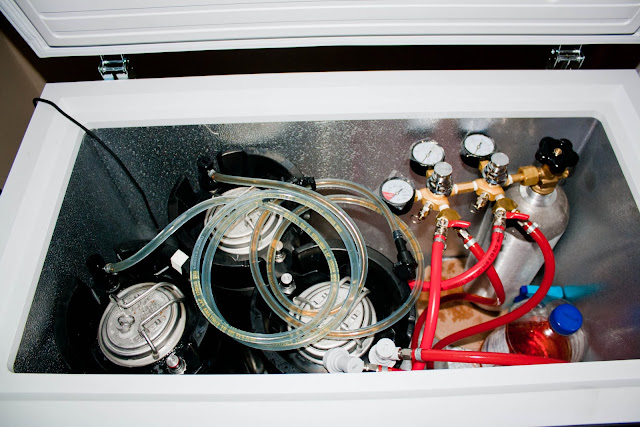

This is my kegging setup. I've got 4 cornies (1 not pictured). They fit in there but are very snug. A 5lb tank sits on the hump without problem.

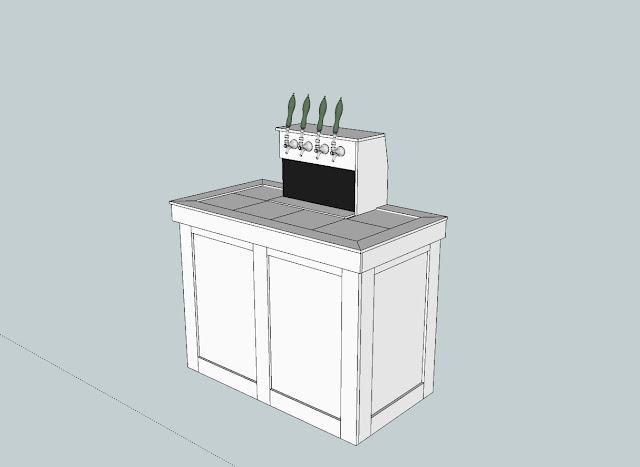

I built a 3d model using google sketchup based on Jesters keezer build. I resized everything to work on my 7.0 cu ft holiday freezer.

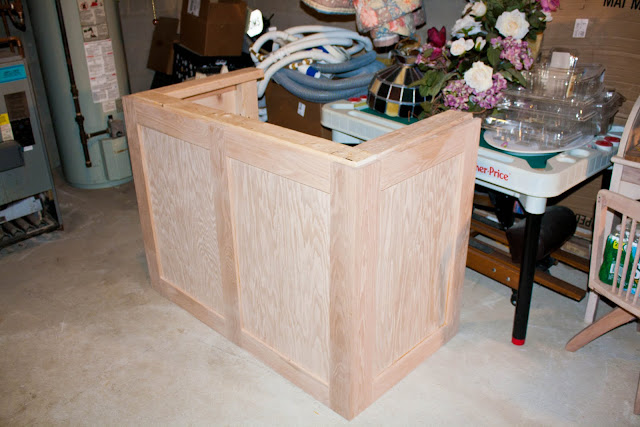

I was suprised with how well things are mimicking the plans. I am a rookie when it comes to carpentry but have learned that taking things slow yields impressive results.

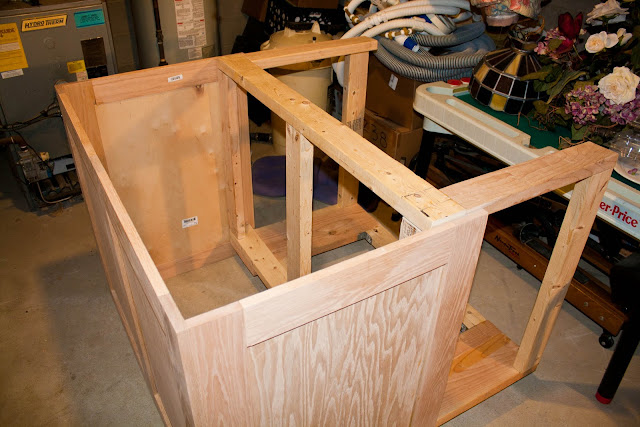

This is just an exploded view showing the framing and the paneling



I've begun work on the lid. I decided to ditch the current lid and build an entirely new one. I didn't feel like drilling holes through the stock lid in case I ever decide to repurpose it as a normal freezer. I doubt that's going to happen though based on how much money I've pumped into this thing.

The bottom part of the lid is just your run of the mill 2x4, the top is MDF. Right now I have everything painted in a primer and plan on putting a coat of exterior paint on it. The paint won't be visible when the keezer is finished it's merely to seal the wood from any moisture in the freezer.

That's it for now. I'll keep this post up to date with my progress. Unfortunately I'm going away this weekend and will be out on business all next week so updates will be slow coming. As of right now I hope to finish it over Xmas break.

__________________
specialized is offline

Reply With Quote Quick reply to this message
Old 12-02-2010, 03:58 AM   #2
chaz56
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Naugatuck, CT
Posts: 12
Liked 1 Times on 1 Posts

Default

coming out nice cant wait to see the final picture!

__________________
chaz56 is offline

Reply With Quote Quick reply to this message
Old 12-02-2010, 04:05 AM   #3
dlester
Mo-Fo-Xing
Feedback Score: 0 reviews

dlester's Avatar
Recipes

Join Date: Nov 2007
Location: Los Angeles, CA, CA
Posts: 546
Liked 34 Times on 32 Posts
Likes Given: 177

Default

I noticed you have only 3 kegs, but 4 taps. I resolved the same issue by adding a 3 gal and put it up on the little shelf your using for the C02. You can fit the C02 down on the lower level. I like to use the 3 gal for extra storage or high gravity beers like barley wine. Hope this helps.

Good Luck

__________________
dlester is offline

Reply With Quote Quick reply to this message
Old 12-02-2010, 11:09 AM   #4
specialized
Feedback Score: 0 reviews
Recipes

Join Date: May 2010
Location: New Jersey
Posts: 173
Liked 2 Times on 2 Posts

Default

Quote:
Originally Posted by dlester View Post
I noticed you have only 3 kegs, but 4 taps. I resolved the same issue by adding a 3 gal and put it up on the little shelf your using for the C02. You can fit the C02 down on the lower level. I like to use the 3 gal for extra storage or high gravity beers like barley wine. Hope this helps.

Good Luck
I actually have a fourth it's just not full at the moment. I might look into what you said after this is all done though, because getting that fourth corny in there is a struggle.
__________________
specialized is offline

Reply With Quote Quick reply to this message
Old 12-02-2010, 12:04 PM   #5
bmbigda
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2009
Location: Norfolk, MA
Posts: 254
Liked 2 Times on 2 Posts
Likes Given: 3

Default

i didn't realize you could buy MDF in that format...nice

__________________
bmbigda is offline

Reply With Quote Quick reply to this message
Old 12-02-2010, 12:10 PM   #6
specialized
Feedback Score: 0 reviews
Recipes

Join Date: May 2010
Location: New Jersey
Posts: 173
Liked 2 Times on 2 Posts

Default

Well they don't really sell it in that form. I bought a 4X8 piece, had homedepot rip it in half. When I got home i sized it to my exact needs. I'll have to think of somehting to do with the other 4X4 piece I have sitting around.

__________________
specialized is offline

Reply With Quote Quick reply to this message
Old 12-02-2010, 12:41 PM   #7
skibumdc
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2008
Location: NoVa
Posts: 214
Liked 4 Times on 4 Posts

Default

Subscribed. Starting my keezer build myself. Just about to make my rolling base.
You going to vent around the sides to dissipate heat?

__________________
skibumdc is offline

Reply With Quote Quick reply to this message
Old 12-02-2010, 12:47 PM   #8
specialized
Feedback Score: 0 reviews
Recipes

Join Date: May 2010
Location: New Jersey
Posts: 173
Liked 2 Times on 2 Posts

Default

Quote:
Originally Posted by skibumdc View Post
Subscribed. Starting my keezer build myself. Just about to make my rolling base.
You going to vent around the sides to dissipate heat?
As it stands now the walls of the freezer sit 3.5 inches away from the paneling. The back side will not be enclosed but will sit against a wall of the house. The user manual on the freezer says to keep 4 inches of spacing on all sides. Although I'm pushing it a little bit I don't think I will run into problems with over stressing my compressor. If I do notice things are running hot/too frequently I'll wire a fan to push air around the skin of the freezer when the compressor kicks on.
__________________
specialized is offline

Reply With Quote Quick reply to this message
Old 12-02-2010, 01:45 PM   #9
cedar_lake
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Vermont
Posts: 89
Default

Subscribed because I have this exact freezer model and haven't done anything to it yet.

You can really get four cornies in there? I feel like it might take a little bit of creative hammering to do that (I have ball locks).

__________________
cedar_lake is offline

Reply With Quote Quick reply to this message
Old 12-02-2010, 01:52 PM   #10
skibumdc
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2008
Location: NoVa
Posts: 214
Liked 4 Times on 4 Posts

Default

Quote:
Originally Posted by cedar_lake View Post
Subscribed because I have this exact freezer model and haven't done anything to it yet.

You can really get four cornies in there? I feel like it might take a little bit of creative hammering to do that (I have ball locks).
With an 8" collar I'm sure he could fit the CO2 tank and maybe a cornie on the hump?
__________________
skibumdc is offline

Reply With Quote Quick reply to this message
