Well, here's another fermentation chamber build thread - I'll try to keep it updated, but my progress might not be what one would consider _fast_ over the next week or so...

Anyway, I've had good luck thus far fermenting in my basement underneath my workbench (I'll try to get a picture up of the current setup), but I'm hitting the time of year that, for whatever reason, even my basement climbs up well into the 70's, sometimes 80's. I've got two brews going at the moment who wrapped up the really active part of their fermentation last week - right up around 68F. Definitely time to do something about temp control before I get another brew going!

A couple months ago, my mother-in-law hooked me up with a little Magic Chef dorm-sized fridge her office was getting rid of:


This has sat in the basement since, and basically been used as a stand to place things on next to my utility sink. Time to put that thing to a better use, I say!

I've been playing with ideas for the chamber for a while now, and finally decided on a plan... The chamber will be 5' long, counting the fridge. This should provide plenty of space for a pair of carboys and even a corny or two for bulk aging. I basically decided I didn't want to build something, simply to outgrow it in a year or less and have to re-do it all. I think this should fit the bill nicely.

Last night I cut all the frame members for my chamber, drilled out the holes (I'm putting it together with pocket screws because... well... I've got a Kregg pocket hole jig and wanted to play with it!).

The base:


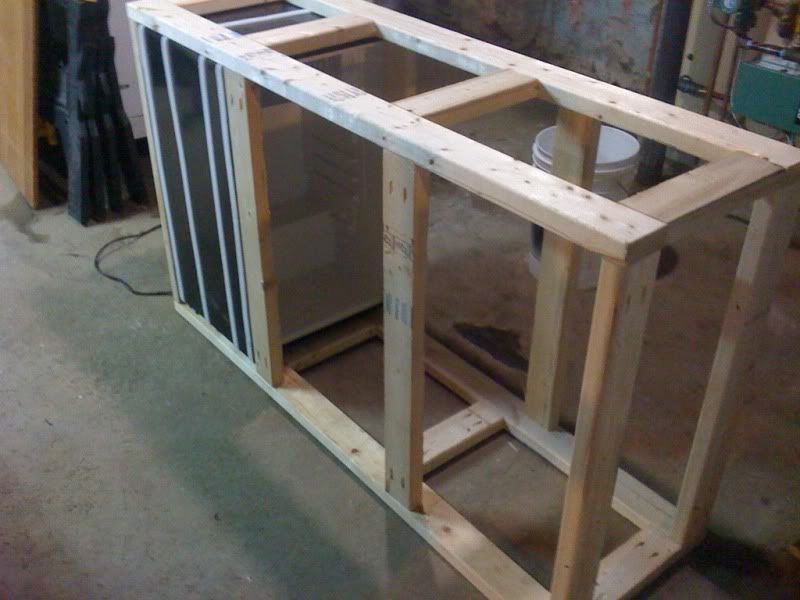

The base with the fridge in place and the first four vertical members - note, the top isn't actually attached yet - still have a little work to do to get things to fit before I make anything any more permanent:

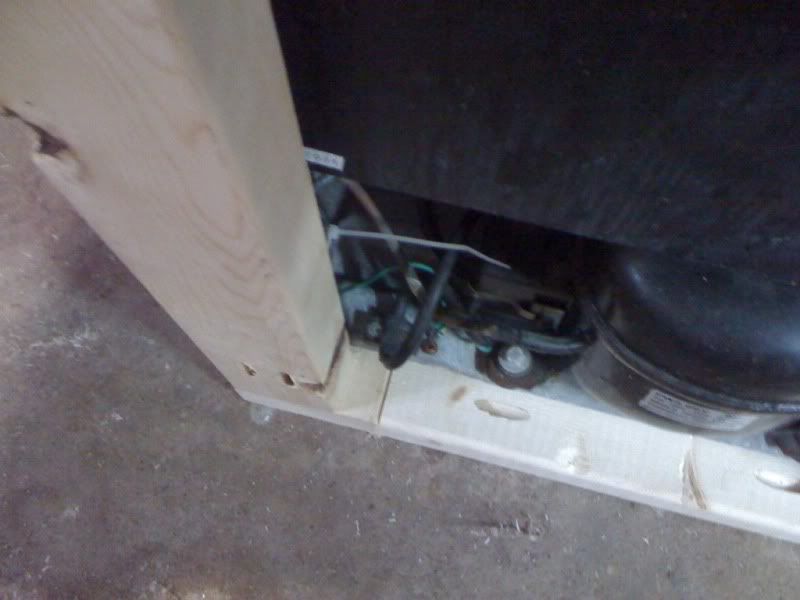

So, again something I don't have a picture of, but I ran into my first minor hurdle when I test-fit this together: There's a small relay on the back of the fridge, right near the compressor, that has a wire protruding just a bit from the back of the fridge - right into one of the 2x4 vertical members. So, I need to either take a chisel and hollow out the corner of that 2x4, replace that one with a 2x3 (not sure if that'll even give me enough room), or relocate that relay.

I may or may not get to work on this thing any further tonight - definitely will get back to it a little Thursday and Friday though.

My overall plan calls for this frame to be sheathed with some utility-grade plywood (looking for function, not necessarily form!), then rigid foam insulation in the spaces within the frame, more rigid insulation just inside of that, and quite possibly plastic sheeting to make it all pretty and condensation-friendly... (Thanks goes out to another active build thread of that particular idea!)

I do have a set of casters to keep this thing movable, and I'll probably be putting together an ebay temp controller once the chamber itself is complete.

__________________
stratslinger is offline
Bigscience Likes This
Reply With Quote Quick reply to this message
Old 06-28-2011, 05:17 PM   #2
Bucks-04
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: DC
Posts: 167
Liked 1 Times on 1 Posts

Default

Good luck with the build. Can't wait to see progress and it finished.

One thing I did was get to small of casters. Makes it a pain the as and I will most likely upgrade mine.

__________________
Bucks-04 is offline

Reply With Quote Quick reply to this message
Old 06-28-2011, 05:30 PM   #3
Brandonovich
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2011
Location: Fort Worth, Texas
Posts: 189
Liked 5 Times on 5 Posts
Likes Given: 7

Default

Is this a proven design, or an experiment? I have a fridge that would be perfect for this, and I would love to try this out.

__________________
Brandonovich is offline

Reply With Quote Quick reply to this message
Old 06-28-2011, 07:00 PM   #4
stratslinger
Brewing Thespian
Feedback Score: 0 reviews

stratslinger's Avatar
Recipes

Join Date: Dec 2010
Location: Terryville, CT
Posts: 1,830
Liked 106 Times on 92 Posts
Likes Given: 82

Default

Bucks - thanks for the advice... I'll double-check the pictures in your thread, but yours seemed close in size to what I've got. Maybe I'll have to go a little bigger?

And Brandonovich - I've seen a ton of variations on this basic design. Seems to be pretty well proven out from what I can tell.

__________________
stratslinger is offline

Reply With Quote Quick reply to this message
Old 06-28-2011, 09:00 PM   #5
EFaden
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2006
Location: Rochester, New York
Posts: 546
Liked 12 Times on 12 Posts
Likes Given: 1

Default

Tagging this. I want to see it. Thinking about doing the same thing.

__________________

-Eric

EFaden is offline

Reply With Quote Quick reply to this message
Old 06-29-2011, 01:37 PM   #6
stratslinger
Brewing Thespian
Feedback Score: 0 reviews

stratslinger's Avatar
Recipes

Join Date: Dec 2010
Location: Terryville, CT
Posts: 1,830
Liked 106 Times on 92 Posts
Likes Given: 82

Default

I made about another 30 minutes' progress on this (busy damn near every night this week)... Does that mean I don't have too much stuff to share?

Hell no, I say!

I took a couple measurements and decided that replacing that one vertical 2x4 with a 2x3 would easily give me the clearance I needed, so that was a nice easy swap (BTW, assembling this thing with pocket screws makes this kind of swap out SUPER easy - so much so that I'm half considering taking apart most of those joints and reinforcing them with some wood glue). This picture shows the new 2x3 in place and the clearance for the protruding relay:



The only other real progress I've made was to remove the door from the fridge and remove the flap over the freezer compartment, then test-fit the fridge to be sure all's still moving according to plan:



Next steps will include applying a bunch of weather stripping, strategically placed around the fridge, to hopefully insulate the fridge end of the box and help hold the fridge in a relatively steady position, then complete construction of the frame. Tonight and, probably tomorrow night too, I'll be busy with other things, so there won't be a whole lot of progress to share on here until the weekend.

One thing I will NOT be doing is bending down the freezer coils. This picture should illustrate exactly why I think such an effort would be a fool's errand with this particular fridge:



Most of the fridges I've seen on the boards here have the supply line running to the bottom of the coil, so they're relatively easy to bend down. This one is halfway up the side... I suppose I could try bending the entire coil down to the side of the fridge, but I really don't see that that's going to get me anything that I wouldn't get from a well-positioned fan or two, so I'll leave the coil alone and plan to go the fan route.

So, at this point, some of you might be asking "what the hell is a pocket hole jig or a pocket screw?". Basically, it's a cool way to join wood that basically results in very well controlled, countersunk, toe-nailed screw joints. I've used my pocket hole jig mostly when assembling face-frames for cabinets (I built half a dozen cabinets for my workshop a couple years back - neat project that). But they also work quite well for 2x4 framing!

Here's the scoop:

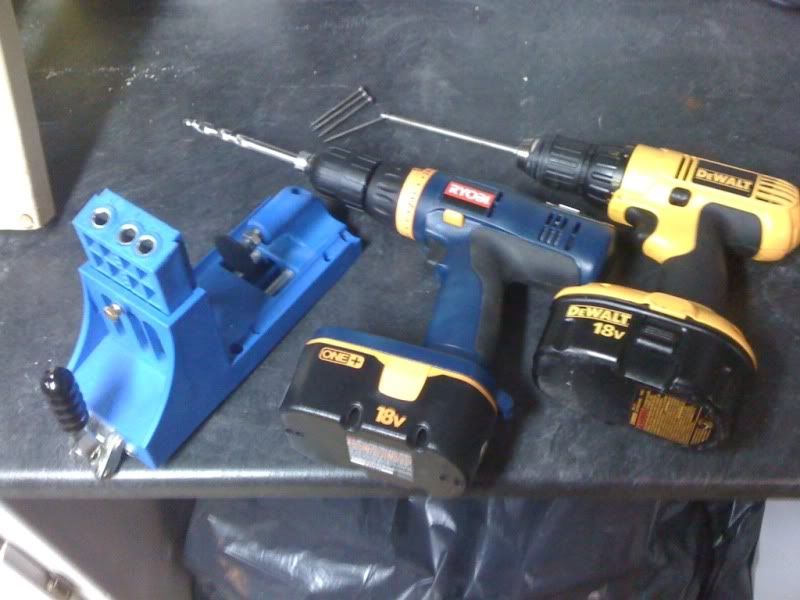

Basically, you have this cool clamp-on jig that helps you line up the pocket holes, and a pair of drill bits - one for drilling the holes, the other for driving the screws.



You adjust the jig for the size of the material you're using (you want to drill a pocket hole into a 3/4" piece of wood to a very different depth than you want to drill one on a 2x4, for instance), then clamp the jig onto the piece of wood, then drill out the holes. There's three holes on the jig for various hole placements - it's typically enough to put two screws into each workpiece. Though if you want to overengineer, the sky's the limit!

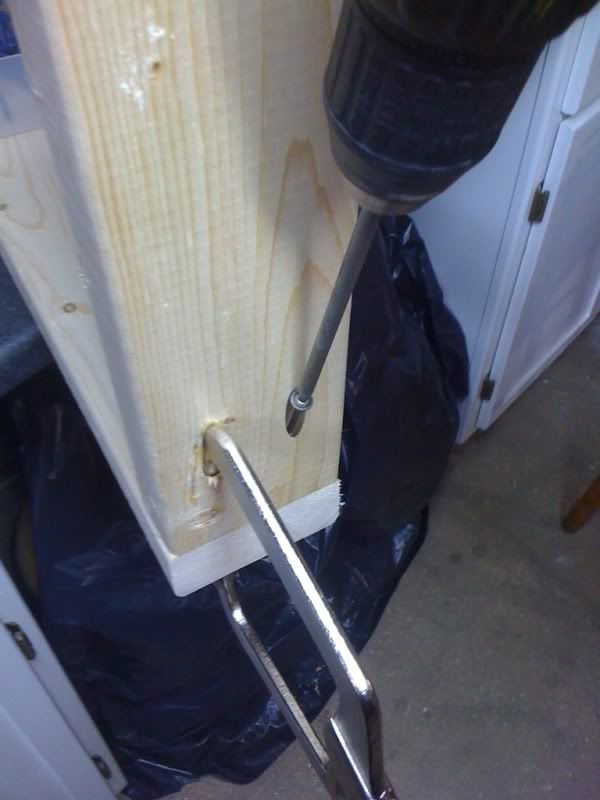

Lastly, you use one of a couple different clamps to hold the pieces together in the right position (effectively giving you another hand) and start driving screws.
