Default All Electric All Grain Brew Rig build in progress, need electrical review

Good afternoon and let me first say thank you to all those who took the time to post their DIY projects on this beautiful forum. If I could remember all of your names I would gladly give you credit. However as to not waste time, I'll get this going.

I'm building out a single tier all electric RIMS brew station in my cellar and have sourced a good amount of the parts, including pumps, kettle hardware, however the majority of my time so far has been spent on designing and constructing my controller. Since I'm going to be bringing 110v in to power the PID's and pumps, and 240v in for the 4500w heaters in my HLT and Brew Kettle, this took a lot of research and patience in order not electrocute myself.
First of all, I have a 30 amp GFCI breaker installed in the panel where my old 240v dryer was wired, and I have a separate 110v GFCI as well. All my cable hookups are 3 connection twist lock and will connect vertically into my panel.

What I request of you with electrical backgrounds is to review what I've done so far and tell me if you see anything glaring or downright dangerous. Note that the HTL and BK will either be SS pots or keggles and the heating elements will be grounded to the pots.

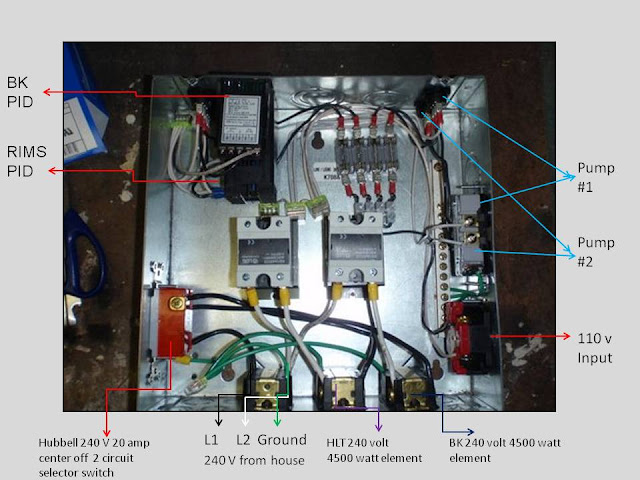

Here's it so far with some labeling, please excuse the 10 AWG white colored wire for my second hot on the 240v.


Please let me know what you think. I will continue to post my project as time and wife and job and children permit.

Flananuts

__________________

flananuts is offline

Reply With Quote Quick reply to this message
Old 01-21-2009, 12:25 AM   #2
stevehaun
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2006
Location: hudson, wi
Posts: 566
Liked 13 Times on 13 Posts
Likes Given: 22

Default

I have a question about the power inputs to your panel. If I understand the picture correctly, you have a female outlet for both the 240 vac and 120 vac inputs. This implies that your power cord will have a "hot" male end. If I am understanding this correctly, it is extremely dangerous.
It would also be safer to have a single power input. You could run a 4 wire power cord from your panel to the outlet for your 30 amp 240 vac GFI breaker. You could add a power distribution block (about $25 ebay or surplus) to your panel and run your 120 vac and 240 vac circuits from a single power input.
Obviously, you would need to change the outlet for your 30 amp 240 vac GFI breaker to a 4 prong outlet and the power cord would need a 4 prong male end.

__________________
stevehaun is offline
Bellwood Likes This
Reply With Quote Quick reply to this message
Old 01-21-2009, 11:52 AM   #3
flananuts
Feedback Score: 0 reviews

flananuts's Avatar
Recipes

Join Date: Dec 2008
Location: Monmouth County, NJ
Posts: 507
Liked 1 Times on 1 Posts

Default

Thanks for the response. I see what you mean about potentially having a hot male connection and will definitely hard wire my power connection to my controller and split out the 110 and 240. I do have a follow up question. From an amps perspective my heating elements shouldn't be more than 18amp draw at peak and only one element at a time. I can't imagine drawing more than say 2 amps on the pumps and PID's at max. Do you see any reason why I would run into any problems just pulling power from the 240 vac circuit?

Could I also just bypass this and pigtail one hot and neutral over to my 110 needs

Thanks

Flananuts

__________________

flananuts is offline

Reply With Quote Quick reply to this message
Old 01-22-2009, 01:06 AM   #4
stevehaun
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2006
Location: hudson, wi
Posts: 566
Liked 13 Times on 13 Posts
Likes Given: 22

Default

Worst case scenario:
4500 watt element pulls about 20.5 amps (4500/220)
Each march pump pulls about 1.2 amps
Your PIDs will pull less than 0.5 amps each
Total: 23.9 amps
Well below the limits of your 30 amp breaker. You will be fine.

I am not sure what you mean by pigtailing a hot and neutral. I think adding a small power distribution block with 3 poles (2 hot and 1 neutral) on the input side would be perfect. You will also need a grounding bar for all your grounds.

Here is a distribution block on ebay:
Square D-Distribution Block- 3 Phase- 2/0 to #14 Wire - eBay (item 350154672733 end time Jan-24-09 09:01:01 PST)

__________________
stevehaun is offline

Reply With Quote Quick reply to this message
Old 01-22-2009, 11:47 AM   #5
flananuts
Feedback Score: 0 reviews

flananuts's Avatar
Recipes

Join Date: Dec 2008
Location: Monmouth County, NJ
Posts: 507
Liked 1 Times on 1 Posts

Default

Thanks for the suggestion and the link to the block. I'm going to make the changes. There is a grounding bar in the box now. I can run both my 110 and 240 grounds to that right, then return ground via my 4 wire connection back to the circuit breaker?

Thanks

Flananuts

__________________
flananuts is offline

Reply With Quote Quick reply to this message
Old 01-22-2009, 11:52 AM   #6
GranillaNutz
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: the dirty south
Posts: 219
Default

as long as everything's bonded to the ground via ur 4 wire, ur ok... pigtailing should be fine too... don't see the need in a distribution block with that small of wire.

__________________

"Sometimes when i reflect back on all the beer I drink, I feel ashamed. Then i look into the glass and think about all the workers in the brewery and all their hopes and dreams. If I didn't drink this beer, they might be out of work, and their dreams would be shattered. Then i say to myself, "it's better that i drink this beer and let their dreams come true than to be selfish and worry about my liver."" -jack handy

GranillaNutz is offline

Reply With Quote Quick reply to this message
Old 01-22-2009, 12:32 PM   #7
IrregularPulse
Hobby Collector
Feedback Score: 0 reviews

IrregularPulse's Avatar
Recipes

Join Date: Nov 2007
Posts: 43,201
Liked 2779 Times on 2727 Posts
Likes Given: 121

Default

Quote:
Originally Posted by stevehaun View Post
Worst case scenario:
4500 watt element pulls about 20.5 amps (4500/220)
Each march pump pulls about 1.2 amps
Your PIDs will pull less than 0.5 amps each
Total: 23.9 amps
Well below the limits of your 30 amp breaker. You will be fine.

I am not sure what you mean by pigtailing a hot and neutral. I think adding a small power distribution block with 3 poles (2 hot and 1 neutral) on the input side would be perfect. You will also need a grounding bar for all your grounds.

Here is a distribution block on ebay:
Square D-Distribution Block- 3 Phase- 2/0 to #14 Wire - eBay (item 350154672733 end time Jan-24-09 09:01:01 PST)
I wouldn't say your total current draw is WELL below your limit. You'r drawing 23.9A where 80%(recommended limit) of your breaker is 24A. Still within limit safely, I wouldn't go adding much more thinking you've got tons of room to play with.

It'd also be easier to fully examine the circuit with a schematic. I don't personally know the connections to those components from looking at them. Some may through experience with them though.
And I agree with the Male plug carrying the 240V. Scary stuff. you bump into the plug hanging there, OUCH! actually you might not feel anything
Have you thought of using a manual lever on/off for the sub panel as well?
__________________
Tap Room Hobo

I should have stuck to four fingers in Vegas. :o - marubozo
IrregularPulse is offline

Reply With Quote Quick reply to this message
Old 01-22-2009, 02:16 PM   #8
flananuts
Feedback Score: 0 reviews

flananuts's Avatar
Recipes

Join Date: Dec 2008
Location: Monmouth County, NJ
Posts: 507
Liked 1 Times on 1 Posts

Default

I understand the schematic request, and if I had the time and know how I would. The toggle switch to the bottom left is a 2 cicuit center off 240v Hubble switch. So If the switch is in the off position and the PID's are off, neither of the hot leads have the potential of being hot. Regarding the two males, I always intended the male to the controller to be always plugged in, but removeable for storage and breakdown. I do plan to change that based on the comments to my design( thanks!). Regarding the draw, the 20amps on the heater would only be at full draw which I don't imagine I would be at, more like 17-18 amps drawn when under load.(but then again, I sell video ad technology and am self taught on electricity)

Flananuts

__________________

flananuts is offline

Reply With Quote Quick reply to this message
Old 05-03-2009, 12:26 AM   #9
flananuts
Feedback Score: 0 reviews

flananuts's Avatar
Recipes

Join Date: Dec 2008
Location: Monmouth County, NJ
Posts: 507
Liked 1 Times on 1 Posts

Default UPDATE- All electric basement brew rig takes on life

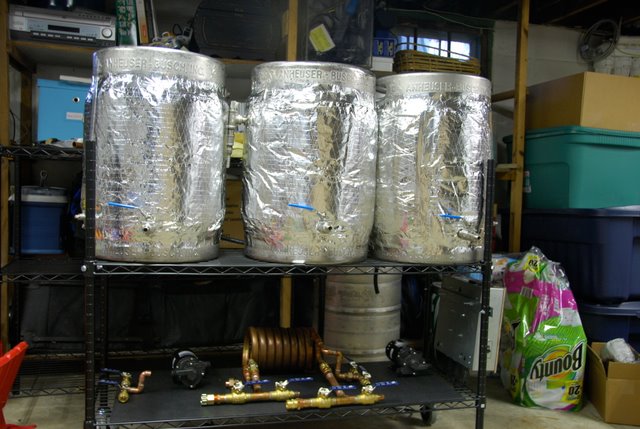

It's been a while since I added to this thread. I wanted to post some pics of where the rig is as of this morning. It's definitely coming along and will be done sooner than I thought. I take no credit for any originality in this build. It's totally constructed based on all the great ideas from virtually everyone on this forum with a lot of thought on my part. Please feel free to share thoughts or ideas or criticism(constructive only please)

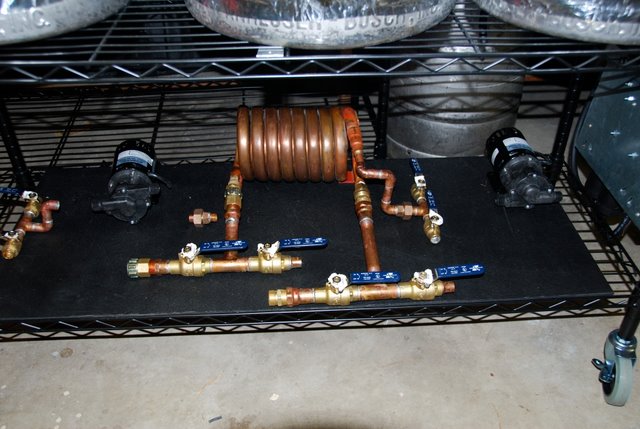

Close up of pumps, heat exchanger/chiller and valves


Thanks for looking
