Originally Posted by loetz
Where did you get that mesh hop filter? Did you make it? It seems to fit the height of your bk perfectly. I would love to have one of those myself...
A member on here makes them, chads454
. He'll make them to your specs and the prices are very reasonable IMO. I got the 4" diameter version, though I'm a bit concerned with utilization right now. Might upgrade to the 6" diameter in the future.

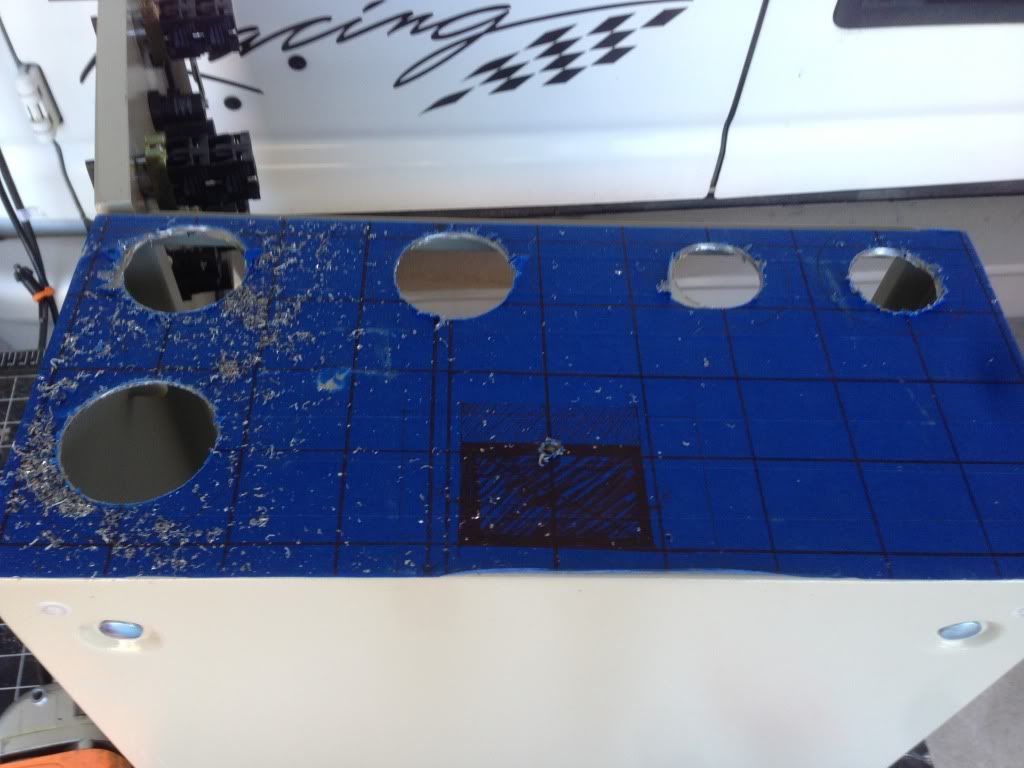

Actually made progress today, finally got the bottom holes drilled. Crappy pic before I cut out the area for the cat 5 jacks:
The holes were pretty annoying. The 2-1/8" hole was slightly small and required some extra time with a drill to fit the power inlet. The 2" holes were not bad (despite being the ones that had a caveat in the tools list in the eBrewSupply instructions), I touched them up with a sandpaper bit and they were nice and smooth. The 1-1/2" holes were notably smaller than they should have been. I completely destroyed my sandpaper bit removing enough material to get the pump outlets to fit. I'd recommend a 1-5/8" hole saw here, it shouldn't interfere with the two screw holes and it will be way easier overall. Also, despite my best efforts, everything isn't lined up quite as nicely as I had hoped. Meh, just aesthetics.
I need to chop a bit off my DIN rail to mount up the contactors (went with the cheaper ones) and I should be set to mount everything inside. Then on to wiring. At some point I'll get serious about the kettles too, though I need to keep one intact as my interim brew kettle for the time being.
