Default $60 Carboy and Bottle Washer

Wanted a cheap and easy way to wash my bottles and my carboys. This setup can wash 1 carboy, 5 bottles, or 10 bottles based upon which valves are turned. Pump is a Barracuda and can output about 1500 gph. Cost came in just under $60 NOT including the container. The nice thing is that for storage I can simply put the top on the container and put it on a shelf. No need to break down the tubes or disconnect anything.

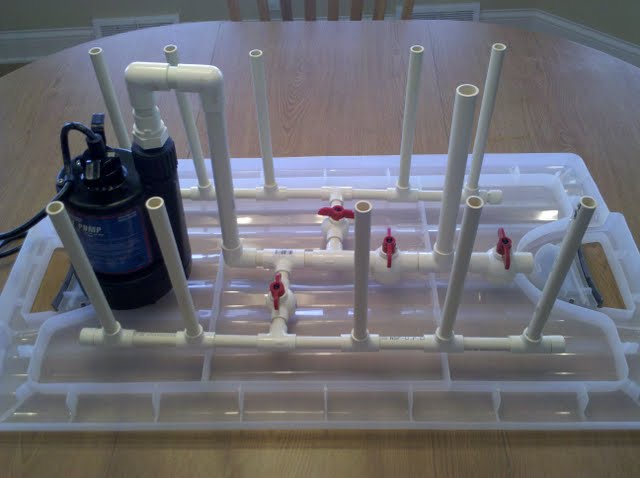

Basic Setup Not Installed in Rubbermaid Container

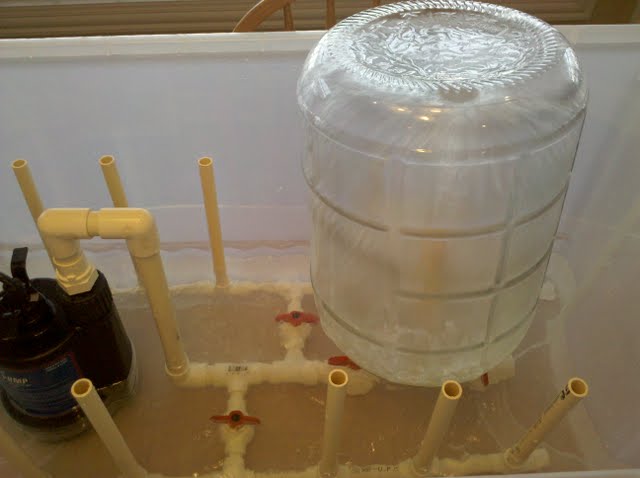

In Carboy Washing Mode

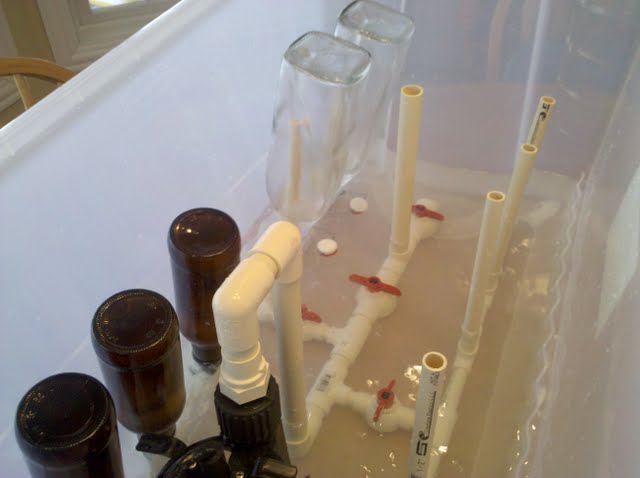

In Bottle Washing Mode (bottles are submerged about 1")

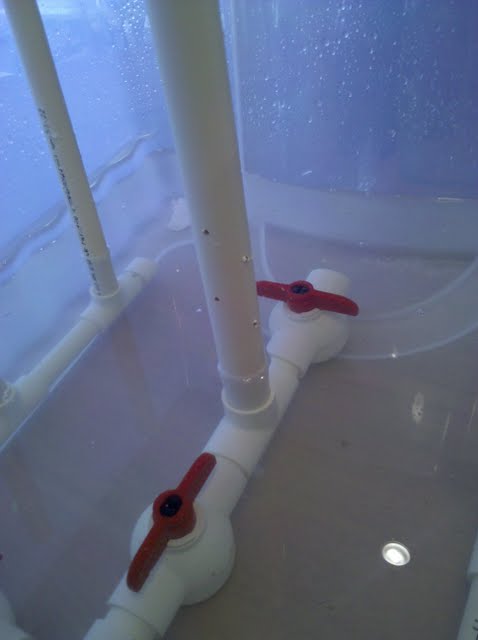

To aid in removing fermenting residue drill small holes near the bottom of the carboy washing tube. These will act as little jets to pressure wash the head space of the carboy.
