Default 55 gal drum mash tun - false bottom ideas?

I'm building a 1.5 BBL system from 55 gallon stainless drums. I feel good about my plan for all components except for the false bottom for the mash/lauter tun. Anyone have any ideas what should be done here? I would spend a little money for the right equipment, for example paying for a custom false bottom that I could drop in. I was also considering a cpvc manifold, but I'm worried about having to un-secure the manifold from bulkhead fitting when cleaning. A false bottom can just be lifted out as it isn't attached to anything.

Does anyone know where a false bottom can be purchased for a 55 gallon drum? I can't see any examples where someone may have done this successfully before. For example, has anyone seen the blichmann false bottom for their 55gallon boilermaker used successfully in a 55 gallon drum?

Thanks in advance. Just looking for some direction from the collective HBT think tank.

__________________
Pangea is offline

Reply With Quote Quick reply to this message
Old 09-28-2009, 06:46 PM   #2
CodeRage
Death by Magumba!
Feedback Score: 0 reviews

CodeRage's Avatar
Recipes

Join Date: Aug 2007
Location: Melbourne, Fl
Posts: 2,254
Liked 29 Times on 16 Posts
Likes Given: 5

Default

Here is a sheet of perforated metal that you can make your own with. I took a swag at the hole diameter.
http://www.mcmaster.com/#9358t311/=3twqqg

__________________
Brutus 20e build | Electrical Primer for Brewers | Auber SYL-2362A2 PID Install & Config
So as I am walking out the door this morning I think to my self:
"self, going to work on Monday is like knowing you're going to get kicked in the nuts. You just don't know when or by who"
CodeRage is offline

Reply With Quote Quick reply to this message
Old 09-28-2009, 07:12 PM   #3
Pangea
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Location: Lafayette, LA
Posts: 325
Liked 4 Times on 4 Posts

Default

Quote:
Originally Posted by CodeRage View Post
Here is a sheet of perforated metal that you can make your own with. I took a swag at the hole diameter.
http://www.mcmaster.com/#9358t311/=3twqqg
Hmm.. Yep, that would work. I guess drains could be in the bottom of the drum, with this perforated plate over the top - just resting on the drum bottom. This is the same concept I have on my keggle system now, but the perforated false bottom has a hinge in the middle so it can be folded for removal. I'm talking to the guy who made it for me originally to see if he could do something similar, yet larger, for a 55 gallon drum - which would need to be about 22" diameter.
__________________
Pangea is offline

Reply With Quote Quick reply to this message
Old 09-28-2009, 07:36 PM   #4
CodeRage
Death by Magumba!
Feedback Score: 0 reviews

CodeRage's Avatar
Recipes

Join Date: Aug 2007
Location: Melbourne, Fl
Posts: 2,254
Liked 29 Times on 16 Posts
Likes Given: 5

Default

Quote:
Originally Posted by Pangea View Post
Hmm.. Yep, that would work. I guess drains could be in the bottom of the drum, with this perforated plate over the top - just resting on the drum bottom. This is the same concept I have on my keggle system now, but the perforated false bottom has a hinge in the middle so it can be folded for removal. I'm talking to the guy who made it for me originally to see if he could do something similar, yet larger, for a 55 gallon drum - which would need to be about 22" diameter.
Just doing a little brain dumping here if you are looking to DIY.
yeah, you could also put some stainless screws through it with some nuts as a stand off. Cut two halves out of it so they over lap and drill a pickup tube for it if a drain in the bottom is a problem.
__________________
Brutus 20e build | Electrical Primer for Brewers | Auber SYL-2362A2 PID Install & Config
So as I am walking out the door this morning I think to my self:
"self, going to work on Monday is like knowing you're going to get kicked in the nuts. You just don't know when or by who"
CodeRage is offline

Reply With Quote Quick reply to this message
Old 09-28-2009, 08:55 PM   #5
nickpgoodman
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: Bedford, TX
Posts: 61
Liked 1 Times on 1 Posts

Default

Our club system is a 100 gallon rubbermaid stock tank, we use a Bazooka T, I'd be willing to bet you could do the same since it's only 50 gallons.

Actually, ours is two of the Bazooka 12" pieces but we made our own Tee if I recall.





http://www.northernbrewer.com/brewing/mash-boil-screen.html

__________________

Last edited by nickpgoodman; 09-28-2009 at 09:01 PM.
nickpgoodman is offline

Reply With Quote Quick reply to this message
Old 09-28-2009, 11:34 PM   #6
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,271
Liked 58 Times on 50 Posts
Likes Given: 111

Default

I have a 25" diameter false bottom in my 200 liter (52 gallon) combination mash/later tun.
Beer Beer & more Beer made it to my specifications a few years ago.
They have always done a great job for me.



The only change I would do the next time, make a two or three piece design.


Cheers,
ClaudiusB

ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 09-29-2009, 12:20 AM   #7
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,884
Liked 932 Times on 619 Posts
Likes Given: 27

Default

What kind of insulation are you thinking of using for a 55g drum? How do you suppose you're going to stir that thing? A boat oar? How will you supply heat if necessary?

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?

Last edited by Bobby_M; 09-29-2009 at 12:23 AM.
Bobby_M is online now

Reply With Quote Quick reply to this message
Old 09-29-2009, 02:07 AM   #8
brewpal
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2008
Location: Salem, OR
Posts: 113
Liked 13 Times on 9 Posts

Default

Suggestions:

Pumping strike water into the mash tun:

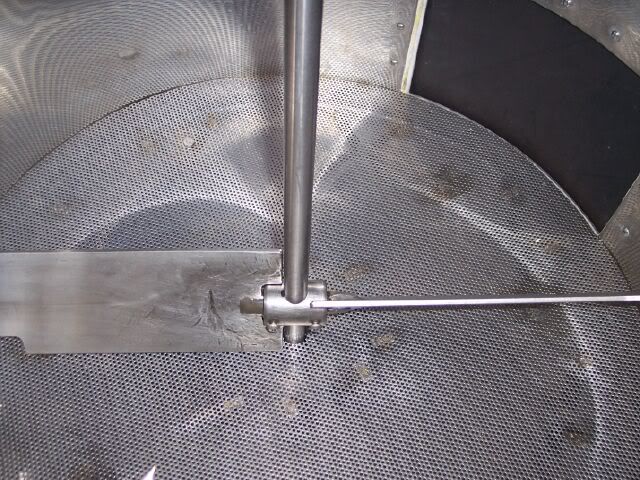

False bottom in mash tun. It is a perf screen originally designed to fit a sanke kettle. Works great in this configuration. Held down firm by pressure from copper pipe:

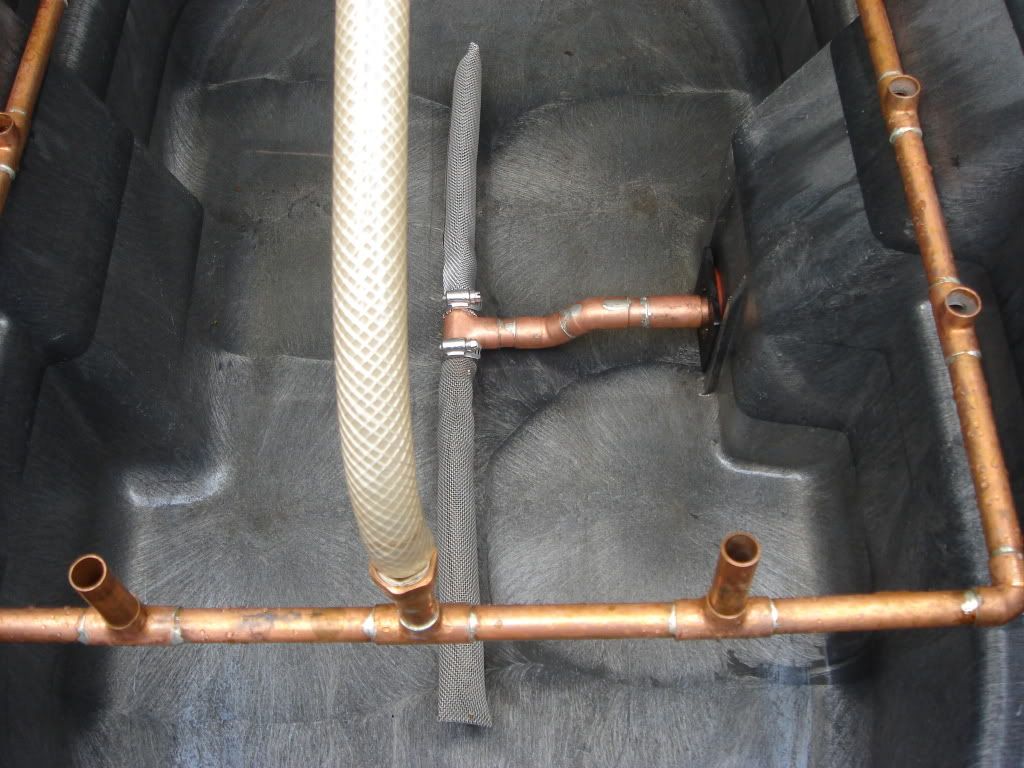

Boil kettle hop filter is a LARGE hose braid (about 1.5" diam). Just starting to collect run-off:
