Default Which 240v receptacle???

Good grief, I didn't realize there was 10 choices. 3 wire, 4 wire( I assume I want one of these?), 30amp, 50amp, endless choices! I do want one that will go into a box(recessed in wall), I don't want a giant tumor hanging off the wall. And my shopping choices are limited to Lowe's, unless there's an online source.

What say you, electric brew genies?

__________________
wildwest450 is offline

Reply With Quote Quick reply to this message
Old 06-18-2010, 08:59 PM   #2
Henrythe9th
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Redmond OR, Oregon
Posts: 327
Liked 5 Times on 5 Posts
Likes Given: 12

Default

4 wire 50 amp drier style,, even if your only going to 3 wires its cheaper than a 3 wire 50 amp welding socket and plug,, and you can put a common in it for a 240 gfi

__________________
Henrythe9th is offline

Reply With Quote Quick reply to this message
Old 06-18-2010, 09:57 PM   #3
Stickshaker
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Minnesota
Posts: 190
Liked 2 Times on 2 Posts

Default

Quote:
Originally Posted by Henrythe9th View Post
4 wire 50 amp drier style,, even if your only going to 3 wires its cheaper than a 3 wire 50 amp welding socket and plug,, and you can put a common in it for a 240 gfi
There is no such thing as a 50 amp dryer style. Dryers are 30 amps, ranges and welders are 50 amps. I'd suggest a 50 amp range (4 wire) plug and receptacle. And its not a common, its a neutral or grounded conductor.
__________________
Stickshaker is offline

Reply With Quote Quick reply to this message
Old 06-18-2010, 09:58 PM   #4
Stickshaker
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Minnesota
Posts: 190
Liked 2 Times on 2 Posts

Default

Sorry if that sounded douchebaggish, I was just trying to clarify...

__________________
Stickshaker is offline

Reply With Quote Quick reply to this message
Old 06-18-2010, 10:11 PM   #5
Budzu
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: Chattanooga, TN
Posts: 793
Liked 16 Times on 15 Posts

Default

You need to figure how much current you'll need and if you need 110v included. What are the components you'll be powering? Specifically heating elements.
I have 2 twistloc 30amp 3 wire outlets that I don't need.

__________________
Countertop Brutus Budzu-style

Last edited by Budzu; 06-18-2010 at 10:14 PM.
Budzu is offline

Reply With Quote Quick reply to this message
Old 06-18-2010, 10:26 PM   #6
SweetSounds
Feedback Score: 1 reviews
Recipes

Join Date: Jan 2010
Location: Des Moines, Iowa
Posts: 1,429
Liked 18 Times on 17 Posts
Likes Given: 4

Default

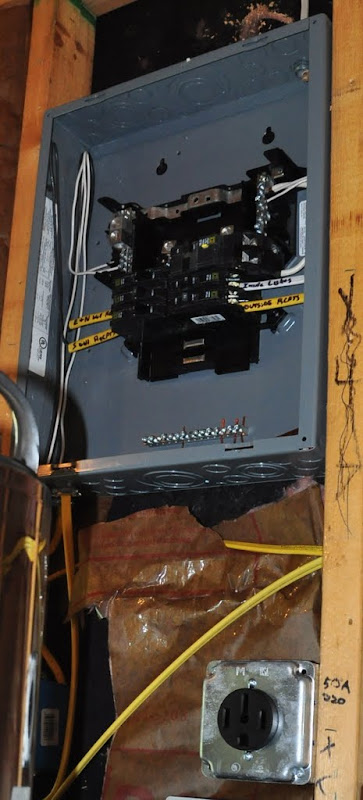

50 Amp 4-Wire plug mounted and ready for drywall (And the panel that feeds it...)



Left to right - Hot 1, Neutral, Hot 2, with the ground at the bottom in the middle...

It's not wired to the panel yet. I'm waiting until next weekend after I have the main feed trenched over from the house

The panel:

__________________
Quote:
Originally Posted by Ecnerwal View Post
What does the primary pressure gauge on the tank tell us? That's right, the temperature. Put it on a scale if you want to know how much is in it...
Put some duct tape over the gauge - Or better yet - Replace the high pressure gauge with a plug - High pressure gauges are useless!

Last edited by SweetSounds; 06-18-2010 at 10:28 PM.
SweetSounds is offline

Reply With Quote Quick reply to this message
Old 06-18-2010, 11:10 PM   #7
Stickshaker
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Minnesota
Posts: 190
Liked 2 Times on 2 Posts

Default

Quote:
Originally Posted by SweetSounds View Post
50 Amp 4-Wire plug mounted and ready for drywall (And the panel that feeds it...)
If you take the receptacle back out, and replace the raised cover with a 2 gang mud ring before you drywall, you can mount it flush with a regular plate and it will look much cleaner...
__________________
Stickshaker is offline

Reply With Quote Quick reply to this message
Old 06-18-2010, 11:15 PM   #8
SweetSounds
Feedback Score: 1 reviews
Recipes

Join Date: Jan 2010
Location: Des Moines, Iowa
Posts: 1,429
Liked 18 Times on 17 Posts
Likes Given: 4

Default

Quote:
Originally Posted by Stickshaker View Post
If you take the receptacle back out, and replace the raised cover with a 2 gang mud ring before you drywall, you can mount it flush with a regular plate and it will look much cleaner...
I'll have to find one of those

Thanks!
__________________
Quote:
Originally Posted by Ecnerwal View Post
What does the primary pressure gauge on the tank tell us? That's right, the temperature. Put it on a scale if you want to know how much is in it...
Put some duct tape over the gauge - Or better yet - Replace the high pressure gauge with a plug - High pressure gauges are useless!
SweetSounds is offline

Reply With Quote Quick reply to this message
Old 06-19-2010, 03:32 AM   #9
wildwest450
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Posts: 9,099
Liked 165 Times on 150 Posts
Likes Given: 4

Default

Quote:
Originally Posted by Budzu View Post
You need to figure how much current you'll need and if you need 110v included. What are the components you'll be powering? Specifically heating elements.
I have 2 twistloc 30amp 3 wire outlets that I don't need.
Ok, i'm confused. I have the capability of running two 30 amp circuits. Or a 40 and a 30 amp. Which ever. btw, i'm smashed. my badz
__________________
wildwest450 is offline

Reply With Quote Quick reply to this message
Old 06-19-2010, 03:55 AM   #10
Budzu
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: Chattanooga, TN
Posts: 793
Liked 16 Times on 15 Posts

Default

No worries, just wondering what your power needs are going to be. If you'll run electric element or elements and pump or pumps, what wattage etc. You'll probably want all of your components to run off a single gfci breaker.
