Default 10 gallon batches - boiling all electric

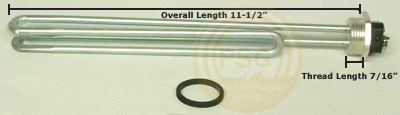

I've decided to move up to 10 gallon batches. I'm already all electric. I currently boil -- 7 gallons -- with a 4500W element that looks like this:



I can get 5500W elements at local hardware store that look the same. Is 4500W good enough, or should I move up to a 5500W? According to my calculations, to go from 170 (mash-out) to boiling with 12 gallons should take 17 minutes with 4500W and 14 minutes with 5500W. Does that seem reasonable in reality?

Also, I've never had any scorching issues with my element, but should I get a RIPP element like this:



I can't seem to find them locally and would have to order one. Is it worth it?

__________________
bakins is offline

Reply With Quote Quick reply to this message
Old 12-04-2009, 04:05 AM   #2
wilserbrewer
Vendor
Vendor Ads
Feedback Score: 9 reviews

wilserbrewer's Avatar
Recipes

Join Date: May 2007
Location: Jersey Shore, Jersey
Posts: 6,515
Liked 380 Times on 325 Posts
Likes Given: 8

Default

I would try the 4500 w, if you are unhappy or impatient, then step up. 5500w at full power might be a fairly rapid boil??? Also depends upon your kettle and the conditions you brew in.

__________________
wilserbrewer
BIAB Bags, Hop Bags and Ratchet Pulleys for sale

Expert tailor and supplier of custom sized, top quality BIAB bags, hop bags and ratchet pulleys at reasonable pricing

http://biabbags.webs.com/


CORONA MILL BUCKET SYSTEM V. 2.0
wilserbrewer is offline

Reply With Quote Quick reply to this message
Old 12-04-2009, 11:55 AM   #3
LooyvilleLarry
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2008
Location: Louisville,KY
Posts: 988
Liked 4 Times on 4 Posts
Likes Given: 2

Default

4500 is plenty. I've had both. There is a difference between the two elements that you show though- The top one, if you dry-fire it for like 10 seconds, you get to replace it. I think the RIPP one is slightly more tolerant, but probably twice the price.

__________________
Primary
Orange Cascade Pale Ale -

Secondary

Kegged
BeeCave Haus Ale - 6%
Bells Two Hearted, round 2- 6.1%
SNPA Clone (Chilled )
Hard Lemonade

Shiraz - 6 gal
LooyvilleLarry is offline

Reply With Quote Quick reply to this message
Old 12-04-2009, 12:01 PM   #4
Brewing Clamper
Feedback Score: 0 reviews

Brewing Clamper's Avatar
Recipes

Join Date: Apr 2006
Location: Union City, CA
Posts: 2,862
Liked 16 Times on 15 Posts
Likes Given: 2

Default

I do 10g batches with a 4500w bk. It's plenty. It doesn't take long to get 13g boiling and I lose about 2.5g in during the boil. It roars...

__________________

--Omar

4 Ohms Aleworks & Lagers | Twitter | Facebook | Blog |

Brewing Clamper is offline

Reply With Quote Quick reply to this message
Old 12-04-2009, 12:30 PM   #5
keiths
Feedback Score: 0 reviews

keiths's Avatar
Recipes

Join Date: Apr 2007
Location: Coldwater, Michigan
Posts: 348
Liked 1 Times on 1 Posts

Default

I use a 4500w ripp and I brew 15 gal batches. I boil for 90 min. Works just fine

__________________
keiths is offline

Reply With Quote Quick reply to this message
Old 12-04-2009, 12:36 PM   #6
The Pol
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2007
Posts: 11,616
Liked 51 Times on 48 Posts

Default

You can get a 5500W RIPP element for $18? I use the RIPP, becuase for the price, why not really? If you can handle the amp load, Id go with the RIPP

EDIT: I see you already have the 4500W... dont bother with the RIPP

Set your PID to 180F in the kettle while you sparge, your boil time will be very short from 180F even with 4500W.

__________________

Last edited by The Pol; 12-04-2009 at 12:43 PM.
The Pol is offline

Reply With Quote Quick reply to this message
Old 12-04-2009, 12:37 PM   #7
The Pol
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2007
Posts: 11,616
Liked 51 Times on 48 Posts

Default

Quote:
Originally Posted by Brewing Clamper View Post
I do 10g batches with a 4500w bk. It's plenty. It doesn't take long to get 13g boiling and I lose about 2.5g in during the boil. It roars...
That is a crazy boil off, what % do you run the element?
__________________
The Pol is offline

Reply With Quote Quick reply to this message
Old 12-04-2009, 01:25 PM   #8
Brewing Clamper
Feedback Score: 0 reviews

Brewing Clamper's Avatar
Recipes

Join Date: Apr 2006
Location: Union City, CA
Posts: 2,862
Liked 16 Times on 15 Posts
Likes Given: 2

Default

Quote:
Originally Posted by The Pol View Post
That is a crazy boil off, what % do you run the element?
100% I have it straight to the power. I haven't set it up to run on a PID+SSR yet. Working on it... soon... maybe...
__________________

--Omar

4 Ohms Aleworks & Lagers | Twitter | Facebook | Blog |

Brewing Clamper is offline

Reply With Quote Quick reply to this message
Old 12-04-2009, 03:26 PM   #9
bakins
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Location: West Georgia
Posts: 731
Liked 4 Times on 4 Posts
Likes Given: 1

Default

Quote:
Originally Posted by LooyvilleLarry View Post
The top one, if you dry-fire it for like 10 seconds, you get to replace it. I think the RIPP one is slightly more tolerant, but probably twice the price.
The element I have (which looks like the top one) can be dry fired. Trust me, I know...
__________________
bakins is offline

Reply With Quote Quick reply to this message
Old 12-04-2009, 03:27 PM   #10
bakins
Feedback Score: 0 reviews
Recipes

Join Date: May 2008
Location: West Georgia
Posts: 731
Liked 4 Times on 4 Posts
Likes Given: 1

Default

Quote:
Originally Posted by The Pol View Post
Set your PID to 180F in the kettle while you sparge, your boil time will be very short from 180F even with 4500W.
Sparge? What is this sparge you speak of?

I'm thinking of just trying the existing 4500W one I have. Worse case, I order a RIPP one after a long brew day.

I already have PID's, SSR's etc. I have a 5500W element that I run on 120V for my RIMS, so I may can do some swapping, if needed.

I usually run the 4500W element at about 60% for 5 gallon batches. So, I'm figuring 90% for 10 gallons??
