Default 02 Inline Injector = Ghetto ?

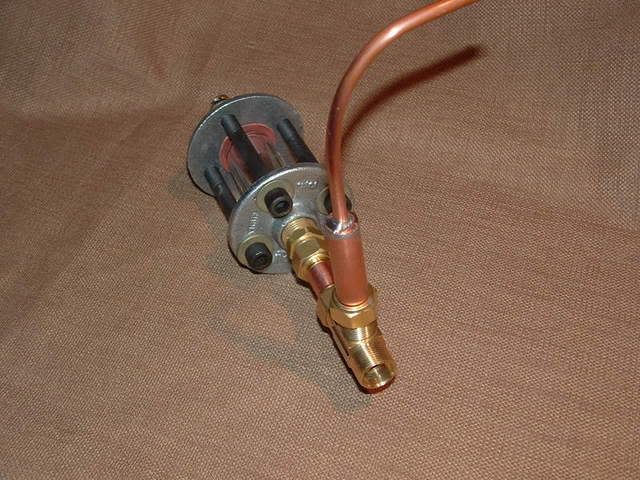

Thought I would show off my Oxy-Injector to get some thoughts, I am in process of replacing the brass with SS fittings, but what makes me ghetto is the sightglass is one of my slide guitar glasses( I never liked the tone of those cheesy Dunlap slides anyway), plus it's pyrex, so it should be easy to clean and sanitize. Not shown is the filter stone, it will contect in the tee via a hose, add some turbidity to the flow of cooled wort, and I can see (via the sightglass ) the o2 process on it's way out to my fermenter. ** I havevn't yet cut the gasket material for the flow, I am waiting on two small flanges:

Thoughts?


__________________
mrbowenz is offline

Reply With Quote Quick reply to this message
Old 12-22-2007, 10:12 AM   #2
Chris_Dog
Orange whip?
Feedback Score: 0 reviews

Chris_Dog's Avatar
Recipes

Join Date: Apr 2007
Location: Orlando, FL
Posts: 1,519
Liked 3 Times on 3 Posts
Likes Given: 1

Default

I think that is very cool! not ghetto at all

__________________
Chris_Dog is offline

Reply With Quote Quick reply to this message
Old 12-22-2007, 10:52 AM   #3
EvilTOJ
Feedback Score: 0 reviews

EvilTOJ's Avatar
Recipes

Join Date: Dec 2005
Location: Portland, OR, Oregon
Posts: 6,466
Liked 35 Times on 29 Posts
Likes Given: 3

Default

Wait, so this contraption is supposed to inject O2 as the wort leaves the kettle on the way to the fermenter? What an awesome idea! Do you have a parts write-up/cost for this?

__________________

There is a very fine line between "hobby" and "mental illness."

EvilTOJ is offline

Reply With Quote Quick reply to this message
Old 12-22-2007, 12:31 PM   #4
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 2 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 21,823
Liked 900 Times on 600 Posts
Likes Given: 26

Default

Very cool. What is the small diameter tubing for? I plan on putting the same type of thing together for the output of the CFC but plan to use a threaded stainless Tee instead of compression. I'll skip the sight glass because I have a medical regulator so I can dial in the flow without seeing.

__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!

New Stuff?
Bobby_M is offline

Reply With Quote Quick reply to this message
Old 12-22-2007, 02:27 PM   #5
mrbowenz
Feedback Score: 0 reviews

mrbowenz's Avatar
Recipes

Join Date: Dec 2007
Location: Pennsylvania
Posts: 795
Liked 16 Times on 12 Posts
Likes Given: 4

Default

Quote:
Originally Posted by EvilTOJ
Wait, so this contraption is supposed to inject O2 as the wort leaves the kettle on the way to the fermenter? What an awesome idea! Do you have a parts write-up/cost for this?
Almost, post or outflow of the plate chiller, right before the fermenter, I have seen something like this on commercial brewerys, and thought I could do something similar. If you buy one, they are like upwards of $ 350.00 , of course all stainless with tri clover fittings, but really aside from my fittings, which I will replace with stainless steel, the glass on the pro ones are pyrex too. This glass cost me I think 4 dollars from any music store. the flanges are pipe hanger/type, they are 1/2" npt, and then just some hex bolts to hold it all together/take apart and clean.

The copper small tube connects to my O2 source, then to some plastic tubing to a O2 stone in the center of the sight glass. With brass fittings, I would guess it cost about 20 bucks to put this together. Gasket material by the sheet, just cut to fit, I am waiting on some small fanges to install where the glass meets the walls of the larger flange.
__________________
mrbowenz is offline

Reply With Quote Quick reply to this message
Old 12-22-2007, 03:15 PM   #6
billtzk
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Dallas
Posts: 1,627
Liked 20 Times on 18 Posts
Likes Given: 6

Default

That is super-cool. A parts list when you get done would be sweet. Although I'd just buy one from you if you wanted to sell 'em.

__________________
billtzk is offline

Reply With Quote Quick reply to this message
Old 12-22-2007, 03:54 PM   #7
BlindLemonLars
Conqueroo Brew
Feedback Score: 0 reviews

BlindLemonLars's Avatar
Recipes

Join Date: May 2007
Posts: 4,445
Liked 9 Times on 9 Posts
Likes Given: 31

Default

I've got one of those thin Dunlop slides too, and this is a far better use for it! (They do make thick-wall ones too, BTW.)

Nice piece of work, very impressive. I'd love to see the "ghetto" that produced that!

__________________
BlindLemonLars is offline

Reply With Quote Quick reply to this message
Old 12-22-2007, 10:05 PM   #8
Spyk'd
Feedback Score: 0 reviews

Spyk'd's Avatar
Recipes

Join Date: May 2006
Location: Waveland, MS
Posts: 1,017
Liked 9 Times on 9 Posts

Default

Yep, this is how we do it at the brewery, but larger scale.


And yes, we use stainless, tri-clamp fittings, but the concept is the same: Aerate on the fly.


Good job!

__________________
Primary:
Bleach
Secondary:
American Red
Keg Conditioning:
Gruit
On Tap:
ESB
Bottled:
Nada...
On Deck:
Porter, Belgian Abbey Ale
Spyk'd is offline

Reply With Quote Quick reply to this message
Old 12-24-2007, 12:24 AM   #9
big t
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2007
Posts: 17
Default

Is that 1/4" od sweated into 1/2" od copper? How did you make the transition?

__________________
big t is offline

Reply With Quote Quick reply to this message
Old 12-24-2007, 07:41 AM   #10
mrbowenz
Feedback Score: 0 reviews

mrbowenz's Avatar
Recipes

Join Date: Dec 2007
Location: Pennsylvania
Posts: 795
Liked 16 Times on 12 Posts
Likes Given: 4

Default

Quote:
Originally Posted by big t
Is that 1/4" od sweated into 1/2" od copper? How did you make the transition?

I cut out from a sheet of copper, what was almost a penny, then drilled out a 1/4" hole in the center, then just soldered away, the key is everything must be really clean to get it to be a tight connection, I have had lots of practice .
__________________
mrbowenz is offline
