Default Pumps and mash tuns

Have any of yall ever used a pump between ur mash tun and brew kettle?

__________________
metalpysko is offline

Reply With Quote Quick reply to this message
Old 09-02-2011, 11:08 PM   #2
WortMonger
United States Mashtronaut
Feedback Score: 0 reviews

WortMonger's Avatar
Recipes

Join Date: Nov 2006
Location: Edmond, OK, Oklahoma
Posts: 3,141
Liked 28 Times on 27 Posts
Likes Given: 3

Default

I do this. I utilize a grant so as to not compress the grain bed under the negative pressure a pump creates. If I didn't use the grant I would definitely go very slow. My setup is such that I can gravity drain if I would like to from mash tun to kettle. I use the pump since I was already using it to recirculate for my vorlauf, but it would be just as easy to gravity drain directly.

__________________
"Beer... Nutritious and Delicious!"

"It's like a 15.5 gallon Mr. Beer!"
WortMonger is offline

Reply With Quote Quick reply to this message
Old 09-02-2011, 11:10 PM   #3
Flomaster
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Orange, Ca
Posts: 2,143
Liked 34 Times on 32 Posts
Likes Given: 37

Default

Wort:

Mash tun to Grant
Grant to BK

so you gravity into the grant and pump into the BK, am I understanding correctly?

-=Jason=-

Flomaster is offline

Reply With Quote Quick reply to this message
Old 09-02-2011, 11:11 PM   #4
WortMonger
United States Mashtronaut
Feedback Score: 0 reviews

WortMonger's Avatar
Recipes

Join Date: Nov 2006
Location: Edmond, OK, Oklahoma
Posts: 3,141
Liked 28 Times on 27 Posts
Likes Given: 3

Default

Si Senior!

__________________
"Beer... Nutritious and Delicious!"

"It's like a 15.5 gallon Mr. Beer!"
WortMonger is offline

Reply With Quote Quick reply to this message
Old 09-02-2011, 11:17 PM   #5
Bigscience
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2009
Location: Woodinville, WA
Posts: 614
Liked 25 Times on 24 Posts
Likes Given: 4

Default

I pump my MLT and have a false bottom. When I start pumping, I choke off the output with a ball valve for the first few minutes to set up the grain bed. I've only had one stuck mash and that was 40% Rye with no rice hulls. All I did was stir and start back slow again and it was fine.

One issue with pumping though is you can collapse your hose at higher temps if there is too much resistance. To help prevent this I use the braided reinforced silicone tubing and a 90 at the MLT output.

Sent from my iPhone using HB Talk

__________________

First they came for my Four Loko and I said nothing, then they came for my Double Imperial Espresso Stout.

Bigscience is offline

Reply With Quote Quick reply to this message
Old 09-02-2011, 11:53 PM   #6
Hammy71
Senior Member
Feedback Score: 0 reviews

Hammy71's Avatar
Recipes

Join Date: Sep 2008
Location: , Maryland, The Tax Me State
Posts: 5,626
Liked 420 Times on 324 Posts
Likes Given: 639

Default

I use a pump to drain my MLT also. It's a keg with a homemade false bottom. I drain slow by using a ball valve also. Instead of using a hose to my false bottom, I made it out of 1/2 stainless rigid pipe. The pipe has a union so I can remove the FB for easy cleaning. I use a RIMS, so since I recirculate with the pump, going to the kettle is as simple as moving the MLT return tubing to the kettle.

__________________
Hammy71 is offline

Reply With Quote Quick reply to this message
Old 09-03-2011, 12:01 AM   #7
metalpysko
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2011
Location: Fairbanks, Alaska
Posts: 253
Liked 3 Times on 1 Posts

Default

So u use a resivor for ur run from ur mash tun then run ur other end of ur pump in there and pump into the bk

__________________
metalpysko is offline

Reply With Quote Quick reply to this message
Old 09-03-2011, 06:36 AM   #8
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,282
Liked 62 Times on 53 Posts
Likes Given: 122

Default

Quote:
Originally Posted by metalpysko
So u use a resivor for ur run from ur mash tun then run ur other end of ur pump in there and pump into the bk .

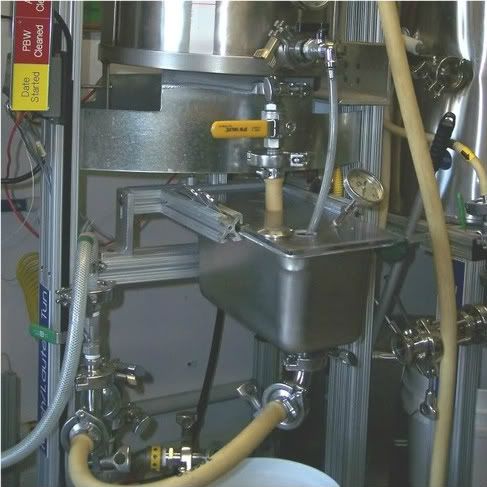

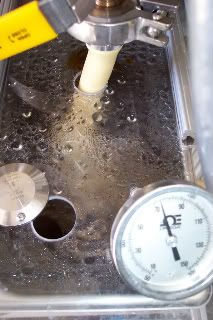

Typical grant (reservoir) set-up

Mash/Lauter tun to grant



Grant to pump



Pump to brew kettle or back to Mash/Lauter tun for Vorlauf

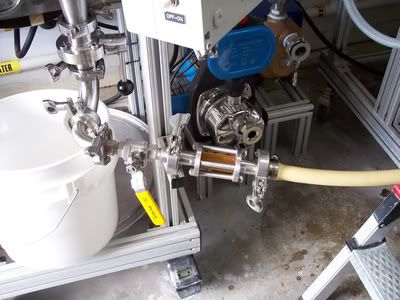

To brew kettle

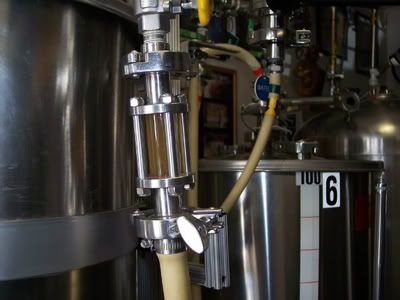

Vorlauf



Cheers,
ClaudiusB
__________________
My Brewery Pics
Grain Mill Glycol Chiller
Keg Washer
ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 09-03-2011, 05:57 PM   #9
November
...relax...
Feedback Score: 0 reviews

November's Avatar
Recipes

Join Date: Aug 2009
Location: Southern AZ
Posts: 472
Liked 54 Times on 36 Posts
Likes Given: 16

Default

I like the grant setup. I may have to add one. For now I just use the output valve to slow the system down to avoid compacting the grain bed. It works well albeit a bit slow.

__________________
My finished Stout Tank/Kal build
November is offline

Reply With Quote Quick reply to this message
Old 09-03-2011, 06:39 PM   #10
AiredAle
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2006
Posts: 474
Liked 17 Times on 13 Posts

Default

I use a March pump from my rectangular (blue) cooler to my boil kettle. The MT cooler is equipped with a copper pipe manifold. I set the pump lower than the MT and use hoses with QD fittings. The pump and hoses fill by gravity. To vorlauf, I recirculate through the pump to the top of the grain bed, throttling the flow with a ball valve on the pump outlet.

Once the vorlauf is over and the flow rate is set at about 1 qt.min with the ball valve on the pump outlet, the pump is turned off, the hose is connected to the kettle ball valve, and the pump is re-started. Then I start fly sparging by gravity from my elevated HLT.

I have had no problems with collapsing hoses or grain beds, due to the slow flow rate, I guess.
