Default My new brew sculpture

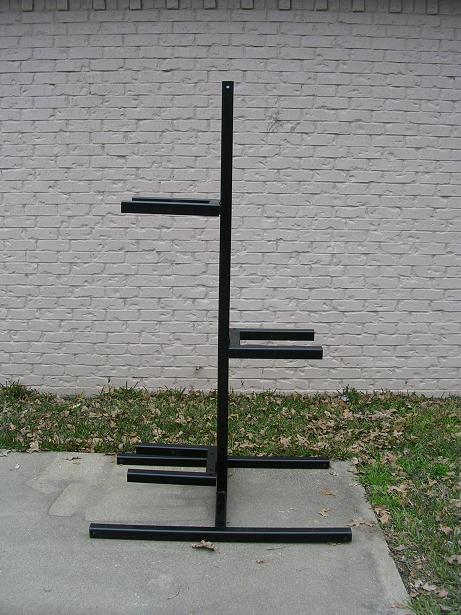

Well, here it is. I'll post some updated pics once I get the burners mounted and propane plumbed in.

The steel was some 2" scrap that I was given, and I welded it with some help from my brother, so the total cost of what you see is $0! This was my first attempt at welding EVER, so I'm very proud even though the welds are ugly. Total time to cut, weld, grind, paint < 3 hours. I can't believe how easily everything went. It's not quite commercial quality, but I don't care. I get a much bigger kick out of things I do myself.

I can't wait to use it. No more stacking crap up to get one pot above another, and no more lifting scalding water above my head! The other thing is I've got the capacity to do 10 gallon batches now and I think this will make that process much easier.

I've got an idea about how I'll do the plumbing, but I'll take any advice you have.

Cheers!
Last edited by Lil' Sparky; 05-02-2007 at 07:15 PM.
Lil' Sparky is online now   Reply With Quote
Old 02-11-2007, 08:07 PM   #2
brewman !
Senior Member
Recipes

Join Date: Nov 2006
Posts: 811
Default
Congrats on getting it done. Nice job.

I really like the fact that you put long legs on it. I look at some brewstands and wonder why they don't fall over.

I find welding very easy to do and its not what I do for a living. There are some pictures of my welds in my gallery. I don't understand why more people don't make their own brewstands. You can build a lot with a welder, a grinder, a drill press and a saw of some sort.

A word of advice, if I may... sometimes welds look stronger than they are. Being that this is your first weld job, you might want to test the strength of everything, by, say, hanging 2 or 3x the weight of a full brew kettle on each of the levels. If you have a teen age person in your house, have them hang and sit on each level !

I'd just hate to have it fail in use.
__________________
Fermenting: Red Herring Lager with wrong ingredients.
Aging: Cabernet Sauvignon, Apfelwein, Peach wine (Curve'?)
Bottled/Kegged: Mango wine, Cherry port, Shiraz wine, Ginger Peach ale,
Consumed Brown Ale (Newcastle clone), Blue Moon (Belgian Wit) Thread, Cranberry ale, Corona clone.


Steam Injected Mashing Thread 1 , Thread 2.
Yeast storage by freezing.
8 brews thus far in 2007.

ITS ABOUT THE BEER ! My brewing gallery. Good, free, open source brewing software, QBREW.
Last edited by brewman !; 02-11-2007 at 08:10 PM.
brewman ! is offline   Reply With Quote
Old 02-11-2007, 08:13 PM   #3
Lil' Sparky
Cowboys EAC

Lil' Sparky's Avatar
Recipes

Join Date: Feb 2006
Location: Honolulu, HI
Posts: 3,938
Default
Actually, I've tested each level with my 225 lb butt and they seem to be more than strong enough. Good advice, though! It would suck to have one break loose during a brewing session.
Lil' Sparky is online now   Reply With Quote
Old 02-11-2007, 08:35 PM   #4
Orfy
For the love of beer!

Orfy's Avatar
Recipes

Join Date: Sep 2005
Location: Cheshire, England
Posts: 11,850
Default
Nice job. Like the colour.
__________________
GET THE GOBLIN
Have a beer on me.
Orfy is offline   Reply With Quote
Old 02-12-2007, 02:15 AM   #5
harley03
Senior Member

harley03's Avatar
Recipes

Join Date: Jan 2007
Location: Macomb, MI
Posts: 203
Default
Good job! can't wait to see it completed.
harley03 is offline   Reply With Quote
Old 02-12-2007, 02:55 AM   #6
silver02ws6
Member
Recipes

Join Date: Jan 2007
Location: Orlando FL
Posts: 73
Default
Thats an awsome job man, someday when i have enough room
__________________
Austin Roberts

"Its not rain just beer you havn't had the chance to drink yet"
silver02ws6 is offline   Reply With Quote
Old 02-12-2007, 12:18 PM   #7
Lil' Sparky
Cowboys EAC

Lil' Sparky's Avatar
Recipes

Join Date: Feb 2006
Location: Honolulu, HI
Posts: 3,938
Default
Quote:
Originally Posted by beer4breakfast
Looks great! How tall is it? How far off the ground is that bottom level for your boil kettle?

I should do a vertical like that because I don't have a lot of space, but I'm sorta thinking I'll do a two tier.
Thanks. I didn't want it to be very tall. The bottom level is 8" off the ground and there's 24" between each tier, so the top level is 4'8". I have a CFC and I use a wort wizard to get the wort into the primary. I may cut off the center post at the top tier, but I left it for now in case I want to secure the kettles to it somehow.

I don't have a pump, so I went with 3 tiers.
Lil' Sparky is online now   Reply With Quote
Old 02-12-2007, 07:42 PM   #8
brewhead
Senior Member
Recipes

Join Date: Apr 2005
Posts: 835
Default
question: how do you transfer from the kettle to the carboy?
__________________
Upstate South Carolina Residents Check Out The Upstatebrewtopians. Celebrate tradition. Come back to the taste of hand crafted beer.
brewhead is offline   Reply With Quote
Old 02-12-2007, 08:25 PM   #9
DesertBrew
Handle is passé

DesertBrew's Avatar
Recipes

Join Date: Jan 2005
Location: Twin Cities, MN
Posts: 3,936
Default
Quote:
Originally Posted by brewhead
question: how do you transfer from the kettle to the carboy?
Wort Wizard. I'd recommend! I can drain 5.5g from a kettle thru the CFC in about 7 minutes. 200 to 70 degrees.

http://www.wortwizard.com/
DesertBrew is offline   Reply With Quote
Old 02-12-2007, 08:36 PM   #10
brewman !
Senior Member
Recipes

Join Date: Nov 2006
Posts: 811
Default
Quote:
I've tested each level with my 225 lb butt
Good man !
__________________
Fermenting: Red Herring Lager with wrong ingredients.
Aging: Cabernet Sauvignon, Apfelwein, Peach wine (Curve'?)
Bottled/Kegged: Mango wine, Cherry port, Shiraz wine, Ginger Peach ale,
Consumed Brown Ale (Newcastle clone), Blue Moon (Belgian Wit) Thread, Cranberry ale, Corona clone.


Steam Injected Mashing Thread 1 , Thread 2.
Yeast storage by freezing.
8 brews thus far in 2007.

ITS ABOUT THE BEER ! My brewing gallery. Good, free, open source brewing software, QBREW.
brewman ! is offline   Reply With Quote
