Old 01-28-2013, 08:39 PM   #1
Jeebas
Feedback Score: 3 reviews

Jeebas's Avatar
Recipes

Join Date: Mar 2010
Location: Pittsburgh, Pennsylvania
Posts: 470
Liked 30 Times on 21 Posts
Likes Given: 1

Default My Mill Calibration Experiment

After doing my most recent all-grain batch and getting low efficiency - http://www.homebrewtalk.com/f36/low-...estion-383643/

I decided to do an experiment with milling grain (I have a Barley Crusher) at a few different settings, mashing for one hour, sparging and then taking a gravity reading.

My process was:

#1 Mill grains (I milled all three batches at the beginning)
#2 Place crushed grains into paint strainer bag in 6 quart pot.
#3 Heat up strike water to 167
#4 Add strike water to pot with grains, maintain temp ~152 degrees for 60 minutes, stirring every 10 minutes.
#5 Pull bag out and let excess wort drain back into pot.
#6 Heat up sparge water to 180 (so it was ready in time)
#7 Once the mash has drained from the bag (under five minutes), put the bag in another pot and add the sparge water. Stir
#8 Let sparge pot sit for 5 minutes
#9 Drain as I did in Step #5
#10 Add sparge pot wort to mash pot wort to make 1 gallon
#11 Chill in ice-water bath to 100 degrees
#12 Take hydro reading.

2 lbs of 2 row mashed for 60 minutes and then sparged with enough water to make 1 gallon (2.5 quarts) at 100% efficiency would be 1.072

The number in parentheses is what I got when changing the Efficiency % to match what I got on the gravity reading.

My findings:

.035" yielded 1.044 - adjusted for temp to 1.048 (66% efficiency)
.032" yielded 1.049 - adjusted for temp to 1.053 (73% efficiency)
.030" yielded 1.051 - adjusted for temp to 1.055 (75% efficiency)

(Since I took the hydro readings at 100 degrees I used http://www.brewersfriend.com/hydrometer-temp/ to adjust hydro readings for temp)

Should I have taken the hydro reading just from the mash instead?

Of course the downfalls of this experiment are that:

#1 This was mash efficiency and not brewhouse efficiency
#2 As I did this on the stovetop with smaller pots it is not representative of what my system will get - concerning issues of if the crush is too fine there being a stuck sparge.

Some pictures of the process -

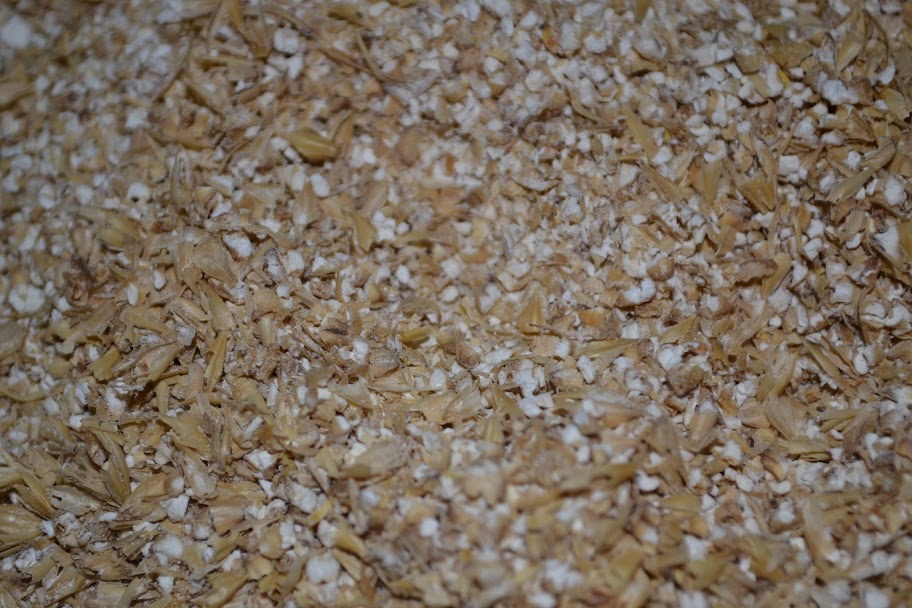

The grain crushed with the mill set at .035"



And here the .032" grain



And now the .030" grain

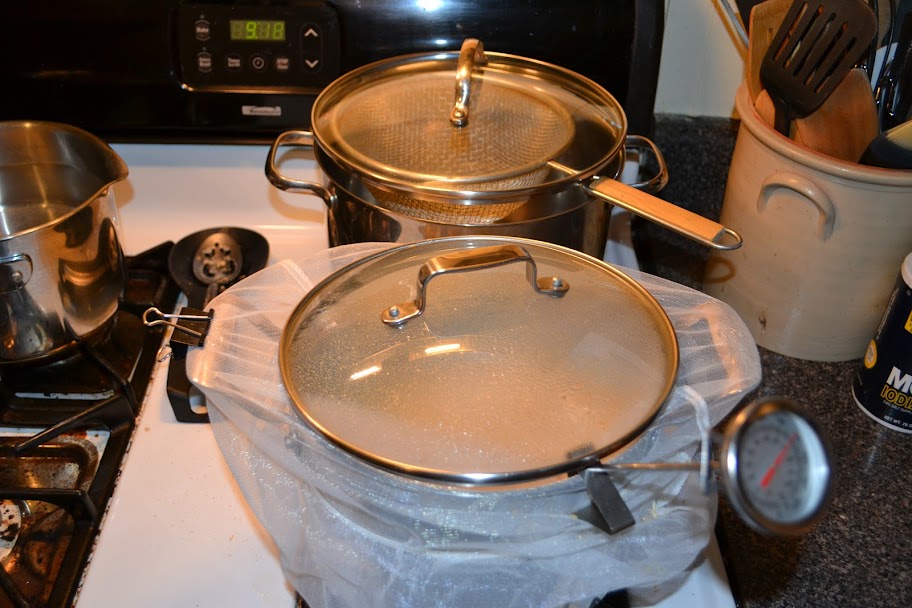

My mash setup







The sparge water

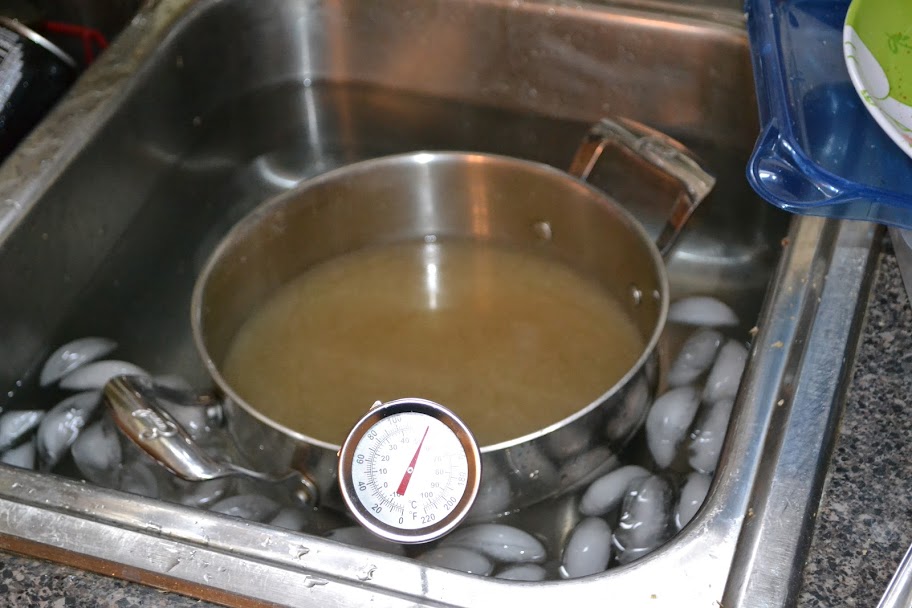

Chilling down 1 gallon of wort



Afterwards, not wanting to waste anything, I did another mini-mash with 1 lb of 2 row and 1/2 lb of Munich and 1/2 lb of Honey Malt, combined it with the worts from the experiments and boiled around 3.5 gallons (I didn't want to push the limits of my old 5 gallon extract kettle - I didn't feel like trudging out in the snow to fire up the AG rig). Added 2 oz of Amarillo leaf for 60 minutes and then another 1 oz at 5 minutes. I then topped off with water, which unfortunately made the post-boil OG come out to 1.026 :P Very small beer it is! Like I said it was more to not waste anything, we'll see how it tastes.

Thanks for looking!

Jeebas is offline
hnycrk Likes This
Reply With Quote Quick reply to this message
Old 01-28-2013, 08:55 PM   #2
kblankenship11
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2012
Posts: 250
Liked 21 Times on 17 Posts
Likes Given: 20

Default

Nice experiment!! People kill themselves over sparging methods, water/grist ratios, other additions--while a little turn of the dial on a mill gives that much extra sugar!

__________________
kblankenship11 is offline

Reply With Quote Quick reply to this message
Old 01-28-2013, 10:47 PM   #3
TheHunk
Feedback Score: 0 reviews
Recipes

Join Date: May 2009
Location: , PA
Posts: 106
Likes Given: 2

Default

Nice job! Thanks.

__________________
TheHunk is offline

Reply With Quote Quick reply to this message
Old 01-29-2013, 12:32 AM   #4
bdkelly
Feedback Score: 0 reviews

bdkelly's Avatar
Recipes

Join Date: Dec 2012
Location: Woodbridge, VA
Posts: 83
Liked 4 Times on 4 Posts
Likes Given: 2

Default

This is great! I just received my new mill last week and did I batch Saturday. The instructions say to leave at the factory setting at first, so I checked with feeler gauges to make sure it was where they said. My efficiency was terrible. I'm glad to see this test so that I have a better idea where the gap should be set for my mill. I know it's going to take some dialing in, but this will give me a better place to start.

__________________
bdkelly is offline

Reply With Quote Quick reply to this message
Old 01-29-2013, 12:44 AM   #5
twalte
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2012
Location: Roseville (Sacramento), California
Posts: 394
Liked 29 Times on 27 Posts
Likes Given: 38

Default

Quote:
Originally Posted by bdkelly View Post
This is great! I just received my new mill last week and did I batch Saturday. The instructions say to leave at the factory setting at first, so I checked with feeler gauges to make sure it was where they said. My efficiency was terrible. I'm glad to see this test so that I have a better idea where the gap should be set for my mill. I know it's going to take some dialing in, but this will give me a better place to start.
I have only used it once (with conditioning the grains) and my efficiency was terrible too. I just made a tweak (to the 1 oclock position) for my batch tomorrow.

Great experiment. I am wondering if I should go a little tighter on the mill and add a few rice hulls to prevent the stuck sparge. I might have to soak some rice hulls tonight.
__________________

"You can’t be a real country unless you have a beer and an airline – it helps if you have some kind of football team, or some nuclear weapons but at the very least you need a beer"
- Frank Zappa

twalte is offline

Reply With Quote Quick reply to this message
Old 01-29-2013, 02:11 AM   #6
histo320
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2008
Location: Manteno, IL
Posts: 1,055
Liked 31 Times on 22 Posts
Likes Given: 8

Default

Great experiment. I will use this as a reference once I can get money rounded together for a Barley crusher.

I think it is great that you have this much time on you hands. You think you want to come over and help me dial in my Corona Mill?

I've tried searching for a setting and I know you can't get an exact setting but a general reference. I have heard the width of a credit card but my two previous attempts were very low efficiency. I am going to assume it was a crush or mashing in a bag since everything else was pretty much on par.

__________________
Tyler's Brewhaus

Drinking - Cream of Three Crops
Bottled - HipHOPapotamus IPA
Primary #2 - Highland Gaelic Ale Clone
Up Next - Looking for good Brown or Stout
histo320 is offline

Reply With Quote Quick reply to this message
Old 01-29-2013, 02:25 AM   #7
scratchy1971
Urinal Cake Aficionado
Feedback Score: 0 reviews

scratchy1971's Avatar
Recipes

Join Date: Feb 2012
Location: New Albany, OH
Posts: 60
Liked 2 Times on 2 Posts

Default

Yes, very nice. Thanks for the great info.

__________________
scratchy1971 is offline

Reply With Quote Quick reply to this message
Old 01-29-2013, 02:39 AM   #8
eric19312
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2012
Location: , NY
Posts: 736
Liked 67 Times on 53 Posts
Likes Given: 9

Default

Nicely done! Would be interested I results obtained with conditioned grains. I use .030 with conditioned grain and have no issues with sticking, tons of big f.uffy hulls. But maybe I should go even lower... Note I uses .030 because I'm too lazy to buy a proper gauge and that is the thickness of a typical credit card....

__________________
eric19312 is offline

Reply With Quote Quick reply to this message
Old 01-29-2013, 02:52 AM   #9
Jeebas
Feedback Score: 3 reviews

Jeebas's Avatar
Recipes

Join Date: Mar 2010
Location: Pittsburgh, Pennsylvania
Posts: 470
Liked 30 Times on 21 Posts
Likes Given: 1

Default

Quote:
Originally Posted by histo320 View Post
Great experiment. I will use this as a reference once I can get money rounded together for a Barley crusher.

I think it is great that you have this much time on you hands. You think you want to come over and help me dial in my Corona Mill?
Ha! I wish I actually had that much time on my hands. My wife was a little ticked that my little experiment turned into 3 hours Friday night and close to 4 on Saturday - my four year old didn't understand either :P The 1 year old just kept saying "Uh oh"

Quote:
I've tried searching for a setting and I know you can't get an exact setting but a general reference. I have heard the width of a credit card but my two previous attempts were very low efficiency. I am going to assume it was a crush or mashing in a bag since everything else was pretty much on par.
I used this - http://www.autozone.com/autozone/acc...fier=1931_0_0_ - $3 not too bad. I would put the gauge in and then tighten until it the rollers kinda grabbed the blade but I could still pull it out.

I think I am gonna go with .030" for my next AG batch and see how it works on my AG equipment.
__________________
Coffin Keezer List

My Keezer Build

Plate Chiller Setup

March Pump Toolbox Build
Jeebas is offline

Reply With Quote Quick reply to this message
Old 01-29-2013, 11:01 AM   #10
RM-MN
Feedback Score: 1 reviews
Recipes

Join Date: Nov 2010
Location: Solway, MN
Posts: 6,777
Liked 772 Times on 646 Posts
Likes Given: 263

Default

Quote:
Originally Posted by histo320 View Post
Great experiment. I will use this as a reference once I can get money rounded together for a Barley crusher.

I think it is great that you have this much time on you hands. You think you want to come over and help me dial in my Corona Mill?

I've tried searching for a setting and I know you can't get an exact setting but a general reference. I have heard the width of a credit card but my two previous attempts were very low efficiency. I am going to assume it was a crush or mashing in a bag since everything else was pretty much on par.
If you are mashing in a bag, you can use a much finer crush/grind. Set that Corona mill until the plates touch lightly without grains in there and then watch your efficiency go up. I expect 80% now with no sparge.
__________________
