Default Effeciency and the steel braid???

Ok, so I have a few brewed 4 AG batches thus far, and have gotten the following effeciencies in this order: 58%, 70%, 66%, & 58%.

I've got my process down pretty well now and I've got my volumes/temps figured out with BeerSmith, and my grains look like all the pics I've seen should after being crush, but that still seems a bit low, but I have a theory

I am batch sparging in a cooler with the good old braided stainless steel hose. However, no matter how I try, I can never stir up my mash well without stirring the braided hose up too. So then I wind up pushing the hose back into the mash with my mash paddle(big steel spoon) as far as I can, but every time go to empty the cooler, the hose is always up in the middle of the grain bed somewhere rather than on the bottom. I've been tipping the cooler to get all that delicious wort out, or as much as I can anyway.

So my theory is, a lot of water, and all those fermentables I am extracting from my grain, are sitting on the bottom of the cooler, opposite side of the drain spiggot, with my hose above. Tipping the cooler drains some of it, but it can't all make it through to the drain spout.

Is my thinking correct, because I'm thinking it might be time to make a coppoer or PVC manifold for the bottom of the cooler to fix this, but wanted to get some opinions before doing any shopping.



__________________
dummkauf is offline

Reply With Quote Quick reply to this message
Old 09-08-2010, 11:04 PM   #2
wilserbrewer
Vendor
Vendor Ads
Feedback Score: 7 reviews

wilserbrewer's Avatar
Recipes

Join Date: May 2007
Location: Jersey Shore, Jersey
Posts: 6,215
Liked 332 Times on 285 Posts
Likes Given: 7

Default

After draining the tun, you can part the grain bed witjh your spoon and actually see the wort level. i have never had a braid float up in the mash, might yours be plastic. All of the braids I have used had no trouble draining the tun to the outlet level. I also never stir the up, rather always stiring in the direction of the braid and away from it. Is the run off quite speedy or is it a slow drain?

Part of the braid should be at the drain and the tun should empty to that point.



__________________
wilserbrewer
BIAB Bags, Hop Bags and Ratchet Pulleys for sale

Expert tailor and supplier of custom sized, top quality BIAB bags, hop bags and ratchet pulleys at reasonable pricing

http://biabbags.webs.com/


CORONA MILL BUCKET SYSTEM V. 2.0
wilserbrewer is online now

Reply With Quote Quick reply to this message
Old 09-08-2010, 11:22 PM   #3
300RUM
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2010
Location: North East, MD
Posts: 109
Liked 3 Times on 3 Posts

Default

I agree with wilserbrewer, but depending on your cooler the drain may put the braid in a not ideal location, you could try a manifold, cpvc would be pretty cheap to try.

__________________
300RUM is offline

Reply With Quote Quick reply to this message
Old 09-09-2010, 12:03 AM   #4
wilserbrewer
Vendor
Vendor Ads
Feedback Score: 7 reviews

wilserbrewer's Avatar
Recipes

Join Date: May 2007
Location: Jersey Shore, Jersey
Posts: 6,215
Liked 332 Times on 285 Posts
Likes Given: 7

Default

If you are leaving wort behind due to a high drain in the tun, a double batch sparge might help your efficiency? Braid or manifold should make no difference in theory, unless the drain is quite high and a siphon to the bottom of the tun is needed. Something must be odd, every braid I have ever used just wanted to suck the tun dry??

__________________
wilserbrewer
BIAB Bags, Hop Bags and Ratchet Pulleys for sale

Expert tailor and supplier of custom sized, top quality BIAB bags, hop bags and ratchet pulleys at reasonable pricing

http://biabbags.webs.com/


CORONA MILL BUCKET SYSTEM V. 2.0
wilserbrewer is online now

Reply With Quote Quick reply to this message
Old 09-09-2010, 12:05 AM   #5
RogueVassar
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Location: Northfield, Minnesota
Posts: 160
Liked 1 Times on 1 Posts
Likes Given: 2

Default

I don't have this problem on mine but would attaching a couple SS washers on the end of the braid keep it from floating up?

Does it float when you only have water in it?

__________________

Member of the Milltown Mashers

RogueVassar is offline

Reply With Quote Quick reply to this message
Old 09-09-2010, 02:46 AM   #6
Flic
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2008
Location: Florida
Posts: 121
Liked 2 Times on 2 Posts

Default

I've never had this issue on my 10 gallon Rubbermaid with a braid. Did you secure a brass head plug to the end? That helps to weigh it down. Otherwise, I try to be careful when stirring and not be too aggressive down near the bottom. I do a double batch sparge so that may help with your efficiency if you are only doing one. I am actually planning to buy a false bottom soon to see how that works compared to the braid but I have had good luck using it on my 20 AG brews.

__________________
Flic is offline

Reply With Quote Quick reply to this message
Old 09-09-2010, 02:54 AM   #7
ian-atx
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2008
Location: austin
Posts: 135
Liked 1 Times on 1 Posts

Default

Do you have pictures of your setup? Might clear up some speculation on what type of cooler and how the braid is connected, etc.

I have been using a steel braid in a white marine cooler for several years with no issues.

__________________
ian-atx is offline

Reply With Quote Quick reply to this message
Old 09-09-2010, 05:44 AM   #8
CalmYourself
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Johannesburg, south africa
Posts: 94
Default

My braid stirs up into the grain often. Doesn't cause a problem at all. I regularly get 80% efficiency (2% variance each way)

__________________

Primary: Nothing
On Tap: Cream of 3 Crops Ale

http://nochillbrews.blogspot.com/
CalmYourself is offline

Reply With Quote Quick reply to this message
Old 09-10-2010, 02:52 AM   #9
dummkauf
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Minneapolis MN
Posts: 783
Liked 10 Times on 9 Posts

Default

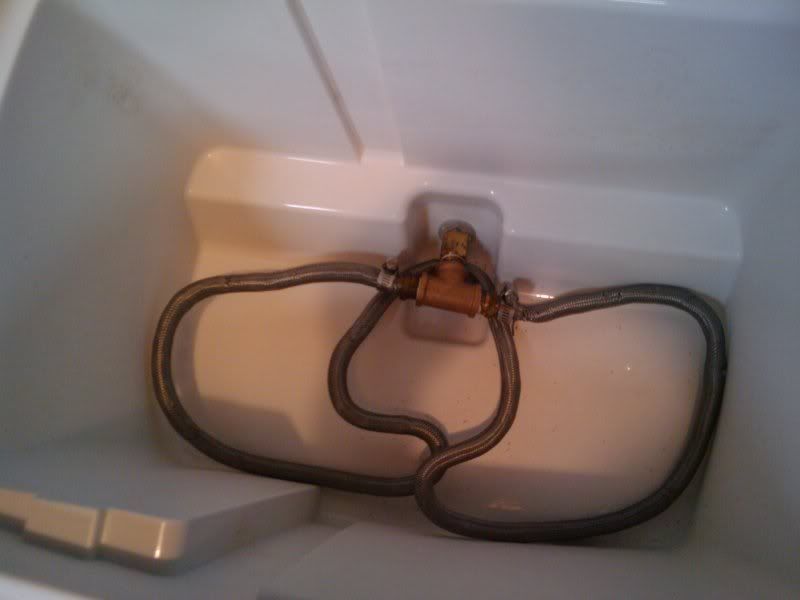

Ok, finally got a pic of it and I'm thinking I need to cut the braid in half and weight down the ends. They aren't floating up, they are getting stirred up when I stir the mash, and I think my problem with pushing it back down to the bottom is because of the 2 big loops.


h

__________________
dummkauf is offline

Reply With Quote Quick reply to this message
Old 09-10-2010, 07:44 AM   #10
CalmYourself
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Johannesburg, south africa
Posts: 94
Default

I don't think your problems are due to your braid floating.

Remember you can only drain as much as the two openings on your T-piece (the braid doesn't cause a siphon). Difficult to tell from your picture, how high off the base is that?

What is the actual wort level after you've drained the tun? Have you taken a spoon to see? If it's higher than your T-piece you may just be getting a stuck mash or sparge I suppose.
