Default using a personal fan inside keezer?

Hey guys hows it going? Had a question.about how to keep my beer lines cool in my. keezer cool. Need a fan and didn't want tto wire something in so was thinking about this
http://mobile.walmart.com/m/phoenix;...ssion/15907882

What you guys think? How expensive would it be to run this 24/7?

__________________
ZamaMan is offline

Reply With Quote Quick reply to this message
Old 07-20-2012, 11:51 AM   #2
zachattack
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2012
Location: , MA
Posts: 2,476
Liked 240 Times on 207 Posts
Likes Given: 125

Default

That'll work but it's probably overkill! Shouldn't be expensive to run on low, but they don't say the power or current rating so no way to know. Most of us recommend and use PC fans because they're cheap ($5 at the most), easy to mount and use almost no power. The wiring is as easy as twisting two pairs of wires together! Chances are you have an old DC power supply (can even be an old cell phone charger...) that'll work to power it.

If you're using 120V AC anything inside a keezer where moisture is present, please please please use a GFCI outlet.

__________________
zachattack is offline

Reply With Quote Quick reply to this message
Old 07-20-2012, 02:54 PM   #3
carlisle_bob
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2012
Location: Carlisle, PA
Posts: 1,205
Liked 27 Times on 26 Posts

Default

Quote:
Originally Posted by ZamaMan View Post
Hey guys hows it going? Had a question.about how to keep my beer lines cool in my. keezer cool. Need a fan and didn't want tto wire something in so was thinking about this
http://mobile.walmart.com/m/phoenix;...ssion/15907882

What you guys think? How expensive would it be to run this 24/7?
Hi

The fan running cost won't be as much of an issue as it's wear out time. For what ever reason, those fans don't hold up really well running 24/7 in a cold damp environment. Computer fans seem to hold up better.

Putting a 110V anything inside a keezer is not a really good idea. There are just to many ways for things to go wrong. A protected outlet only helps with some of them.

Bob
__________________
carlisle_bob is offline

Reply With Quote Quick reply to this message
Old 07-20-2012, 11:01 PM   #4
cwi
Registered User
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2010
Location: Austin
Posts: 845
Liked 30 Times on 27 Posts
Likes Given: 1

Default

If it has a full sized cord, you will introduce moisture due to the gap caused by the cord between the seal and the collar- assuming you are going to do it that way since you say you don't want to wire something.

Another issue is that 100% (virtually) of the power used by the fan will be input into your keezer as heat. Assuming most keezers only average ~20W, you may well double the run time, or more, of your keezer.

The small 12VDC PC fans use ~2 watts, and even less when run at 5VDC which provides more than enough circulation when left on 24/7 like any fan should be.

__________________
cwi is offline

Reply With Quote Quick reply to this message
Old 07-21-2012, 12:09 AM   #5
LuckyBeagleBrewing
Feedback Score: 0 reviews

LuckyBeagleBrewing's Avatar
Recipes

Join Date: Nov 2009
Location: Wood River, Illinois
Posts: 171
Liked 15 Times on 12 Posts
Likes Given: 5

Default

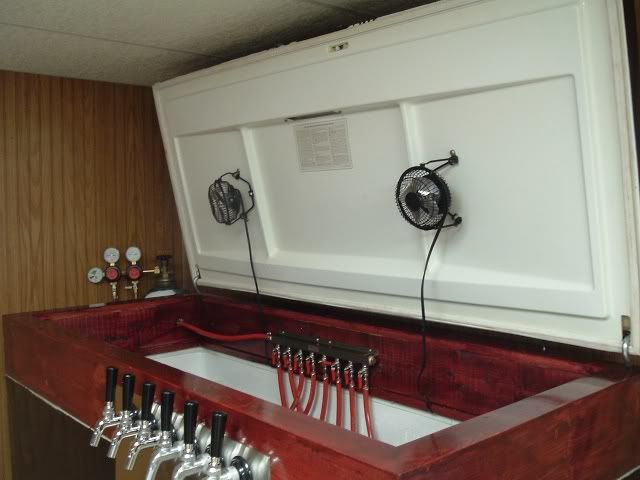

Dont know but I used some little wally world cheapies in mine. They are 120v but the heat they produce is minimal.

__________________
LuckyBeagleBrewing is offline

Reply With Quote Quick reply to this message
Old 07-21-2012, 01:25 AM   #6
cwi
Registered User
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2010
Location: Austin
Posts: 845
Liked 30 Times on 27 Posts
Likes Given: 1

Default

Quote:
Originally Posted by LuckyBeagleBrewing View Post
Dont know but I used some little wally world cheapies in mine. They are 120v but the heat they produce is minimal.
The heat they produce is *exactly* equal to the power of the fan, minus some miniscule EMI perhaps. The current on the label probably isn't accurate, and is probably high. A meter would let you know the steady state draw for your application.

Nice collar. Can you give some detail on the layup? I am tired of the 2X8 approach, since I don't have access to a jointer. Unless you can make the collar out of one board, the big side dimension can vary up to 1/4" between 2 boards, not to mention the bow in boards that thick made of pine.

Do you have a single layer cutout on the inside for the faucet area to keep the shanks, and subsequently the faucets, cold?
__________________
cwi is offline

Reply With Quote Quick reply to this message
Old 07-21-2012, 01:42 AM   #7
LuckyBeagleBrewing
Feedback Score: 0 reviews

LuckyBeagleBrewing's Avatar
Recipes

Join Date: Nov 2009
Location: Wood River, Illinois
Posts: 171
Liked 15 Times on 12 Posts
Likes Given: 5

Default

2x6 box with 1x6 surrounding those boards. I tried to get nice looking 1x6s that I knew would stain up nicely. The top and bottom are 1x3s to give cleaner effect. I stink at woodworking so I cheated to make it look decent. Wood filler works wonders for poor sawing skills in my case. I figure with abut 2.5 inches of wood, it will have a good insulating effect. This is also a 23 cf so I need a little more than a computer fan to circulate. I set it on the switch circuit so it only runs when the freezer is on.

__________________
LuckyBeagleBrewing is offline

Reply With Quote Quick reply to this message
Old 07-21-2012, 02:12 AM   #8
cwi
Registered User
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2010
Location: Austin
Posts: 845
Liked 30 Times on 27 Posts
Likes Given: 1

Default

Quote:
Originally Posted by LuckyBeagleBrewing View Post
2x6 box with 1x6 surrounding those boards. I tried to get nice looking 1x6s that I knew would stain up nicely. The top and bottom are 1x3s to give cleaner effect. I stink at woodworking so I cheated to make it look decent. Wood filler works wonders for poor sawing skills in my case. I figure with abut 2.5 inches of wood, it will have a good insulating effect. This is also a 23 cf so I need a little more than a computer fan to circulate. I set it on the switch circuit so it only runs when the freezer is on.
I am all about cheating when building collars. I may try just using 1x6's 1x2, or 4's and building a box collar. the 1x stuff in finished lumber is a little more consistently sized and straighter.

RE: wood insulating factor. I don't remember the number, but it is a crappy insulator compared to foam. As long as you have a fan to control stratification, though, it doesn't add much to the overall heat loss compared to an insulated collar.

RE: Fan on only when freezer is on. The collar area heats up pretty quick during the idle times. Maybe one on the switch, and another on a timer for 5 minutes every 20 or so would keep your faucets cooler. A smaller fan running continuously is more effective, though. Especially blowing from the bottom up aimed right at your shanks. And the longer and more exposed the shanks the better, until they get in the way of things. I have 6", but may get 8" for any additional faucets. However, all this shank envy may be caused by trying to keep faucets cold in a hot garage. Kept in the house, it probably isn't much of an issue.
__________________
cwi is offline

Reply With Quote Quick reply to this message
Old 07-21-2012, 02:39 PM   #9
bwarbiany
Feedback Score: 0 reviews

bwarbiany's Avatar
Recipes

Join Date: Jul 2011
Location: Laguna Hills, CA
Posts: 1,823
Liked 554 Times on 324 Posts
Likes Given: 3

Default

Quote:
Nice collar. Can you give some detail on the layup? I am tired of the 2X8 approach, since I don't have access to a jointer. Unless you can make the collar out of one board, the big side dimension can vary up to 1/4" between 2 boards, not to mention the bow in boards that thick made of pine.
I went with 2x8 for the collar, but then clad the 2x8 in 3/4x10 red oak. This allowed me to have slight overhang on the top (to hide the lid seal) and about a 1 1/2" overhang on the bottom.

It gives a cleaner look, although not anywhere near as good as LuckyBeagle... That sucker is NICE!

__________________
bwarbiany is offline

Reply With Quote Quick reply to this message
Old 07-21-2012, 06:09 PM   #10
cwi
Registered User
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2010
Location: Austin
Posts: 845
Liked 30 Times on 27 Posts
Likes Given: 1

Default

Quote:
Originally Posted by bwarbiany View Post
I went with 2x8 for the collar, but then clad the 2x8 in 3/4x10 red oak. This allowed me to have slight overhang on the top (to hide the lid seal) and about a 1 1/2" overhang on the bottom.

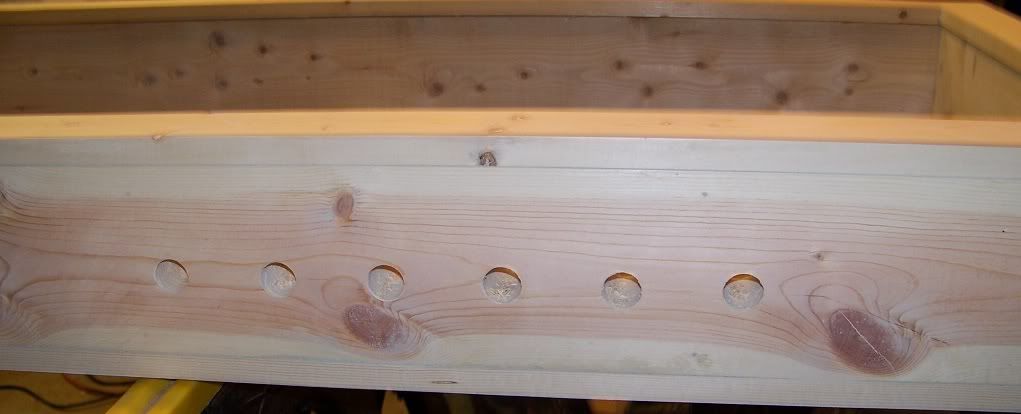

My issue was that for a large ~20CF keezer I built, I had no choice but to use two 2x8s. The difference between the two boards wide dim was at least a full 1/4". It made sealing the collar to the chest more difficult. I chose to use the flat side for the lid seal so that I didn't put a set in it, or in case it couldn't accommodate the 1/4" step.

I do like the idea of covering up the collar to lid and chest interfaces with a fascia board though. If I do that, I will mount the shanks to the fascia board, and bore out the 2x8 to allow air circulation to as much shank as possible. Having an equivalent inch+ shorter shank to play with is no fun- TWSS.
