Old 09-13-2011, 04:19 PM   #2981
Jester369
Feedback Score: 0 reviews

Jester369's Avatar
Recipes

Join Date: Jan 2007
Location: Vermont
Posts: 1,932
Liked 118 Times on 94 Posts
Likes Given: 3

Default

Quote:
Originally Posted by snowveil View Post
thank you Jester for the inspiration for this shameless rip off
You are very welcome - came out great!
__________________
The 'Original' Keezer!
Jester369 is offline

Reply With Quote Quick reply to this message
Old 09-13-2011, 06:01 PM   #2982
Spinal_Tap
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2009
Location: Chicago
Posts: 16
Default Chicago Kegerator

It took just under a year to plan an execute this build, but that's mostly because I have too many hobbies, a 9-5, etc.. Once work began, it only took a few weeks of actual work.

We started with the unsuspecting Sunbeam chest freezer I received for my B-day last year, which the Missus insisted I get the largest Menards had. Ah yes, that's why I married her...


Tools of the trade. Don't know why you can't see the labels on anything, that wasn't planned. But the caulk-tube looking thing is some Loctite construction adhesive, for the collar-to-lid junction. The aresol can is 3M (I think) medium strength upholstery adhesive for the copper-to-wood work. Copper roll in the upper left. Various screws, and angle brackets...

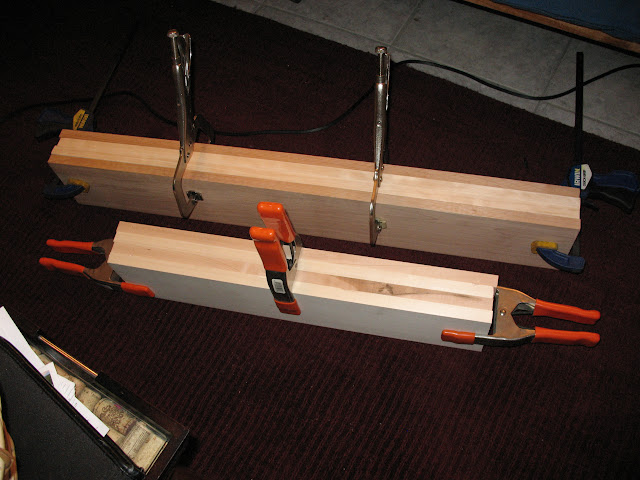

The woodwork begins. To start off with, I glued a piece of aspen to a piece of Oak. Aspen for good looks on the outside, and the Oak for strength. Glued and clamped for a few days.


What I don't have pictures of, is the actual cutting and fitting of the 4 pieces of the collar, which was the hardest part. I'm no carpenter, so my 90 degree angles weren't, and gaps were present. But a coworker, who's a world-class woodworker who knows I'm a car-guy, said use Bondo to fill in the gaps. That worked a treat! Just smooshed Bondo into the gaps, let it set, and sanded to the final shape. Worked great, because I needed to round the outer corners anyway, so the copper wouldn't get pierced by it when applying or just through use.

In the planning stage, a friend suggested copper would look cool, and you know what, he was right. So I wrapped the collar in thin layer of real copper. Used the aforementioned upholstery adhesive to do the job.

The really tricky part of the whole build was getting the hinge to collar to work right. My solution, was to take a bunch of flat stock, cut it into rectangles about the size of the hinge plate, and drill holes through them. This did 2 things: Gave me spacers to make up the distance from the hinge to the collar, and gave me a backing plate that is effectively a large, funny shaped washer.

Here's the spacers:


And here's the funny-shaped washer:


Those spacers aren't my best work, but they do the job, and nobody looks at them anyway.

And here we are gluing the collar to the lid. Green tape covers the 2 holes for the taps:


Here's it with lid closed:

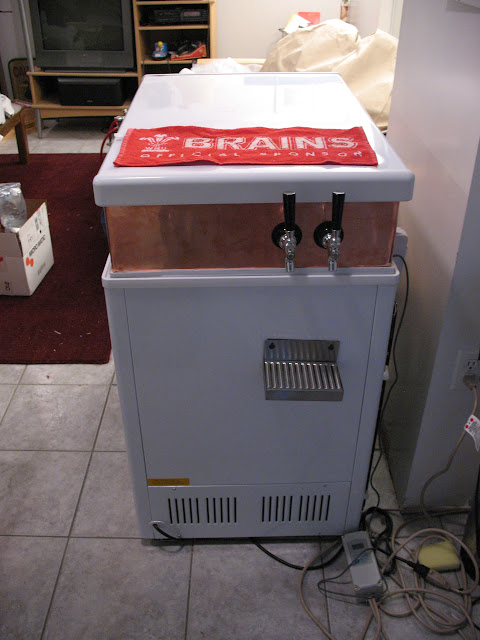

And the money-shot: The final product.


So far 1 Corny Keg of The Windsor Knot has passed through the tap, and I have to say, it's a success! The copper is taking on a nice patina, and I don't think there are any air leaks so the compressor isn't running any more than before the conversion.

With summer coming to an end, I'm hoping I can get back to brewing so I can have BOTH taps providing beer!

I put the taps on the side of the fridge because of the way my basement is laid out. The front of the fridge is a high-traffic pass-through. I didn't want to be bumping the taps every time I walked by. And it's more convenient, as the taps face the stairs landing. So once you step off the stairs, you're 2 steps away from a pint. The only downside to this tap arrangement is that when you're showing it off to your friends, and opening the lid after pouring, a few drops of beer will come out and miss the drip-tray. And the Brains towel always slides off!

__________________

Spinal_Tap is offline

Reply With Quote Quick reply to this message
Old 09-13-2011, 08:30 PM   #2983
ozzy1038
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2011
Posts: 387
Liked 10 Times on 10 Posts
Likes Given: 1

Default

Well this is nothing special, but it's a start. I want/need to upgrade to a little larger freezer to fit 4 kegs, but this will do for now. I plan to modify down the road and add towers or front taps. Especially because the freezer cost me nothing. It was given to me by a friend. It doesn't freeze but will get down to the low 30's. Sounded perfect to me!!! Now I can use my fridge to ferment lagers.

imag0981.jpg   imag0979.jpg
__________________

_______________________________________________
On Deck: Cream Ale and Blue Moon clone for MIL

Primary: Hopped Up Brown

Bottled: Litehaus Wheat, Orange APA, Rauchbier, Willy's Cream Stout

Kegged: Tank 7 Clone renamed "Le Ferme" (dryhopped cascade, sorachi), Caramel Amber Ale, Trout Bum APA, 3 Dogs APA


Gallons Brewed Since June: 53.5
_______________________________________________
I seriously cannot imagine a day or life without beer!

ozzy1038 is offline

Reply With Quote Quick reply to this message
Old 09-13-2011, 08:52 PM   #2984
Jaysus
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2008
Location: H'burg, PA
Posts: 956
Liked 24 Times on 22 Posts
Likes Given: 79

Default

ozzy1038> I love how you have your gas lines perfectly cut for each keg!

__________________
Jaysus is offline

Reply With Quote Quick reply to this message
Old 09-13-2011, 11:56 PM   #2985
Galloway737
Feedback Score: 0 reviews

Galloway737's Avatar
Recipes

Join Date: Sep 2011
Location: Covington, WA
Posts: 6
Default Kegerator

img_3639.jpg Finished Product....

img_3638.jpg AN fittings and Stainless Drain line...
__________________
Galloway737 is offline

Reply With Quote Quick reply to this message
Old 09-13-2011, 11:56 PM   #2986
Flomaster
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Orange, Ca
Posts: 2,146
Liked 34 Times on 32 Posts
Likes Given: 37

Default

Ozzy, that is pretty ballsy to run the CO2 line through the side of your keezer, what / how did you figure out where to drill?

-=Jason=-

Flomaster is offline

Reply With Quote Quick reply to this message
Old 09-14-2011, 12:09 AM   #2987
arturo7
Feedback Score: 0 reviews

arturo7's Avatar
Recipes

Join Date: Apr 2007
Location: Huntington Beach
Posts: 9,111
Liked 173 Times on 135 Posts
Likes Given: 1

Default

Shiny!

__________________

Hey, knock that shvt off. We're drinkin' here.

arturo7 is offline

Reply With Quote Quick reply to this message
Old 09-14-2011, 12:12 AM   #2988
ozzy1038
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2011
Posts: 387
Liked 10 Times on 10 Posts
Likes Given: 1

Default

Quote:
Originally Posted by Flomaster View Post
Ozzy, that is pretty ballsy to run the CO2 line through the side of your keezer, what / how did you figure out where to drill?

-=Jason=-
I will agree and say it took some balls and maybe a little stupidity to drill that hole. I ASSUMED the all the cooling was done elsewhere in the freezer. There was frost on the front of the freezer and I figured it was there. I decided to just go for it and hope I was right or that I would miss something. I was or I did! I think the price played a role in my decision as well!

I used a 1/2" bit for the gas line which is 9/16". I cut the tip of the hose at an angle to get it in the hole and then rotated it back and forth while pushing to get it through. I had to use pliers on the other side to pull the hose through. It's safe to say it is not leaking around that hose.

I thought about putting the CO2 tank in the freezer, but that would limit my capacity. Plus, I want to know exactly how much CO2 I have and the cold wont allow that. I also thought about waiting in case I modify it and run the hose through the board spacer, but am not sure if I will do that with this freezer. I may get towers or upsize next spring.
__________________

_______________________________________________
On Deck: Cream Ale and Blue Moon clone for MIL

Primary: Hopped Up Brown

Bottled: Litehaus Wheat, Orange APA, Rauchbier, Willy's Cream Stout

Kegged: Tank 7 Clone renamed "Le Ferme" (dryhopped cascade, sorachi), Caramel Amber Ale, Trout Bum APA, 3 Dogs APA


Gallons Brewed Since June: 53.5
_______________________________________________
I seriously cannot imagine a day or life without beer!

ozzy1038 is offline

Reply With Quote Quick reply to this message
Old 09-14-2011, 12:14 AM   #2989
ozzy1038
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2011
Posts: 387
Liked 10 Times on 10 Posts
Likes Given: 1

Default

Quote:
Originally Posted by Jaysus View Post
ozzy1038> I love how you have your gas lines perfectly cut for each keg!
Thanks. I could be considered slightly OCD. Which can be good or bad. I wanted it to be as clutter free as possible.
__________________

_______________________________________________
On Deck: Cream Ale and Blue Moon clone for MIL

Primary: Hopped Up Brown

Bottled: Litehaus Wheat, Orange APA, Rauchbier, Willy's Cream Stout

Kegged: Tank 7 Clone renamed "Le Ferme" (dryhopped cascade, sorachi), Caramel Amber Ale, Trout Bum APA, 3 Dogs APA


Gallons Brewed Since June: 53.5
_______________________________________________
I seriously cannot imagine a day or life without beer!

ozzy1038 is offline

Reply With Quote Quick reply to this message
Old 09-14-2011, 12:51 AM   #2990
Flomaster
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Orange, Ca
Posts: 2,146
Liked 34 Times on 32 Posts
Likes Given: 37

Default

Quote:
Originally Posted by ozzy1038 View Post
I will agree and say it took some balls and maybe a little stupidity to drill that hole. I ASSUMED the all the cooling was done elsewhere in the freezer. There was frost on the front of the freezer and I figured it was there. I decided to just go for it and hope I was right or that I would miss something. I was or I did! I think the price played a role in my decision as well!

I used a 1/2" bit for the gas line which is 9/16". I cut the tip of the hose at an angle to get it in the hole and then rotated it back and forth while pushing to get it through. I had to use pliers on the other side to pull the hose through. It's safe to say it is not leaking around that hose.

I thought about putting the CO2 tank in the freezer, but that would limit my capacity. Plus, I want to know exactly how much CO2 I have and the cold wont allow that. I also thought about waiting in case I modify it and run the hose through the board spacer, but am not sure if I will do that with this freezer. I may get towers or upsize next spring.
I have my 20# tank inside my keezer currently but want to move it outside. going through the back or sides would be easiest of coarse, but my balls aren't as big as yours. I guess I could use a hole saw and just barely cut into the keezer and once I get through the outer skin use a screw driver to make sure I don't hit any coolant lines. I was thinking that the back at the very top near where the lid seals would be a good spot as well.

-=Jason=-
