Old 08-31-2011, 12:38 AM   #2951
AeroT
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2011
Location: Minneapolis, MN
Posts: 31
Default








Heres mine
__________________
AeroT is offline

Reply With Quote Quick reply to this message
Old 08-31-2011, 12:48 AM   #2952
david83
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Tolland County CT
Posts: 327
Liked 8 Times on 8 Posts

Default

[IMG][/IMG] heres mine 2 taps for now although the thing can hold 6 kegs

__________________

-Problem is a lot of people are retarded, and one thing retarded people are good at is blaming everyone else when they do something idiotic-



Keg 1-Slap U in the face Orange Kolsch!
Keg 2-English brown eYe ale!

david83 is offline

Reply With Quote Quick reply to this message
Old 08-31-2011, 12:48 AM   #2953
david83
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Tolland County CT
Posts: 327
Liked 8 Times on 8 Posts

Default

oh and it is in my living room !!!

__________________

-Problem is a lot of people are retarded, and one thing retarded people are good at is blaming everyone else when they do something idiotic-



Keg 1-Slap U in the face Orange Kolsch!
Keg 2-English brown eYe ale!

david83 is offline

Reply With Quote Quick reply to this message
Old 09-01-2011, 03:07 AM   #2954
Rob_
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2011
Location: Raleigh, NC
Posts: 17
Default Lowes Fridgedaire Kegerator

It was a pretty straight forward build. A couple of notes...

-used a small chisel to break the tabs securing the top to the front
-did not reuse the housing for the temperature gauge / door light
-soldered the connection closed for the door switch light and filled the hole with GreatStuff foam
-used the wires for the light, to power a fan box that cools the tower
-picked up a project box, 120VAC 4" fan, fuse assembly and 0.5Amp fuse from RadioShack
-cut off one side of the 3/4" coupler and epoxied it to the inside of the project box.
-used a whole saw for the fan cut out, but ran the drill backwards so that it would not bite into the plastic project box.
-I'm using pin lock kegs. It's a tight fit, but 2 will fit... you need to cut out some of the trim where the freezer shelf was to get it to fit.
-2x 12" long 3/4" copper tubing and 3/4" vinyl tubing sandwiched between the copper runs up into the tower.
-tied them together with tie wraps and yet loose enough, so that it was snug against the hole I drilled. This prevent it from slipping while I was filling in the gaps with GreatStuff Foam
-used 3/4" copper tubing b/c I could feed the brew lines down it without removing the fittings
-wrapped the copper tubing in the tower with pipe wrap
-used a 3/4" piece of plywood with pronged Tee-Nut to secure the tower to the lid
-used a Rotozip to make a 3/4" deep hole the same size as my piece of plywood
-secured the plywood with Foam glue
-used white duct tape to make the tubing coming down from the tower look neater and also cover any place I sprayed in Great Stuff foam.
-Cut out the door insert, but left the groove for the weather stripping.
-completely removed all of the closed foam insulation in the door and replaced it with vinyl-one-side fiberglass insulation (had some laying around from the garage door insulation kit)
-had the glass cutter at Lowe's cut the Lexan to size, to cover the hole in the door.
-painted the Lexan white on one side and siliconed the Lexan to the door with the painted side towards the insulation
-secured the air value header with doublesided High Bond tape to the wall first and then followed up with some sheet metal screws.
-the rails (sold as drawer handles) are secured to the lid with some washers and the screws that came in the package.
-secured the lid down with foam glue and construction adhesive around the outer edge.

Please excuse the grammar, spelling and typos... I'm on my 3rd pint of the Moose Drool clone.

Oh and it lives in my home office.

p1010508.jpg   p1010510.jpg
__________________
Rob_ is offline

Reply With Quote Quick reply to this message
Old 09-01-2011, 03:20 PM   #2955
joey11bball
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Boston, MA
Posts: 58
Default

Painted chalkboard paint for the beer description and airbrushed the hop vines

__________________
joey11bball is offline

Reply With Quote Quick reply to this message
Old 09-01-2011, 10:19 PM   #2956
brewthunda
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2008
Location: Portland, OR
Posts: 189
Liked 7 Times on 6 Posts

Default

Quote:
Originally Posted by 77bawls View Post


Is that an Ice maker or trash compactor on the left?

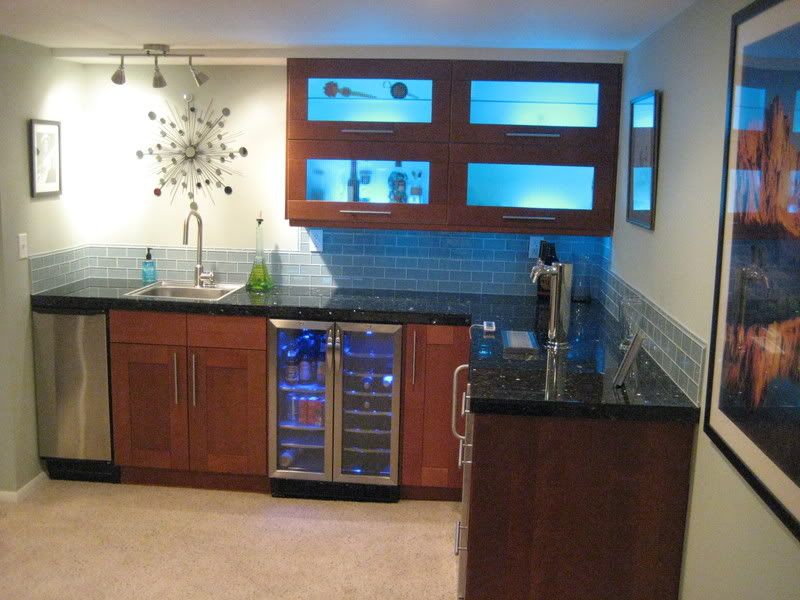

Hey guys - sorry for the slow reply. That is an ice maker. Makes 25 lbs of cocktail ice a day. It's pretty neat - it freezes sheets of ice and spits them out onto a heated metal grid and perfect little clear ice cubes fall through. The ice storage area holds 50 lbs of ice, but isn't refrigerated, so it is constantly melting. That means that your ice is fresh and that it's relatively "warm" ice, so that it melts just right when you make a cocktail.

Someone else asked about the cabinets - they're from IKEA. My father in law is a tile guy and made the granite counter from 18"x24" tiles.

Sigh - unfortunately we sold that house in April and had to leave the bar there. That was hard to give up. But we got several offers on the house within days of putting it up for sale and I think the basement helped quite a bit.

Right now my wife and I are checking out this thread for ideas for a keezer.
__________________
brewthunda is offline

Reply With Quote Quick reply to this message
Old 09-01-2011, 10:47 PM   #2957
Chuginator
Senior Member
Feedback Score: 0 reviews

Chuginator's Avatar
Recipes

Join Date: Feb 2011
Location: , Idaho
Posts: 562
Liked 45 Times on 37 Posts
Likes Given: 114

Default

Build another one!!

__________________
Chuginator is online now

Reply With Quote Quick reply to this message
Old 09-02-2011, 04:30 AM   #2958
Fid
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2010
Location: Seattle
Posts: 454
Liked 12 Times on 11 Posts
Likes Given: 3

Default



As a UI Alum I seriously dig this thing. Those are all just decals on there I assume?
__________________
Fid is offline

Reply With Quote Quick reply to this message
Old 09-04-2011, 08:24 AM   #2959
thewobblythong
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Melbourne, Victoria
Posts: 5
Default

wow. epic thread. BigKahunaBrewer mentioned it on twitter, and I had to take a look. Just lost the last 4 hours trawling through the kegerator awesomeness.

Currently designing my own kegerator setup. Needs include being pretty small, able to hold two (hopefully three) corny kegs, and being approved for the house by SWMBO...

I am buying three kegs on the weekend, and will be sorting out taps & CO2 shortly after. Then I start hunting for the perfect fridge.

So much inspiration here. Nice work all!

__________________
thewobblythong is offline

Reply With Quote Quick reply to this message
Old 09-05-2011, 05:19 AM   #2960
Hoppopotomus
Cedar Hollow Brewing
Feedback Score: 0 reviews

Hoppopotomus's Avatar
Recipes

Join Date: Nov 2010
Location: Ortonville/Oxford, Michigan
Posts: 1,427
Liked 83 Times on 72 Posts
Likes Given: 112

Default

Hey Thewobblythong (your username cracks my a$$ up!) Give 'er all you got, you only live once. If your thinking 3 kegs....you just might as well go for 4 kegs with 4 taps and save you self some time upgrading down the line. No Mercy!

__________________
Cedar Hollow Brewing

Hoppo's Rustic Basement Bar Build:

Hoppo's Knotty Pine/Cedar Log Keezer Build:

Hoppo's Rustic Dual Fermentation Chamber Builds:

Hoppo's Motorized Grain Mill:

Hoppo's Rustic E-Brewery Build:
Hoppopotomus is offline

Reply With Quote Quick reply to this message
