Old 02-09-2010, 03:12 AM   #11
Junior Member
Recipes

Join Date: Nov 2008
Location: U.P. Michigan
Posts: 20
Default

Here is a four holer Azek trim board collar that I made for my son's keezor, he will be picking it up this weekend.

Gander is offline Reply With Quote
Old 02-09-2010, 03:17 PM   #12
Senior Member
Recipes

Join Date: Oct 2009
Location: Darien, CT
Posts: 166
Default

Gander, what's your source to buy the Azek material and price?

I haven't made my way to HD yet and I don't want to waste a trip if it won't be there.
tincob is offline Reply With Quote
Old 02-09-2010, 03:54 PM   #13
Junior Member
Recipes

Join Date: Nov 2008
Location: U.P. Michigan
Posts: 20
Default

I sell Azek as well as many other building materials, located in the Upper Peninsula of Michigan. The four holer shown above is for a 7.2 cu ft Magic Chef and used one piece of Azek 1x8x18' and a 4 oz. can of glue to construct.

1x6x12' 28.50, 1x6x18' 42.50, 1x8x12' 37.75, 1x8x18' 56.75, 4 oz adhesive 7.50

Azek has a website with a dealer locator http://www.azek.com/azek-trim/
You would be looking for Azek trim not their decking product. Let me know if you have any other questions.
Gander is offline Reply With Quote
Old 02-09-2010, 10:44 PM   #14
Junior Member
Recipes

Join Date: Jan 2010
Location: Colorado
Posts: 22
Default

Interested in building an insulated collar from Azek trim.
How difficult is it to work with this material (cutting, holes, cementing)? I'm thinking the stability of mounting the hinge and taking the strain on the mounting screws(?) over time. Is there more stability in using wood for the outer collar with insulation (Azek or otherwise) inside?
Pumori is offline Reply With Quote
Old 02-09-2010, 11:31 PM   #15
Junior Member
Recipes

Join Date: Nov 2008
Location: U.P. Michigan
Posts: 20
Default

Azek will cut, route, and sand very much like pine. I make my collars by screwing and gluing together the four sides out of ¾” material then laminating an outside layer of ¾” by clamping for an overall thickness of 1 ½”. This way there are no fasteners exposed on the collar inside or out. Do use their adhesive, I have used regular plumbing PVC cement with Azec but it sets very fast, the Azec glue is much more workable. This stuff holds screws just fine. I used a paddle bit to make my drilled holes, drilling from one side until the point of the bit breaks thru, then finish from the opposite side to prevent chipping on the back side. I use this technique with any material wood or Azek. Azek is much more stable than wood it will not crack, twist or warp, along with it's insulation value it is ideal for this type of use. I am sure that I have a few pieces of this stuff in my shop PM your address to me and I will mail you a small piece.
Gander is offline Reply With Quote
Old 02-10-2010, 01:30 AM   #16
Senior Member
Recipes

Join Date: Oct 2008
Location: West Michigan
Posts: 516
Default

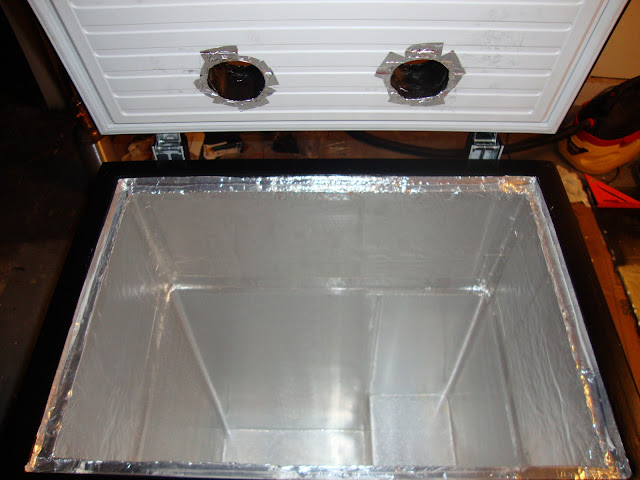

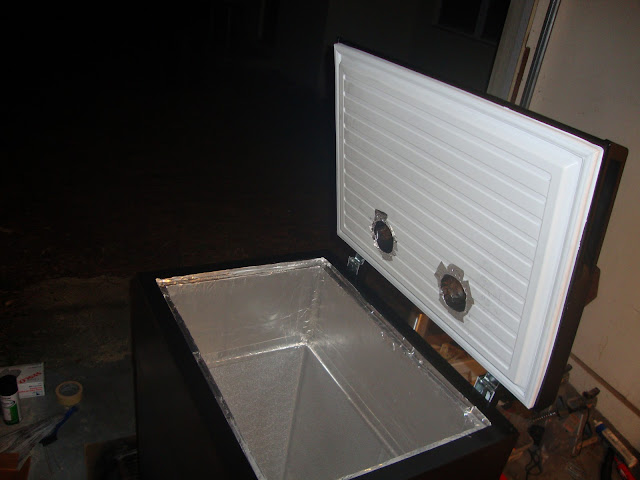

Not a very good picture, but I insulated mine using 1" Super Tuff-R Brand foil lined insulation, caulk, and foil tape.

HOP-HEAD is offline Reply With Quote
Old 02-12-2010, 10:05 PM   #17
Senior Member

BSBrewer's Avatar
Recipes

Join Date: Jan 2010
Location: Bergen County, NJ
Posts: 390
Default

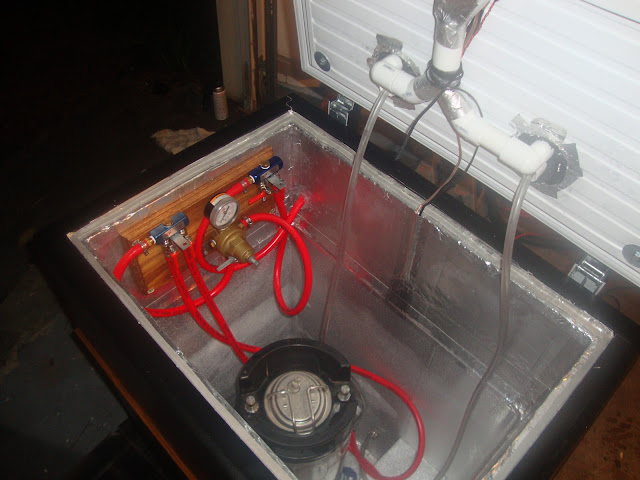

Here's a shot of mine - not completed yet - but just stapled some rolled insulation to the inside of the collar to give some added barrier

__________________
Bolero Snort Brewery...No BS - just ragin' good beers

On the journey from home brewing to brewery...follow our progress below:

BoleroSnort.com|Twitter|Facebook
BSBrewer is online now Reply With Quote
Old 07-22-2010, 02:58 PM   #18
Junior Member
Recipes

Join Date: Jun 2010
Location: Florida
Posts: 13
Default

Here's my insulated collar... two layers of 3/4" foam cut out from a 4'x8' sheet I got at Lowes.





sigfried is offline Reply With Quote
Old 07-22-2010, 04:13 PM   #19
Senior Member

bad coffee's Avatar
Recipes

Join Date: Jun 2008
Location: NYC
Posts: 2,510
Default

Here's mine.

Spray adhesive and some 1/2" stuff I had lying around. Since it's sheet styro I didn't seal/tape the ends.

B
Attached Images

__________________
Quote:
Originally Posted by GilaMinumBeer
Why do you think they choose that path? (.)(.) = $$$$$$$$$
Quote:
Originally Posted by YooperBrew View Post
And, it's so, well, BIG.
bad coffee is offline Reply With Quote
Old 01-31-2011, 07:49 PM   #20
Senior Member
Recipes

Join Date: Dec 2008
Location: Boulder, CO
Posts: 114
Default

Quote:
Originally Posted by BSBrewer View Post
Here's a shot of mine - not completed yet - but just stapled some rolled insulation to the inside of the collar to give some added barrier

bsbrewer, do you have a thread on your keezer, i'm curious about the collar that looks to open like a door
jasper9 is offline Reply With Quote
