Default Regulator leak :(

Ok, so I've got a big CO2 tank, and have been troubleshooting this for a while now. I thought I had a leak somewhere since the tank would empty after a couple of months(2-3), so it's atleast a small leak. Anyway, after refilling again yesterday, I started digging. I'd previously checked all my hoses and connections with soapy water, and the regulator's connections(threads, hose outlet, etc...). Couldn't find anything, so I finally just splashed the whole regulator with soapy water.....and I finally got a bubble!

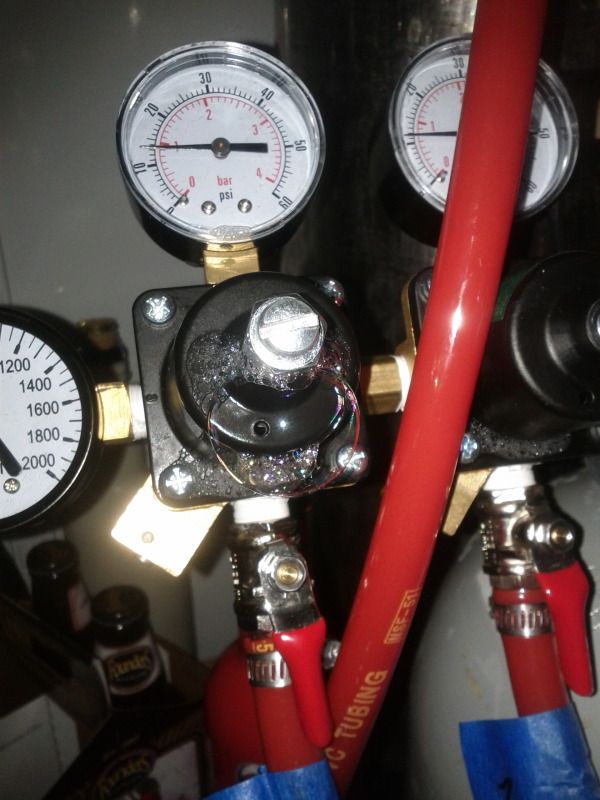

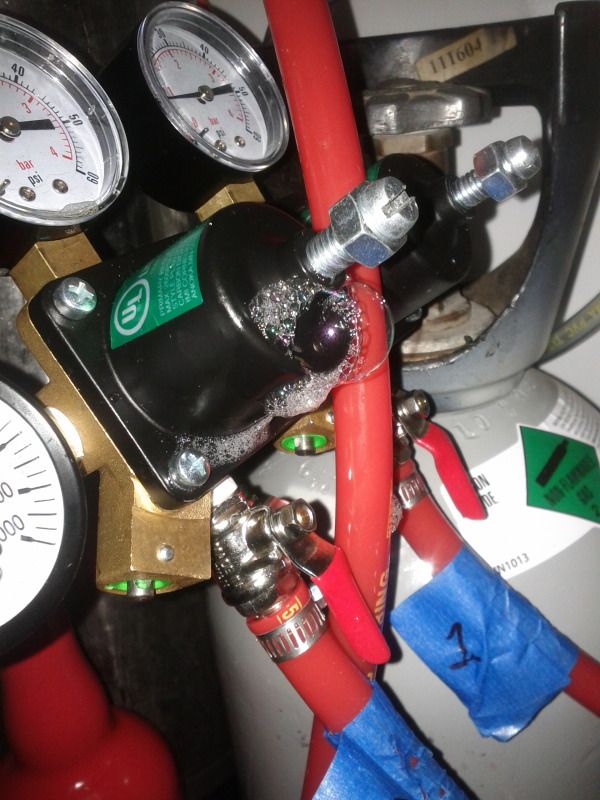

But, I'm not sure if it's supposed to be doing that or not. The bubble is coming out of a small hole underneath the screw I use to set pressure. I have a double regulator and only the regulator on the left does this, if I cover that hole on the right one with soapy water, I get no bubbles, so I'm guessing there shouldn't be gas(air???) coming out of that hole on the left one.

So now the question is, how do I go about fixing this? Anyone know?



__________________
dummkauf is offline

Reply With Quote Quick reply to this message
Old 04-04-2012, 03:20 PM   #2
phoenixs4r
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2011
Location: Hayward, California
Posts: 1,506
Liked 54 Times on 49 Posts
Likes Given: 38

Default

Take the regulator apart and replace the oring or diaphragm, whichever is busted. Its been while since I've taken one apart so I don't vividly recall the inner workings, but I do remember them being deceptively simple devices.

phoenixs4r is offline

Reply With Quote Quick reply to this message
Old 04-04-2012, 03:27 PM   #3
dummkauf
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Minneapolis MN
Posts: 784
Liked 11 Times on 10 Posts

Default

thanks, I was guessing something wasn't sealing in there.

Since this will be the first regulator I've ever pulled apart(I'm mechanically inclined enough that I'm not worried about doing this), if I were to walk into my LHBS(Midwest) and ask them for an oring or a diaphram, they would know what Im' talking about right?

__________________
dummkauf is offline

Reply With Quote Quick reply to this message
Old 04-04-2012, 03:30 PM   #4
phoenixs4r
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2011
Location: Hayward, California
Posts: 1,506
Liked 54 Times on 49 Posts
Likes Given: 38

Default

I've never shopped there. I'd imagine its the little oring, and if so you could get it at a hardware store. If its the diaphragm I'm not sure where you would get that. Maybe try a welding supply shop, airgas if you have one in your area.

phoenixs4r is offline

Reply With Quote Quick reply to this message
Old 04-05-2012, 02:42 AM   #5
dummkauf
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Minneapolis MN
Posts: 784
Liked 11 Times on 10 Posts

Default

Ok, I finally pulled apart the regulator tonight. I can't see any visible tears or holes in the diaphragm or the little orange ring the diaphragm nipple goes into.

Looking at midwest's site, this looks like what I would need to replace the parts: http://www.midwestsupplies.com/keggi...epair-kit.html

However, when I pulled the face off, all I saw was the diaphragm and the orange gasket thingie. I have no clue what the little black o-ring is for, or the little metal piece....maybe I need to pull the regulator apart more??? I just removed the 4 screws to get the front cover off so far.

Does anyone by any chance have a diagram of regulators Midwest sells? This is the regulator I have: http://www.midwestsupplies.com/keggi...regulator.html

I've found some regulator schematics with google, but none look exactly like the one I have.

__________________
dummkauf is offline

Reply With Quote Quick reply to this message
Old 04-05-2012, 03:13 AM   #6
phoenixs4r
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2011
Location: Hayward, California
Posts: 1,506
Liked 54 Times on 49 Posts
Likes Given: 38

Default

Is there an oring on the adjustment screw where it is leaking? If so I'd replace that and then go from there.

phoenixs4r is offline

Reply With Quote Quick reply to this message
Old 04-05-2012, 03:17 AM   #7
day_trippr
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Stow, MA
Posts: 10,593
Liked 1283 Times on 1034 Posts

Default

Did you come across this one? A pdf parts explosion drawing of what might be a generic Cornelius primary regulator. It lists the repair kit contents by item number referencing the parts table and diagram...

Cheers!

__________________
day_trippr is offline

Reply With Quote Quick reply to this message
Old 04-05-2012, 03:20 AM   #8
dummkauf
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Minneapolis MN
Posts: 784
Liked 11 Times on 10 Posts

Default

Quote:
Originally Posted by phoenixs4r View Post
Is there an oring on the adjustment screw where it is leaking? If so I'd replace that and then go from there.
Negative. The adjustment screw has a metal bowl on the end that pushes against a spring. The sprint presses on the brass center of the diaphragm. The diaphragm nipple sticks into the orange gasket. There are no other visible rubber parts without pulling the regulator even further apart.

edit: I also pulled apart the regulator on the right. This is exactly the same as the left, but doesn't leak, and also doesn't leak after reassembly......I thought I might be missing a gasket in the left one, but after examining the right everything appears to be the same between the 2.
__________________
dummkauf is offline

Reply With Quote Quick reply to this message
Old 04-05-2012, 03:21 AM   #9
dummkauf
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: Minneapolis MN
Posts: 784
Liked 11 Times on 10 Posts

Default

Quote:
Originally Posted by day_trippr View Post
Did you come across this one? A pdf parts explosion drawing of what might be a generic Cornelius primary regulator. It lists the repair kit contents by item number referencing the parts table and diagram...

Cheers!
No I did not....thank you!!!!!!!!!
__________________
dummkauf is offline

Reply With Quote Quick reply to this message
Old 04-05-2012, 03:23 AM   #10
phoenixs4r
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2011
Location: Hayward, California
Posts: 1,506
Liked 54 Times on 49 Posts
Likes Given: 38

Default

Quote:
Originally Posted by dummkauf

Negative. The adjustment screw has a metal bowl on the end that pushes against a spring. The sprint presses on the brass center of the diaphragm. The diaphragm nipple sticks into the orange gasket. There are no other visible rubber parts without pulling the regulator even further apart.
Hmmm. Could have been a misaligned diaphragm. You could try to line it up better and reassemble and see if that helps. Its hard to trouble shoot a regulator over the internet. Lol
