Default Plate Filtering Pictorial

I recently started filtering my beers. I like being able to serve bright, sediment free beer, especially to those that I'm trying to convert to craft and homebrewed beer. While I don't filter everything, I do filter beers that I plan to transport and serve elsewhere. I plan to do some experiments in the future to explore the changes in flavor, body, and the head retention that filtering imparts on my beers.

I am using the plate filter setup from morebeer.com:

This photo shows all of the components of the filter. As you can see, there are two ends of the filter body separated by a center ring. The green beer is forced from the center of the unit through the filter pads on each side of the housing. The clear beer then travels from each half of the housing to a "Y" adapter to a single hose, and into the receiving keg.

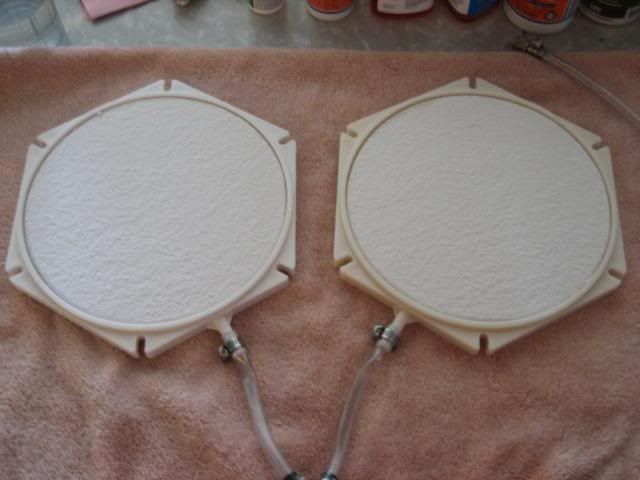

The first step in the filtering process is to assemble the thoroughly cleaned apparatus. One filter plate is placed on each side of the housing, with the smooth side facing outward.

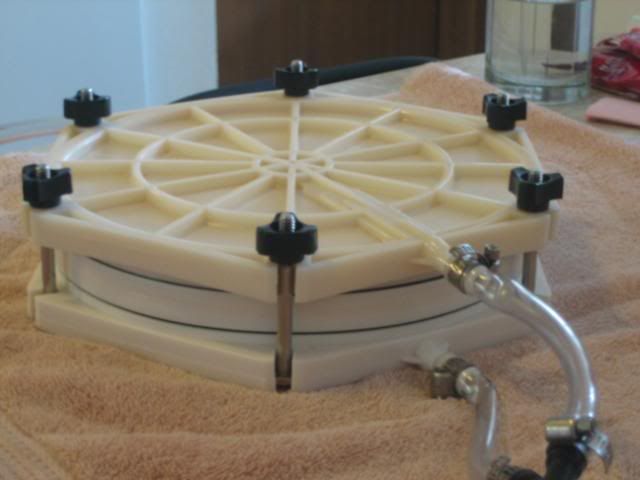

Next, put the two sides of the housing together over the center ring, making sure the o-rings on either side are properly seated. Tighten down the nuts evenly and securely in order to minimize leakage. Only hand-tighten them.


At this point, I fill my receiving keg half full with Star-San and roll it around in the keg to sanitize it. I then connect the keg to my CO2 at ~5 psi and push about a gallon of sanitizer through the filter and into a bucket. This sanitizes the filter housing and lines. Honestly, I'm not sure if the filter plates can really be sanitized effectively, but this is what I'm doing. I unhook the beer line from the keg of sanitizer and leave the filter unit packed with sanitizer for a few minutes. I then empty the keg of sanitizer and purge it with CO2.

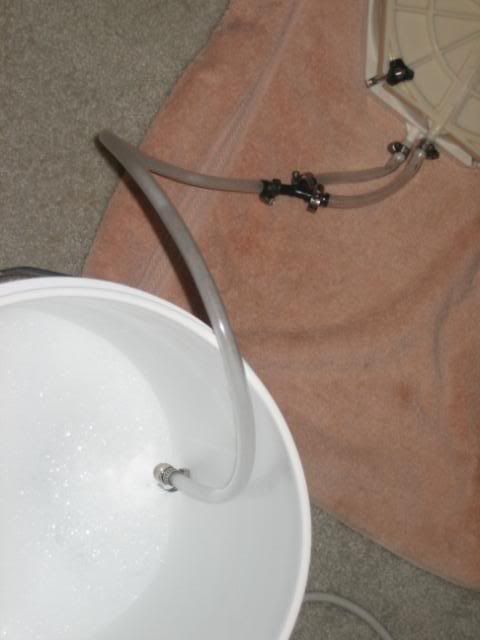

I then push CO2 from the keg through the filter housing to flush the remaining sanitizer and any oxygen from the system.

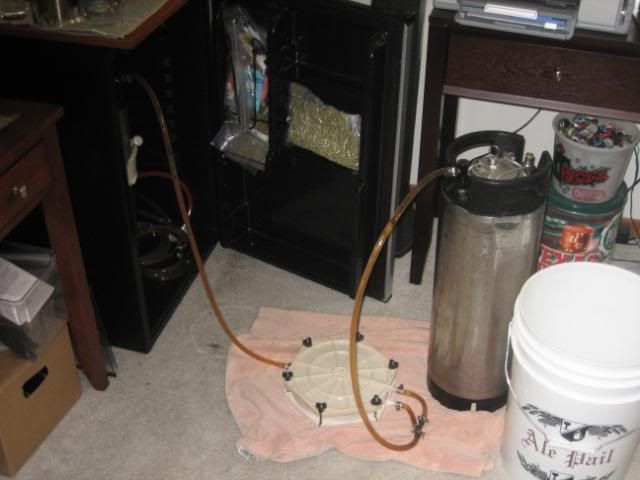

I connect my keg of uncarbonated green beer to ~5 psi of CO2, and connect the liquid tubing from the filter unit to this keg. I discard the residual sanitizer and first pint or so of beer that come through the filter before I connect the tubing to the beer out post on the CO2-purged receiving keg.

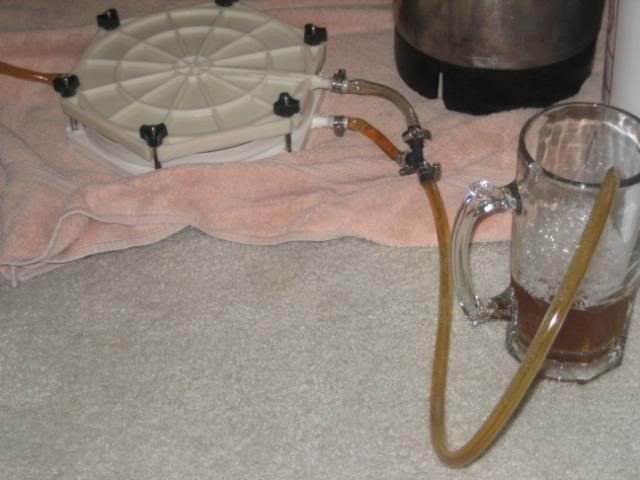

I open the relief valve on the receiving keg and let the beer flow. With 5 psi of CO2 pressure on the source keg, it takes about 20 minutes to filter 5 gallons of beer. Once the source keg is empty and I start to see CO2 bubbling from the beer out line on the filter housing, I remove the beer lines from both kegs. At this point there might be half a cup of beer left in the filter housing. I purge the headspace of the receiving keg with CO2 again and force carbonate the beer as usual.

__________________
College Creek Brewing Company, est. 2008
Primary: Belma/Cascade Pale Ale, Cranberry Melomel
Secondary: None
Bottled: Imperial Pumpkin Ale, Founder's Breakfast Stout Clone

On Tap:
Keg 1: Belgian Table Beer
Keg 2: Belgian Tripel
ISUBrew79 is offline

Reply With Quote Quick reply to this message
Old 04-09-2011, 10:45 PM   #2
jafo28
Feedback Score: 2 reviews

jafo28's Avatar
Recipes

Join Date: Aug 2010
Location: NJ
Posts: 691
Liked 47 Times on 29 Posts
Likes Given: 104

Default

Very cool.

__________________
jafo28 is offline

Reply With Quote Quick reply to this message
Old 04-09-2011, 11:36 PM   #3
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,284
Liked 63 Times on 54 Posts
Likes Given: 122

Default

Quote:
Originally Posted by ISUBrew79 View Post
I recently started filtering my beers. I like being able to serve bright, sediment free beer, especially to those that I'm trying to convert to craft and homebrewed beer. While I don't filter everything, I do filter beers that I plan to transport and serve elsewhere. I plan to do some experiments in the future to explore the changes in flavor, body, and the head retention that filtering imparts on my beers.
Well done.
Pictures make everything a lot easier..

Similar set-up explaining the process only

http://www.homebrewtalk.com/f13/i-go...-i-use-200618/

Cheers,
ClaudiusB
ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 04-10-2011, 02:26 AM   #4
ISUBrew79
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2008
Location: Iowa
Posts: 205
Liked 3 Times on 3 Posts

Default

Quote:
Originally Posted by ClaudiusB View Post
Well done.
Pictures make everything a lot easier..

Similar set-up explaining the process only

http://www.homebrewtalk.com/f13/i-go...-i-use-200618/

Cheers,
ClaudiusB
So it looks like you have a few of these in series? From the pictures, it looks like 7 micron then 3 micron. Is there a tighter filter after that?

I am using the filter pads from MoreBeer. I've tried the rough pads, which are supposedly 5-7 micron. They didnt really clear the beer up much, and since then I have used the polish filter pads, which they say are 0.5-1 micron. They also sell what they call sterile filter pads, which I thought were excessive. Where do you get your filter pads?
__________________
College Creek Brewing Company, est. 2008
Primary: Belma/Cascade Pale Ale, Cranberry Melomel
Secondary: None
Bottled: Imperial Pumpkin Ale, Founder's Breakfast Stout Clone

On Tap:
Keg 1: Belgian Table Beer
Keg 2: Belgian Tripel
ISUBrew79 is offline

Reply With Quote Quick reply to this message
Old 04-11-2011, 03:24 AM   #5
ISUBrew79
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2008
Location: Iowa
Posts: 205
Liked 3 Times on 3 Posts

Default

Another point I should make is the importance of having your beer as cold as possible, without freezing, prior to filtration. By doing so, your are encouraging the formation of chill haze. The small particles of agglomerated protein that result in chill haze can then be filtered out if your have tight enough filter media. This process is sometimes called chill-proofing.

I have failed to do this on the last couple batches. I have chilled the beer down to about 38 degrees in my kegerator, which takes about 24 hours when I start with room temperature beer. I then filter the beer right away. I have gotten clear beer immediately after filtering, but more chill haze developed after the filtered beer was refrigerated overnight.

In the future, I plan to get the beer down to 35 degrees or so and hold it there for three or four days to set the chill haze prior to filtration.

I should also add that I have gotten the brightest beer when I have used gelatin finings in the secondary prior to filtration. My last two batches, which developed the chill haze after filtration, were not treated with gelatin finings.

__________________
College Creek Brewing Company, est. 2008
Primary: Belma/Cascade Pale Ale, Cranberry Melomel
Secondary: None
Bottled: Imperial Pumpkin Ale, Founder's Breakfast Stout Clone

On Tap:
Keg 1: Belgian Table Beer
Keg 2: Belgian Tripel
ISUBrew79 is offline

Reply With Quote Quick reply to this message
Old 04-12-2011, 04:11 AM   #6
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,284
Liked 63 Times on 54 Posts
Likes Given: 122

Default

Quote:
Originally Posted by ISUBrew79 View Post
So it looks like you have a few of these in series? From the pictures, it looks like 7 micron then 3 micron. Is there a tighter filter after that?
1 micron
Quote:
Where do you get your filter pads?
One of the vendors is Austin Homebrew Supply.

Quote:
In the future, I plan to get the beer down to 35 degrees or so and hold it there for three or four days to set the chill haze prior to filtration.
My beers age at 34° F which is perfect at filtration time.

Quote:
I should also add that I have gotten the brightest beer when I have used gelatin finings in the secondary prior to filtration. My last two batches, which developed the chill haze after filtration, were not treated with gelatin finings.
I don't add anything to my beer, old school
I am happy with the outcome.


Cheers,
ClaudiusB
__________________
My Brewery Pics
Grain Mill Glycol Chiller
Keg Washer
ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 04-12-2011, 06:17 PM   #7
hlumbard
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Posts: 191
Liked 6 Times on 4 Posts
Likes Given: 3

Default

Got pictures of the dirty filters? I've always wondered what comes out.

__________________
MORE DIY PROJECTS!!!!
hlumbard is offline

Reply With Quote Quick reply to this message
Old 04-12-2011, 07:02 PM   #8
ISUBrew79
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2008
Location: Iowa
Posts: 205
Liked 3 Times on 3 Posts

Default

Quote:
Originally Posted by hlumbard View Post
Got pictures of the dirty filters? I've always wondered what comes out.
I don't have any pics of the used filters at the moment. I will be sure to take some next time I filter a batch, which should be later this week.

Honestly, I haven't seen a whole lot of material stuck in the used filters. They generally just tend to have a dirty light brownish appearance. Occasionally I will see a few pellet hop particles that managed to stick around that far along in the process. I've never tried filtering a real yeasty beer, but I'm pretty sure there would be a lot of yeast sludge caught up in the media if you did.
__________________
College Creek Brewing Company, est. 2008
Primary: Belma/Cascade Pale Ale, Cranberry Melomel
Secondary: None
Bottled: Imperial Pumpkin Ale, Founder's Breakfast Stout Clone

On Tap:
Keg 1: Belgian Table Beer
Keg 2: Belgian Tripel
ISUBrew79 is offline

Reply With Quote Quick reply to this message
Old 07-07-2011, 07:04 PM   #9
DPlan00
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2010
Location: Chicago
Posts: 71
Default

I'll be using this same filter for the first time tonight. The beer has been in the dispensing keg in the fridge for 24 hours now. I have a question for you about running the star san through the pads. Do you find that there is a lot of star san left in the pads? Or, are you able to purge most of it out with CO2?

__________________
DPlan00 is offline

Reply With Quote Quick reply to this message
Old 07-08-2011, 12:09 AM   #10
Reno_eNVy
Feedback Score: 0 reviews

Reno_eNVy's Avatar
Recipes

Join Date: Oct 2008
Location: Reno, Nevada
Posts: 6,259
Liked 200 Times on 169 Posts
Likes Given: 68

Default

This is very cool, I've always wondered about the set-up. Seems easy and works well.

And +1 on seeing some filthy filters

__________________
Primary: air and sadness =(

Kegged: air and sadness =(

Bottled: English Barleywine (brewed 9/26/09 -- bottled 5/5/10)


LET'S GO LA!
LA CAMPEONES!
PLAY FOR GLORY, THE GLORY LA!
