Default Frigidaire 7.2 Chest Freezer..... Collar Size?

Anyone have a Frigidaire 7.2 that they've added a collar to that wouldn't mind helping a brother out? I'd like to get to work on the collar, etc., but I'm buying the parts as I go to help alleviate the $ pain.... first the freezer so I can start the build, then the temp controller, then the kegging goodies.... very likely the 3 bottle premium kit from kegconnections with a few changes.

Maybe I'll just go buy a cornie locally to help with the sizing, but if anyones already measured it, it'd help.... curious how tall the collar needs to be to place a cornie on the hump? Even if someone wants to measure a cornie for me? How about a 10 lb Co2 tank... if it's taller than a cornie? Would prefer shorter over taller.... hoping a 6 inch collar clears...

__________________

HOP-HEAD is offline

Reply With Quote Quick reply to this message
Old 10-10-2009, 03:02 AM   #2
BuzzCraft
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Blacksburg, VA
Posts: 426
Default

keg sizes are in this thread:
http://www.homebrewtalk.com/f35/sizi...ny-kegs-75449/

i think a 10# tank is taller than a cornie, but not certain.

__________________
BuzzCraft is offline

Reply With Quote Quick reply to this message
Old 10-10-2009, 05:15 PM   #3
RiverRat280
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2009
Location: Eugene OR
Posts: 64
Default

I have the same freezer, I'm putting it together today so I'll try to remember to post how tall it needs to be but I believe a 8in collar will work for putting cornys on the hump. I'd just locate the CO2 cylinder outside so you have more room for kegs in it. I just drilled two holes for my two different pressure lines running into it through the collar.

__________________
RiverRat280 is offline

Reply With Quote Quick reply to this message
Old 10-10-2009, 05:32 PM   #4
Rick500
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: KY
Posts: 2,617
Liked 10 Times on 8 Posts
Likes Given: 1

Default

I'm not presently where my keezer is, so I can't measure directly, but I built my collar with maple 1x8 and two Corny kegs will fit on the hump with room for disconnects.

__________________
Rick500 is offline

Reply With Quote Quick reply to this message
Old 10-19-2009, 04:26 AM   #5
Quaffer
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: Snohomish, WA
Posts: 488
Liked 26 Times on 15 Posts
Likes Given: 1

Default

Quote:
Originally Posted by HOP-HEAD View Post
Anyone have a Frigidaire 7.2 that they've added a collar to that wouldn't mind helping a brother out?
.... curious how tall the collar needs to be to place a cornie on the hump?
I am converting the same freezer now, and I find that I need the collar to be 7.25" tall to fit a corny with disconnects on the hump, which incidentally is the width of a 2x8.
__________________
Quaffer is offline

Reply With Quote Quick reply to this message
Old 10-20-2009, 01:07 AM   #6
HOP-HEAD
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2008
Location: West Michigan
Posts: 519
Liked 9 Times on 8 Posts

Default

Nice.... post pics at the end, and I will too.... we'll compare.

__________________
HOP-HEAD is offline

Reply With Quote Quick reply to this message
Old 10-20-2009, 01:22 AM   #7
Whut
Mmmmm, beer
Feedback Score: 2 reviews

Whut's Avatar
Recipes

Join Date: Mar 2009
Location: Peoria, AZ
Posts: 8,368
Liked 1653 Times on 1549 Posts
Likes Given: 8593

Default

Quote:
Originally Posted by BuzzCraft View Post
i think a 10# tank is taller than a cornie, but not certain.
They're smaller. Given todays standards, a corney is 23" tall and a 10lb CO2 tank is 20.5" tall.
__________________
IT Guys Vacuum 2013: Never Forget - WildGingerBrewing
I only like three kinds of beer: lkgged, bottled, or canned - bad coffee
I have some pent-up banning I need to administer - Reelale

Get off my lawn! - shecky
Shut up, old man!- Sharona

Whut is offline

Reply With Quote Quick reply to this message
Old 11-04-2009, 07:33 PM   #8
Cpt_Kirks
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2008
Location: Lakeland TN
Posts: 3,740
Liked 45 Times on 39 Posts

Default

Quote:
Originally Posted by Rick500 View Post
I'm not presently where my keezer is, so I can't measure directly, but I built my collar with maple 1x8 and two Corny kegs will fit on the hump with room for disconnects.

So, unmodified (other than a temp controller), it looks like that freezer will hold four kegs, plus room on the hump for other stuff.

Right?
__________________
Cpt_Kirks is offline

Reply With Quote Quick reply to this message
Old 11-04-2009, 08:23 PM   #9
elmetal
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2007
Location: Pembroke Pines, FL
Posts: 1,042
Liked 1 Times on 1 Posts

Default

this particular one pictured would hold 3.

my holiday 7.2 holds four but it's wider and thinner

__________________
Bottled: Imperial Stout[/SIZE]
elmetal is offline

Reply With Quote Quick reply to this message
Old 11-04-2009, 09:40 PM   #10
Rick500
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: KY
Posts: 2,617
Liked 10 Times on 8 Posts
Likes Given: 1

Default

Yep, three. I think if I really, really wanted to, I could probably get four jammed into the lower part, but it would involve shaving the rubber on the kegs down, and I'm not inclined to try it.

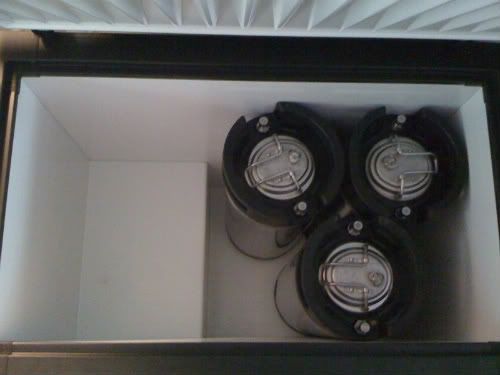

Here's a pic of three kegs in the lower part:


I'll also modify my earlier statement that two kegs will fit on the hump with a collar installed: They will, if you don't have taps over there. My four taps are all over on that left side, so only one keg will fit there.

__________________

Rick500 is offline

Reply With Quote Quick reply to this message
