Old 07-29-2009, 03:01 PM   #1
Dagatris
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2008
Location: Nashville, TN
Posts: 124
Default Distributor and Shank questions

I've currently got a kegging setup with picnic taps. 2 Keg Basic Keg Kit, Premium Kit This one with a dual body regulator. I'm about ready to move to faucets, but I'm a little confused on a couple of things.

1. I'm going to get a 4 way distributor Austin Homebrew Supply to split the air. I plan on running a single line into the fridge and mounting the distributor to the back wall. What's the best way to mount something inside the fridge? Screws don't seem like they would hold well, as it's just the plastic lining in the fridge holding it there. But I don't want to glue it down either, in case I ever want to move it.

2. I'll need a QD with liquid line running from the keg. That line runs into the back of the shank. The shank mounts through the fridge door. The faucet hooks to the shank. Seems simple enough. But what about all the wing nuts, tail pieces, fitting kits, beer nuts, and beer washers I keep seeing? I don't know where they go or which are needed. Most of the tutorials I find are showing how to hook up a tower, which seems a little different.

3. I want my CO2 tank outside. But that means if I want to take the tank somewhere (say to have it filled) I'll have to disconnect the gas line (which runs inside the fridge) from the regulator. Then hook it back up later. It seems like there is the potential for opening up a leak here. The dual body regulator I have came pre-assembled and attached to the tank. Is it pretty easy and straightforward to take one of the lines off and put back on? This won't mess up the fitting/seal in anyway? Is there something similar to a QD that I could use to make this a quicker process?

__________________
Primary: Strawberry Kiwi Wine
Wifes Secondary: Strawberry Wine
Kegged: Belgian Wit, Belgian Chocolate Stout
Drinking: Irish Stout, Ed's Apfelwein, Chocolate Stout, Holiday Spiced Ale, Irish Red Ale, Watermelon Wine
Dagatris is offline

Reply With Quote Quick reply to this message
Old 07-29-2009, 03:55 PM   #2
Suthrncomfrt1884
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2009
Location: Rockford, Illinois
Posts: 4,079
Liked 25 Times on 23 Posts
Likes Given: 3

Default

I have the same thing done with my CO2 tank. If I ever need to take it anywhere for a day or two, I just disconnect the gas in connectors from the keg, then unhook the line from the CO2 tank. I have an extra line and gas in connector for when I travel. I have no issues with seals.

As for your shank mounting. I bought all my faucets from Kegworks.com They sell faucet/shank combo's for $30 that come with all the hardware you'll need.

I would go ahead and screw the regulator into the side of your fridge. You'd be suprised how well a few screws will hold up, even in plastic. Just make sure you don't hit a cooling line.

__________________
He who drinks beer sleeps well. He who sleeps well cannot sin. He who does not sin goes to heaven.

Another HERMS rig...
Suthrncomfrt1884 is offline

Reply With Quote Quick reply to this message
Old 07-29-2009, 04:50 PM   #3
camiller
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2007
Location: Omaha, NE
Posts: 1,882
Liked 29 Times on 29 Posts
Likes Given: 9

Default

Just want to clarify, will you still have a regulator on the tank running to your "secondary" regulators in the fridge? Or are you going to get a high pressure hose to run into the fridge straight from the tank?

camiller is offline

Reply With Quote Quick reply to this message
Old 07-30-2009, 02:58 PM   #4
Dagatris
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2008
Location: Nashville, TN
Posts: 124
Default

The regulator will stay attached directly to the tank. I want to run one line from the regulator into the fridge, then attach it to the distributor. The other line coming off of the regulator will remain outside, for keg cleaning purposes.

Anyone have mounting ideas that don't involve screwing into the fridge. I'd like to avoid drilling holes as much as possible. The more work I put into this fridge, the angrier I'll be if I hit a coolant line.

__________________
Primary: Strawberry Kiwi Wine
Wifes Secondary: Strawberry Wine
Kegged: Belgian Wit, Belgian Chocolate Stout
Drinking: Irish Stout, Ed's Apfelwein, Chocolate Stout, Holiday Spiced Ale, Irish Red Ale, Watermelon Wine
Dagatris is offline

Reply With Quote Quick reply to this message
Old 07-30-2009, 05:02 PM   #5
Suthrncomfrt1884
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2009
Location: Rockford, Illinois
Posts: 4,079
Liked 25 Times on 23 Posts
Likes Given: 3

Default

how heavy is it? Would some industrial velcro or double sided tape work? I've seem some tape that is insanely sticky.

__________________
He who drinks beer sleeps well. He who sleeps well cannot sin. He who does not sin goes to heaven.

Another HERMS rig...
Suthrncomfrt1884 is offline

Reply With Quote Quick reply to this message
Old 07-30-2009, 11:56 PM   #6
RogerMcAllen
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Location: Decatur, IL
Posts: 619
Liked 6 Times on 6 Posts

Default

Get some all weather foil tape. That stuff will work at any temp, and even if it gets a bit wet.

__________________
RogerMcAllen is offline

Reply With Quote Quick reply to this message
Old 07-31-2009, 02:37 PM   #7
tmoney1224
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: Wichita, KS
Posts: 251
Default

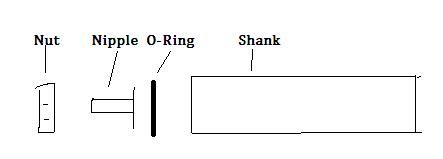

For your answer to number 2, here is a very technical drawing I did of the shank assembly:



Just put all together in that order and I put teflon tape on the shank to ensure a good seal as well.

Or you could go for the welded option and you wouldn't have to worry about the nut, nipple or O-ring. More beer has some:
Faucet Shank - 3'' With Nipple | MoreBeer

__________________
Standing Eight Brewing
Always up for another round

Primary 1: Milk Stout
Primary 2: Fizzy Yellow Beer
Primary 3: Boulevard Wheat with a twist
Planning: 1554 Clone
tmoney1224 is offline

Reply With Quote Quick reply to this message
Old 07-31-2009, 04:32 PM   #8
Dagatris
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2008
Location: Nashville, TN
Posts: 124
Default

Thanks for that, tmoney. I'm starting to get a better grasp on it now. As simple as your picture is, it did help quite a bit. There seem to be a lot of excess parts offered up on most sites.

From what I can figure, I'll be getting 4 of each of the following - faucet, shank, connection kit, liquid line, QD, air line, QD, and several hose clamps. Along with the 4 way distributor, I'm looking at $300 to finish out the kegerator!!

We'll see what SWMBO has to say about that.

__________________
Primary: Strawberry Kiwi Wine
Wifes Secondary: Strawberry Wine
Kegged: Belgian Wit, Belgian Chocolate Stout
Drinking: Irish Stout, Ed's Apfelwein, Chocolate Stout, Holiday Spiced Ale, Irish Red Ale, Watermelon Wine
Dagatris is offline

Reply With Quote Quick reply to this message
Old 07-31-2009, 05:19 PM   #9
tmoney1224
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: Wichita, KS
Posts: 251
Default

Quote:
Originally Posted by Dagatris View Post
Thanks for that, tmoney. I'm starting to get a better grasp on it now. As simple as your picture is, it did help quite a bit. There seem to be a lot of excess parts offered up on most sites.

From what I can figure, I'll be getting 4 of each of the following - faucet, shank, connection kit, liquid line, QD, air line, QD, and several hose clamps. Along with the 4 way distributor, I'm looking at $300 to finish out the kegerator!!

We'll see what SWMBO has to say about that.
Glad it helped, I remember when I was putting mine together and I couldn't get how it worked either. When I updated to my keezer I opted for the welded ones though.

Yeah it can get pretty expensive. Just a FYI, I think Austin Homebrew is having a sale on the Perlicks next Tuesday for around $23.95. Might be something to check out if you were going to get 4 of those.
__________________
Standing Eight Brewing
Always up for another round

Primary 1: Milk Stout
Primary 2: Fizzy Yellow Beer
Primary 3: Boulevard Wheat with a twist
Planning: 1554 Clone
tmoney1224 is offline

Reply With Quote Quick reply to this message
