Default Measuring black pipe for gas plumbing

Is there a standard length addition for fittings on gas pipe?

For example, I know the total length I need for my black pipe run, but don't know how much to subtract for the fittings.

If I could re-thread the pipe myself, it obviously wouldn't matter... but since I can't, I need to be able to buy the correct length to start.

Thanks for the help!

__________________
BrewNano - Exploring Nano-Breweries, One Interview At A Time

On Tap - The Tunguska Event, Cream Ale
On Tap - Devastated Sky, CDA
On Tap - Fallow Fields, Autumn Ale
On Tap - East Creek Sour Wheat, Sour Wheat Ale
Fermenting - Nothing :(
Apoxbrew is offline

Reply With Quote Quick reply to this message
Old 02-06-2012, 06:45 PM   #2
l3asturd
Feedback Score: 0 reviews

l3asturd's Avatar
Recipes

Join Date: Dec 2011
Location: Visalia, CA
Posts: 464
Liked 8 Times on 7 Posts
Likes Given: 2

Default

Quote:
Originally Posted by Apoxbrew View Post
Is there a standard length addition for fittings on gas pipe?

For example, I know the total length I need for my black pipe run, but don't know how much to subtract for the fittings.

If I could re-thread the pipe myself, it obviously wouldn't matter... but since I can't, I need to be able to buy the correct length to start.

Thanks for the help!
Not sure if this helps but when i did 3/4" black pipe I bought all my pieces at home depot. They have so many varying sizes it was like putting a puzzle together. But in the end I didn't have to cut or thread anything myself. I may have saved a couple bucks having odd sizes cut for a few scenarios though.

Oh and the most obvious benefit for me.....Home Depot is across the street.
__________________
l3asturd is offline

Reply With Quote Quick reply to this message
Old 02-06-2012, 06:49 PM   #3
Surly
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2011
Location: Prairie Farm, WI
Posts: 154
Liked 3 Times on 3 Posts
Likes Given: 2

Default

Quote:
Originally Posted by l3asturd View Post
Not sure if this helps but when i did 3/4" black pipe I bought all my pieces at home depot. They have so many varying sizes it was like putting a puzzle together. But in the end I didn't have to cut or thread anything myself. I may have saved a couple bucks having odd sizes cut for a few scenarios though.

Oh and the most obvious benefit for me.....Home Depot is across the street.
I think this is a great idea and good start. I would also talk to a HD staff person as well. I have found them very helpful.
__________________
Surly is offline

Reply With Quote Quick reply to this message
Old 02-06-2012, 06:55 PM   #4
BBL_Brewer
Feedback Score: 0 reviews

BBL_Brewer's Avatar
Recipes

Join Date: Feb 2011
Location: Kokomo, IN
Posts: 3,701
Liked 430 Times on 298 Posts
Likes Given: 323

Default

I don't know what standard lengths the fittings will add, plus it kind of depends on how far you run the pipe into the fitting. I would suggest buying the long runs that you know you need and then buy a small selection or shorter pipe pieces and an asortment of fittings you are likely to use. This way you can adapt the pipe run to fit into your arrangement without having to make fifty trips to the hardware store. Once the job is done, return the stuff you didn't use.

__________________
Slots Down Brewery
Stick with the plan....not the sparge.


Never Ending Liquid Yeast - How to Farm Yeast and Freeze it.

BBL_Brewer is offline

Reply With Quote Quick reply to this message
Old 02-06-2012, 07:38 PM   #5
huge1s
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2011
Location: Monument, CO
Posts: 238
Liked 7 Times on 7 Posts

Default

Before you do any gas plumbing... have you sized your system to make sure it can support what you are putting in?

Here is a chart if you haven't done this already

__________________
huge1s is offline
Hockeyman Likes This
Reply With Quote Quick reply to this message
Old 02-06-2012, 07:52 PM   #6
johnsma22
Feedback Score: 0 reviews

johnsma22's Avatar
Recipes

Join Date: Jun 2006
Location: Taunton, MA
Posts: 1,892
Liked 34 Times on 27 Posts

Default

Quote:
Originally Posted by Apoxbrew View Post
Is there a standard length addition for fittings on gas pipe?

For example, I know the total length I need for my black pipe run, but don't know how much to subtract for the fittings.

If I could re-thread the pipe myself, it obviously wouldn't matter... but since I can't, I need to be able to buy the correct length to start.

Thanks for the help!

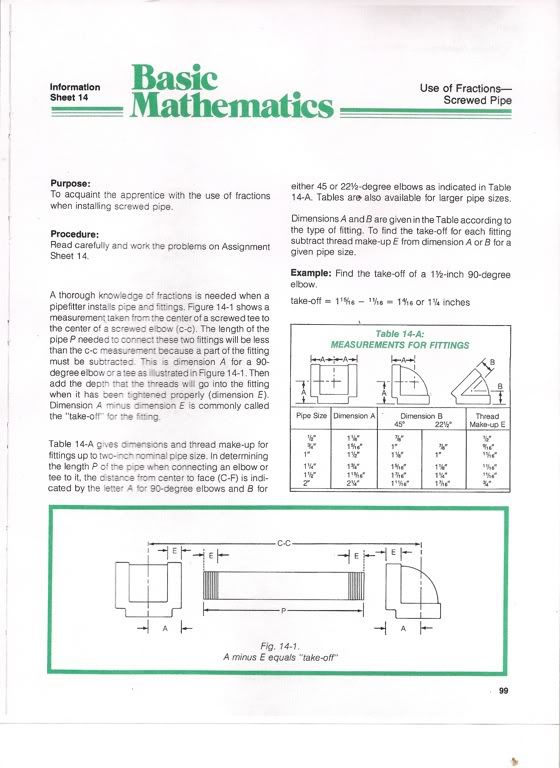

This should help. I made a scan from my pipefitter's text book that I got when I was an apprentice. It shows the appropriate take off measurements for screwed pipe fittings. The full page may not have the tables clear enough so I made a couple of detailed scans of the tables. These are image files, so you can right-click on them and save them to your computer for viewing.





__________________
Cheers,
John
johnsma22 is offline
bhambrew Likes This
Reply With Quote Quick reply to this message
Old 02-06-2012, 08:50 PM   #7
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 3 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 22,364
Liked 1112 Times on 738 Posts
Likes Given: 28

Default

Good info there. The way I handled it was to guess as close as possible, then go buy a ridiculous amount of various sizes so I could mock it all up in the garage. I returned all the excess undamaged parts.

You could also just measure and have them cut and thread the lengths.

__________________
BrewHardware.com has a new website. Please check it out and let me know what you think!
New 100% Stainless Steel Heating Elements are IN!
Chugger Pumps, Pump Kits, Camlocks, Sightglasses, Clear USA made Silicone Tubing, RIMS, Electric Install Parts, etc. Did you know we are also now a full service homebrew shop selling malt, hops, yeast (Wyeast), etc?
Bobby_M is offline

Reply With Quote Quick reply to this message
Old 02-06-2012, 09:02 PM   #8
Airplanedoc
Feedback Score: 1 reviews

Airplanedoc's Avatar
Recipes

Join Date: Sep 2011
Location: Illinois, Outside the peoples Republic of Madigan
Posts: 1,890
Liked 383 Times on 264 Posts
Likes Given: 117

Default

That table looks pretty handy, I figured they existed, just never saw one.

I have a "pocket Dictionary" size book full of aircraft related info, always wished I could find something similar for home use.
