Old 01-13-2011, 04:54 PM   #11
TheFlyingBeer
Feedback Score: 0 reviews
Recipes

Join Date: May 2007
Location: Catonsville, MD
Posts: 425
Liked 13 Times on 12 Posts
Likes Given: 3

Default

I was already going to have him put together some temperature probe tubes for me, might have to add this to the list. I would still plan on filling the void with a silicone sealant as I am not comfortable with the material used on the threads.

__________________

Primaries: Air
Secondaries: Lakefront India Brown Ale

On Tap 1: Rootbeer, On Tap 2: NB White ouse Honey Ale, On Tap 3: Nitrogen, On Tap 4: Air, On Tap 5: Air
On Deck: DIPA, Imp Stout, Porter, Wheat, Black IPA

"No sense having empty carboys around when full ones take up just as much space. " - Me
TheFlyingBeer is offline

Reply With Quote Quick reply to this message
Old 01-13-2011, 05:15 PM   #12
stevehaun
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2006
Location: hudson, wi
Posts: 558
Liked 11 Times on 11 Posts
Likes Given: 19

Default

Swagman:
That is slicker than snot! You can undo the triclamp, clean the element and then slap it back on without messing with the electrical connection. Did you weld a coupling into the ferrule? Is the box welded to the ferrule as well?

__________________
stevehaun is offline

Reply With Quote Quick reply to this message
Old 01-13-2011, 05:22 PM   #13
Swagman
Registered User
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2005
Location: WACK Kansas City Kansas, Kansas
Posts: 230
Liked 2 Times on 2 Posts

Default

Quote:
Originally Posted by stevehaun View Post
Swagman:
That is slicker than snot! You can undo the triclamp, clean the element and then slap it back on without messing with the electrical connection. Did you weld a coupling into the ferrule? Is the box welded to the ferrule as well?
Half coupling with the thread remove welds to tri and its tig into the keg. There two tabs welded to other half that bolt the box on that you can't see with a couple of 10-32's.
Here is a picture of the part Tig weld's into the keg its a half 1 inch coupler with a little lathe work


God Bless
Swagman
__________________
Swagman is offline

Reply With Quote Quick reply to this message
Old 01-14-2011, 03:23 AM   #14
WPStrassburg
Feedback Score: 2 reviews
Recipes

Join Date: Sep 2008
Location: Rochester, NY
Posts: 479
Liked 21 Times on 18 Posts
Likes Given: 1

Default

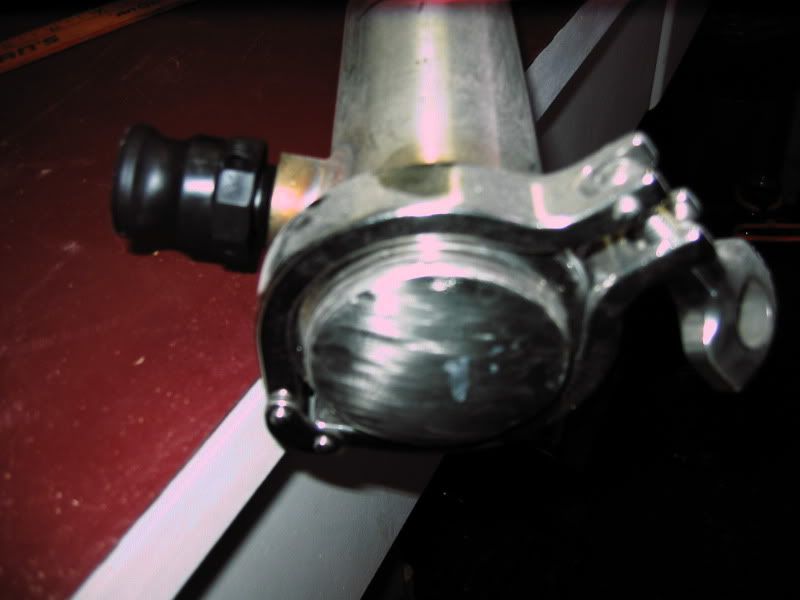

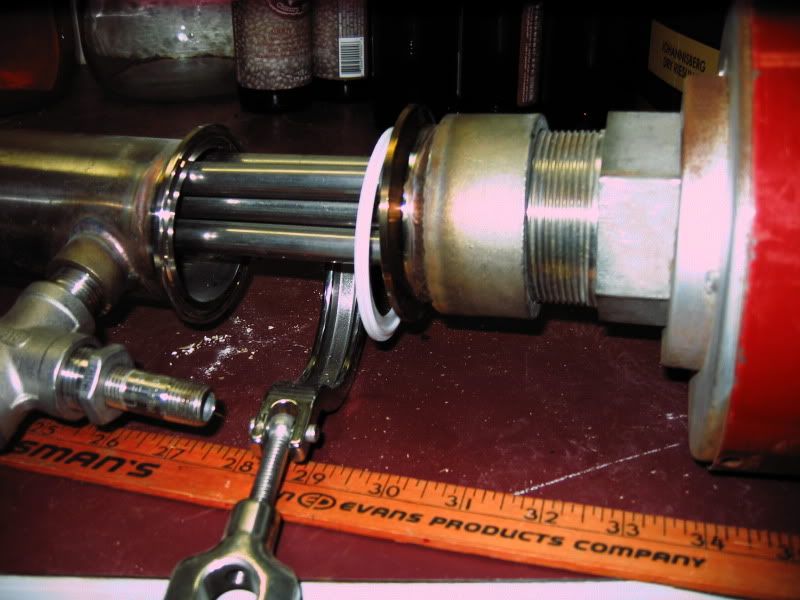

Here's how mine is done. My element was 2" mpt, so it mates up with the half coupling that is welded to the tc short ferrule. My capped end is made out of a ferrule and 20ga ss sheet, which for you could be easily drilled and a straight thread nut welded/soldered to.

http://www.homebrewtalk.com/f51/my-6...4/#post2549998



__________________
WPStrassburg is offline

Reply With Quote Quick reply to this message
Old 01-14-2011, 11:58 PM   #15
TheFlyingBeer
Feedback Score: 0 reviews
Recipes

Join Date: May 2007
Location: Catonsville, MD
Posts: 425
Liked 13 Times on 12 Posts
Likes Given: 3

Default

Quote:
Originally Posted by Swagman View Post
Here is a picture of the part Tig weld's into the keg its a half 1 inch coupler with a little lathe work
Nice work, but why not just purchase a triclamp short/med butt-weld ferrule instead of rolling your own?

Your method of attaching the electrical box has given me some ideas that I now have to sketch out...

In reality how often do elements require replaced? I would assume being in a HLT is easier on the element than the BK. Provided the element is cleaned after use I would think it should last a long enough time that the extra work to build up a replacement is not a big issue.

Quote:
Originally Posted by WPStrassburg View Post
I like it! Quite the industrial RIMS tube you have there.

Here are the pictures of my failed attempt to gracefully deconstruct a 2500W element. It was at least fun and I learned some things! The hacksaw won in the end.

__________________

Primaries: Air
Secondaries: Lakefront India Brown Ale

On Tap 1: Rootbeer, On Tap 2: NB White ouse Honey Ale, On Tap 3: Nitrogen, On Tap 4: Air, On Tap 5: Air
On Deck: DIPA, Imp Stout, Porter, Wheat, Black IPA

"No sense having empty carboys around when full ones take up just as much space. " - Me
TheFlyingBeer is offline

Reply With Quote Quick reply to this message
Old 01-15-2011, 12:09 AM   #16
Swagman
Registered User
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2005
Location: WACK Kansas City Kansas, Kansas
Posts: 230
Liked 2 Times on 2 Posts

Default

why not just purchase a triclamp short/med butt-weld ferrule instead of rolling your own?


Two reasons cost and the gauge of the metal.



God Bless
Swagman

__________________
Swagman is offline

Reply With Quote Quick reply to this message
Old 01-15-2011, 12:55 AM   #17
TheFlyingBeer
Feedback Score: 0 reviews
Recipes

Join Date: May 2007
Location: Catonsville, MD
Posts: 425
Liked 13 Times on 12 Posts
Likes Given: 3

Default

Question: How would one go about making a 1" hole in the 1-1/2" triclamp cap? They are 1/4" thick and 316SS. I might have access to a drill press at best, hand held power drill at worst. Is a step bit going to cut it?

__________________

Primaries: Air
Secondaries: Lakefront India Brown Ale

On Tap 1: Rootbeer, On Tap 2: NB White ouse Honey Ale, On Tap 3: Nitrogen, On Tap 4: Air, On Tap 5: Air
On Deck: DIPA, Imp Stout, Porter, Wheat, Black IPA

"No sense having empty carboys around when full ones take up just as much space. " - Me
TheFlyingBeer is offline

Reply With Quote Quick reply to this message
Old 01-15-2011, 01:09 AM   #18
Swagman
Registered User
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2005
Location: WACK Kansas City Kansas, Kansas
Posts: 230
Liked 2 Times on 2 Posts

Default

Quote:
Originally Posted by TheFlyingBeer View Post
Question: How would one go about making a 1" hole in the 1-1/2" triclamp cap? They are 1/4" think and 316SS. I might have access to a drill press at best, hand held power drill at worst. Is a step bit going to cut it?
That's going to be a little hard to do. I turn them on a lathe. The half coupler is turned down for a length of .200 and 1.500 diameter that's the end that will weld into the keg. The 1.500 measurement lets you drill the hole in the keg with a 1 1/2 hole saw. The other in is turned down to about 1.350 and the cap is turned out with boring bar to that measurement. That's about the max. on the cap. Also the threads inside the coupler are remove with a boring bar. The coupler is Tig welded inside the cap and also outside.

Hope this helps

God Bless
Swagman
__________________
Swagman is offline

Reply With Quote Quick reply to this message
Old 01-15-2011, 01:17 AM   #19
TheFlyingBeer
Feedback Score: 0 reviews
Recipes

Join Date: May 2007
Location: Catonsville, MD
Posts: 425
Liked 13 Times on 12 Posts
Likes Given: 3

Default

Might have to talk the guys in our machine shop into trading some homebrew for lathe work... If I could only get my hands on their 3D milling machines I would be set for this project.

__________________

Primaries: Air
Secondaries: Lakefront India Brown Ale

On Tap 1: Rootbeer, On Tap 2: NB White ouse Honey Ale, On Tap 3: Nitrogen, On Tap 4: Air, On Tap 5: Air
On Deck: DIPA, Imp Stout, Porter, Wheat, Black IPA

"No sense having empty carboys around when full ones take up just as much space. " - Me
TheFlyingBeer is offline

Reply With Quote Quick reply to this message
Old 01-19-2011, 12:39 PM   #20
DeeDub76
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Northwest, Missouri
Posts: 80
Liked 1 Times on 1 Posts

Default

Mine is very similar to Swagmans.
