Default Tips and Tricks for a tidy and safe control box?

So I wired up my control box yesterday for my RIMS/Pump setup. I used a ton of Scotchlock connectors:


BOY is it ugly! Strained wires, a big rats nest of crap. With so many connections being strained when I close it up, it can't really be safe. I know sooner or later a wire will slip off a terminal and short the damn thing out.

SO, how do I do this correctly? Here's my schematic:

(Note: each switch has a neutral lead because they are illuminated)

I am thinking perhaps a terminal strip for all the common connections, and a few more strips for the hot side junctions?

  • How do you wire those up for junctions, like this?

  • Is there a better way to do junctions?
  • Are there any tips or tricks to routing wiring so that it isn't one big rats nest?

Thanks!

(Post script, at least it all worked when I put it together...after I figured out that I had hot/neutral reversed, (seriously, WHY is black hot? WHITE should be hot!), and I only got shocked ONCE! (note to self, even if you turn off the master power switch, don't open it up until you unplug the damn thing!))
__________________
Itchy Dog Brewery.

(As of 10-24-2011)
Primary - Steppe 112 PA, 2x Monday RyePA
Aging - None :-(
On tap - Big Dog, Apfelwein, Steppe 112 PA

My invisible AG sculpture, with no actual sculpture and a tiny footprint.
My Kegerator goes offroading!
My Coors Home Draft dispenser for boating/beering on the go.
shortyjacobs is offline

Reply With Quote Quick reply to this message
Old 06-21-2011, 04:22 PM   #2
samc
Feedback Score: 1 reviews
Recipes

Join Date: Aug 2008
Location: Portland OR
Posts: 5,420
Liked 54 Times on 51 Posts
Likes Given: 29

Default

A Bus Bar or similar allows for an easier wiring job. No jumpers needed. If you use the terminal junctions then look for ones that have pre-made jumpers, makes it neater than pigtails.

I of course did none of that as I already had the parts, but I wish I had followed my own advice.

__________________
samc is offline

Reply With Quote Quick reply to this message
Old 06-21-2011, 10:04 PM   #3
Maxkling
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2010
Location: Atlanta, Georgia
Posts: 506
Liked 22 Times on 9 Posts

Default

Key factors for any wiring job which are also somewhat money saving techiques.

#1. Wire type and size. Use stranded copper for areas where multiple flexes occur. Solid copper can be neat and tidy when used to snake around. Also use the smallest possible wire size that is safe, this can be done if fuses and breakers are used properly. EX. you do not need 12ga wire going to your PID's or other low amp draw items, like coils for relays and contactors. Keep colors uniform, red and black for hots, white for neutral, green or bare for ground, and blue for DC. This will help you so much in the long run.

#2. Bus Bars. Again sized correctly for load, a bus bar for your control circuit doesn't need to be large and take up a lot of space. I use DINN mounted items for cleanliness (breakers, fuse blocks, relays, bus bars, wire connectors).

#3. Isolation. Keep large gauge wires and high amp draw items away from small and low amp draw items.

#4. Wire loom. Use nice and neat wire loom, I prefer braided, and not spiral or solid loom.

#5. Item Placement. I usually try to keep all common items together. Like you dont want relays placed all around your box, make a row of all relays, all breakers, etc...

Also use zip ties where you feel necessary and cut wire lengths to proper lengths.

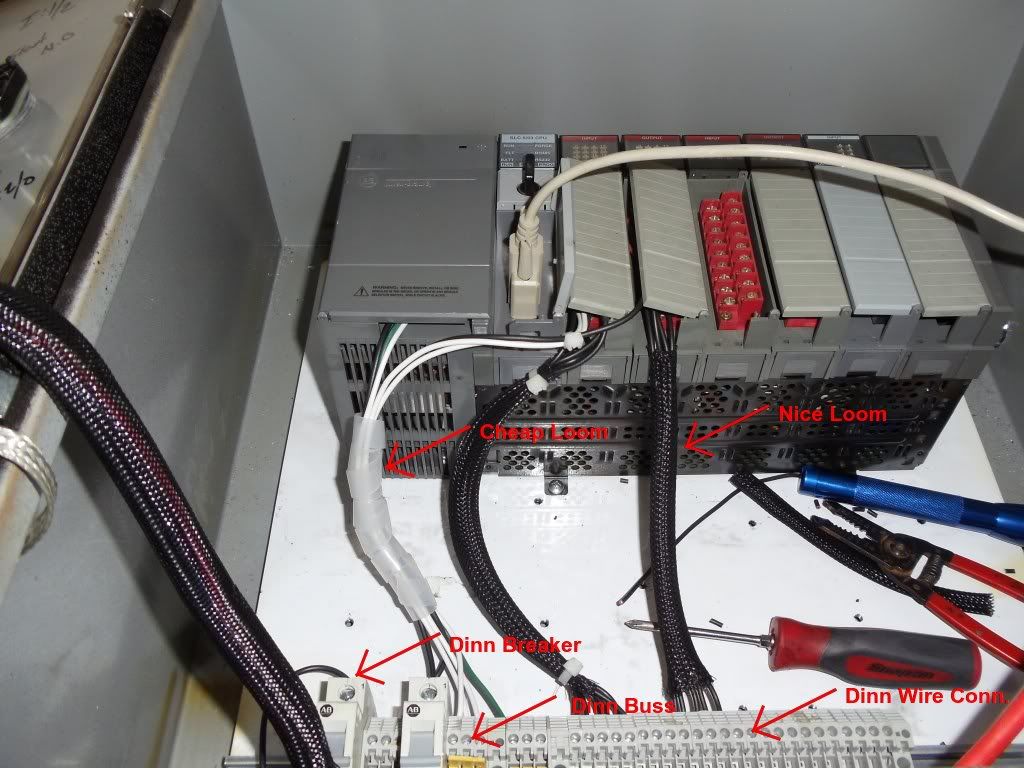

Here is a picture of my panel as I was wiring it.
