Quote:
Originally Posted by kgalle
I can just see all the panicky valve turning.
Yeah, like the ooppps I forgot to close the kettle valve while filling up. It takes 6 minutes of turning to shut it off. That's hilarious .
__________________
mux is offline

Reply With Quote Quick reply to this message
Old 04-25-2012, 05:32 PM   #32
BeerguyNC61
Senior Member
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2012
Location: Annapolis, MD
Posts: 541
Liked 65 Times on 49 Posts
Likes Given: 10

Default

Not to mention how hot that valve will be getting!

__________________
BeerguyNC61 is offline

Reply With Quote Quick reply to this message
Old 04-25-2012, 09:05 PM   #33
Brickout
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Lockport, IL
Posts: 268
Liked 21 Times on 10 Posts

Default

Maybe convert a ball valve to look like a gate valve. Just swap out the handles.

__________________
Brickout is offline

Reply With Quote Quick reply to this message
Old 04-25-2012, 09:37 PM   #34
mux
Feedback Score: 3 reviews
Recipes

Join Date: Sep 2011
Location: Chicago, IL - Illinois
Posts: 1,878
Liked 67 Times on 55 Posts
Likes Given: 23

Default

Quote:
Originally Posted by Brickout
Maybe convert a ball valve to look like a gate valve. Just swap out the handles.
Yeah! There you go problem solved.
__________________
mux is offline

Reply With Quote Quick reply to this message
Old 05-01-2012, 09:41 PM   #35
Brickout
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Lockport, IL
Posts: 268
Liked 21 Times on 10 Posts

Default

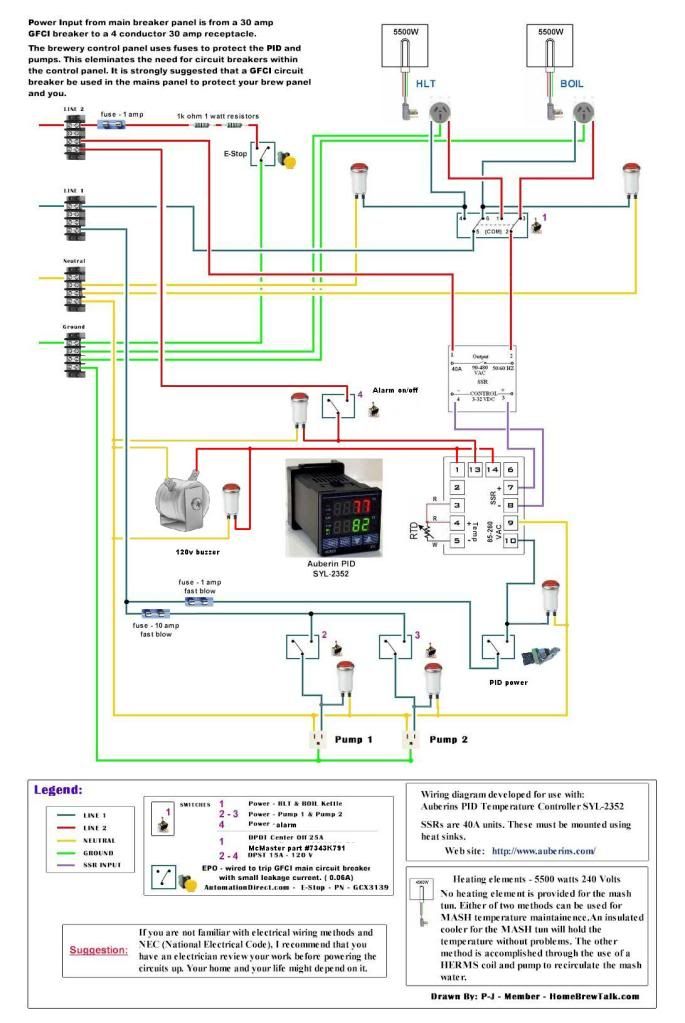

I've made some changes to my wring diagram.



My first question; Do I have all the necessary fuses with the correct amp amounts?

Second; For switch #1, the DPDT for the HLT and BK, I was planning on using McMaster model #7343K791. And for the rest of the switches I plan on using McMaster model #7343K711. I these O K to use?

__________________
Brickout is offline

Reply With Quote Quick reply to this message
Old 05-02-2012, 12:24 AM   #36
P-J
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Charlotte, NC
Posts: 3,283
Liked 259 Times on 207 Posts
Likes Given: 454

Default

Your Switch 1 (#7343K791) is rated for 15A-120V. The 5500W element draws 23A.

The one I placed in the diagram has a higher amp rating.
http://www.grainger.com/Grainger/NKK...e-Switch-2TPF8

__________________
P-J is offline

Reply With Quote Quick reply to this message
Old 05-02-2012, 02:34 PM   #37
Brickout
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Lockport, IL
Posts: 268
Liked 21 Times on 10 Posts

Default

P-J, thanks for catching that.

Looking at the spec's on that switch is listed at, "Contact Rating @ 250V (Amps) - 15".
This is O K to use? Not that I'm questioning you. I just want to make sure I'm getting the correct switch.

__________________
Brickout is offline

Reply With Quote Quick reply to this message
Old 05-02-2012, 11:51 PM   #38
P-J
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Charlotte, NC
Posts: 3,283
Liked 259 Times on 207 Posts
Likes Given: 454

Default

Those switches are fine for our application as the voltage measured to ground from any point is 120V. Both 120V phases are open whenever the switch is off and therefore the voltage across the switch points when off would still not be 240V (Zero in fact). It is more than capable of carring the current needed (25A).

Hope this makes sense & helps.

__________________
P-J is offline

Reply With Quote Quick reply to this message
Old 05-03-2012, 12:28 AM   #39
Brickout
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Lockport, IL
Posts: 268
Liked 21 Times on 10 Posts

Default

Ah, yes. I get it now.

Thanks.
