Need some advice on this electrical diagram
|
|
Guys,

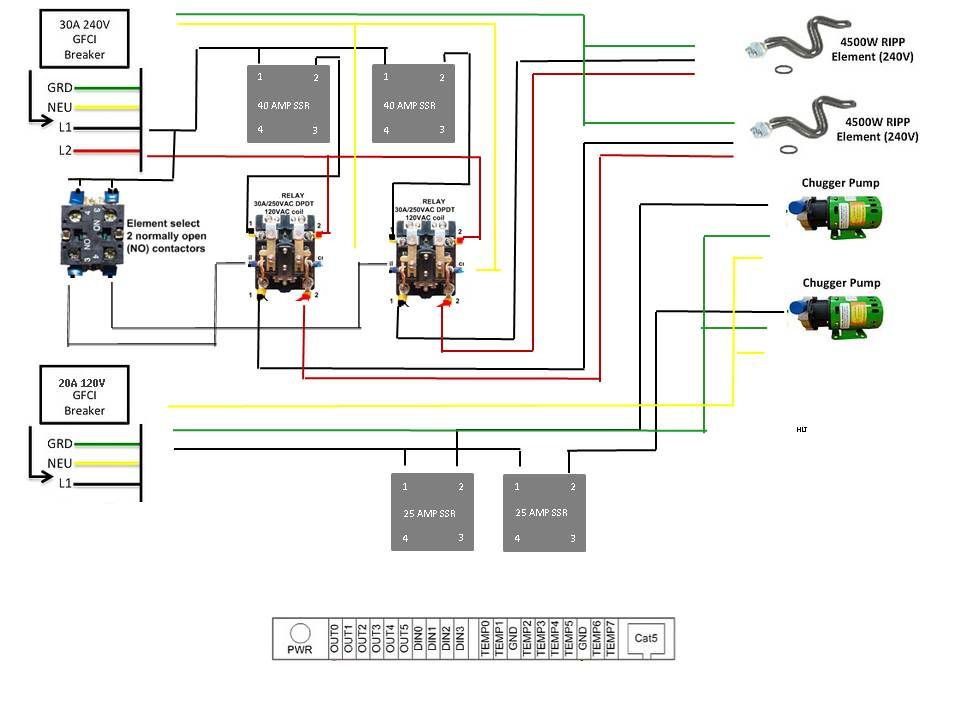

Need some input if this diagram looks correct. I only want to run one element at a time and be able to switch between them with a 3 position switch. The system will be controlled with a BCS460 that I've been using for about a year now. The part I'm getting confused on is the mechanical relays and the 3 position switch. Thanks for any input!
|
|
|
|
01-22-2011, 02:15 AM
|
#2
|
|
Feedback Score: 0 reviews
Join Date: Feb 2008
Location: Port Murray, NJ
Posts: 2,382
Liked 35 Times on 32 Posts
Likes Given: 8
|
The only change I might make is to wire the SSRs behind the relays, that way the SSRs are also cold when the switch is off for that leg.
Functionally, it doesn't make a difference. I just would rather not have it actually switching voltage when that leg isn't turned on.
-Joe
|
|
|
|
|
01-22-2011, 02:17 AM
|
#3
|
|
Feedback Score: 0 reviews
Join Date: Feb 2008
Location: Port Murray, NJ
Posts: 2,382
Liked 35 Times on 32 Posts
Likes Given: 8
|
Also out of curiosity, why are you using SSRs for the pumps? Are you controlling them with a BCS or something?
Here is 1/2 of my system's wiring just to illustrate what I was saying about the SSRs behind the relay (which I called a contactor here).
-Joe |
|
|
|
|
01-22-2011, 02:24 AM
|
#4
|
|
Feedback Score: 0 reviews
Join Date: Dec 2009
Location: Shepherdtown, WV
Posts: 78
Liked 3 Times on 3 Posts
|
The pumps will be controlled by the BCS. I'll try to draw up another diagram with your suggestion.
|
|
|
|
|
01-22-2011, 02:24 AM
|
#5
|
|
Feedback Score: 0 reviews
Join Date: Oct 2009
Location: CT
Posts: 78
|
I would also suggest to put the SSRs behind the relays. Any reason why you're running a second breaker for your 110V stuff as opposed to just taking one of your legs from the 220V breaker and wiring that through to your pumps?
I'm doing something similar to you. Here's my schematic:
__________________
Swamp Yankee Brewery
On deck: Black Bear Honey Porter
Primary: Empty
Secondary: Empty
Keg 1: Empty :(
Keg 2: Grandpa's IPA
|
|
|
|
|
01-22-2011, 02:52 AM
|
#6
|
|
Feedback Score: 0 reviews
Join Date: Dec 2009
Location: Shepherdtown, WV
Posts: 78
Liked 3 Times on 3 Posts
|
Alright so I think I'm confusing myself here. So when you guys are talking about putting the SSR's behind the relays, are you talking about moving leg 2 from the 240 and moving it to the SSR and then to the mechanical relay?
|
|
|
|
|
01-22-2011, 03:00 AM
|
#7
|
|
Feedback Score: 0 reviews
Join Date: Oct 2009
Location: CT
Posts: 78
|
I just realized my schematic doesn't show the contactor where nostalgia and I are suggesting.
I'll redraw my schematic in the morning to show it the right way.
__________________
Swamp Yankee Brewery
On deck: Black Bear Honey Porter
Primary: Empty
Secondary: Empty
Keg 1: Empty :(
Keg 2: Grandpa's IPA
|
|
|
|
|
01-22-2011, 03:02 AM
|
#8
|
|
Feedback Score: 0 reviews
Join Date: Feb 2008
Location: Port Murray, NJ
Posts: 2,382
Liked 35 Times on 32 Posts
Likes Given: 8
|
Mine does show it though - imagine my contactor is your relay. See how the black lead going to the SSR is switched by the relay? That means when your 3-way switch shuts off the contactor, there will be no power to the SSR.
-Joe
|
|
|
|
|
01-22-2011, 03:03 AM
|
#9
|
|
Feedback Score: 0 reviews
Join Date: Dec 2009
Location: Shepherdtown, WV
Posts: 78
Liked 3 Times on 3 Posts
|
I think I may understand. Basically i need to go from the breaker to the mechanical relay, then to the SSR, then to the element
|
|
|
|
|
01-22-2011, 03:04 AM
|
#10
|
|
Feedback Score: 0 reviews
Join Date: Oct 2009
Location: CT
Posts: 78
|
Correct.
__________________
Swamp Yankee Brewery
On deck: Black Bear Honey Porter
Primary: Empty
Secondary: Empty
Keg 1: Empty :(
Keg 2: Grandpa's IPA
|
|
|
|
