Old 07-10-2011, 02:24 AM   #11
dedhedjed
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Atlanta, Georgia
Posts: 345
Liked 11 Times on 8 Posts
Likes Given: 4

Default

Quote:
Originally Posted by Dgonza9 View Post

Anyway, I'm going to work on a detailed guide for anyone attempting this with a similar level of expertise to mine. I'm an English teacher so a number of things became obstacles to get around. Although most of what I needed to know was in the PID manual, I didn't really read it all because so much of it was over my head. Hysteresis band, etc. Wound up skipping the part that told me the default thermocouple settings.

Anyway, I'm looking forward to inaugurating this puppy this weekend. And, humiliating as it will be, writing a detailed step by step for us non engineering types.

Cheers guys!
Please do...I am also an English teacher with a brewing problem...and a lack of electrical know-how problem...
__________________

Homebrew shirts, stickers, mugs, etc.
http://www.zazzle.com/mightbemary*

dedhedjed is offline

Reply With Quote Quick reply to this message
Old 10-15-2012, 08:58 PM   #12
W0rter
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2012
Posts: 26
Default

Quote:
Anyway, I'm going to work on a detailed guide for anyone attempting this with a similar level of expertise to mine. I'm an English teacher so a number of things became obstacles to get around. Although most of what I needed to know was in the PID manual, I didn't really read it all because so much of it was over my head. Hysteresis band, etc. Wound up skipping the part that told me the default thermocouple settings.
Just wondering if you ever got that tutorial done?
I read you thought the switches were high and was wondering if these would work. SP ST
Also wondered if that was three switches you had in your box and what the purpose of each was?
Also wondered if these Sockets would work and be easier to mount in the project box?
Thanks for any help you may provide!
__________________
W0rter is offline

Reply With Quote Quick reply to this message
Old 10-16-2012, 04:55 PM   #13
Yambor44
Feedback Score: 0 reviews

Yambor44's Avatar
Recipes

Join Date: Nov 2008
Location: Ocala Florida
Posts: 1,953
Liked 43 Times on 28 Posts
Likes Given: 6

Default

Quote:
Originally Posted by W0rter View Post
Just wondering if you ever got that tutorial done?
I read you thought the switches were high and was wondering if these would work. SP ST
Also wondered if that was three switches you had in your box and what the purpose of each was?
Also wondered if these Sockets would work and be easier to mount in the project box?
Thanks for any help you may provide!
I would be interested also. I just placed my order for the same project box and PID from Aubern for a single element BK build.

I plan on converting my 15 gallon kettle to an electric vessel that will heat strike, sparge and also boil. I will use my 10 gallon MT cooler and another cooler to hold the sparge water while transferring back into the BK.

Just need a simple step by step on rigging my box. Since I am only using one element, I will just use a simple E-stop for my power on and off, the PID and the RTD.

Thanks.
__________________
Yambor44 is offline

Reply With Quote Quick reply to this message
Old 10-17-2012, 04:11 AM   #14
Dgonza9
Feedback Score: 0 reviews
Recipes

Join Date: May 2010
Location: Evanston, Illinois
Posts: 1,183
Liked 10 Times on 10 Posts

Default

I'm sorry, but I never got the tutorial done. I wound up graduating from this....

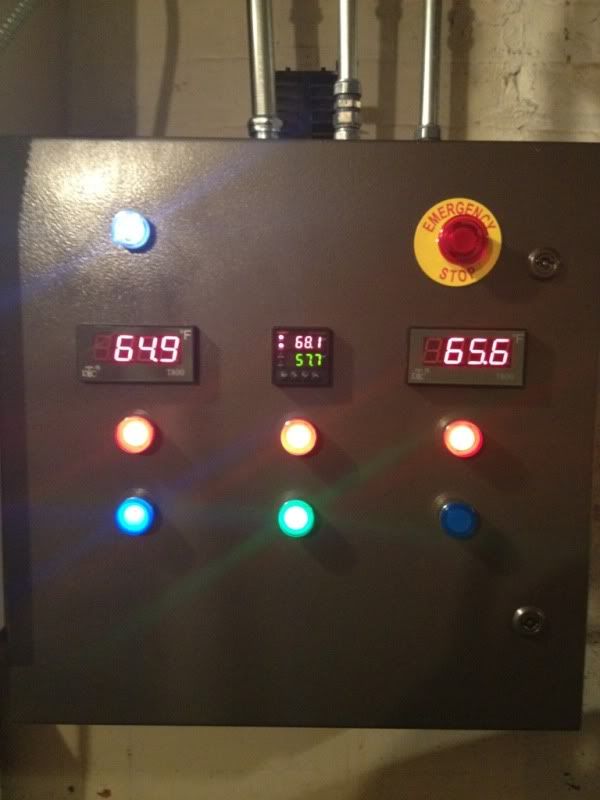

to this...



I might be able to help, though. I take it by your batch size and single element you are using 220V. Is the PID used with a RIMS or do you just want to dial down the boil? Is your brew area already set with a 220V, gfci protected outlet? Give us a bit more info.

I bought my switches from automationdirect.com, but they are functionally the same as the ones you posted. Like mine, the ones you posted have a 10 amp limit. So I only used them to power on the PID, the pump, and the exhaust fan.

If you aren't using a RIMS tube, another simple way to go is to size your element for your batches. I think about 4000W is about perfect for 10 gallon batches. If you'd like digital temperature readings, you can get a digital temp display like I have. Pretty cheap. I want to say less than $20 shipped, but they take a few weeks on the slow boat from china. You can replace the PID and SSR with a contactor. It'd be a lot easier and cheaper. Plus, those boxes are pretty small. It got crowded fast with the receptacles, PID, SSR, heat sink, etc.

I guess the most helpful thing I can say is to think through what you ultimately want now. I know I found that I wanted a separate HLT at some point. More so, that I wanted a bottom drain BK with a dump valve for easy clean in place. One I added another powered vessel I had more switches. Since I was using 120V at the time I had two elements in each keggle. I was flipping switches like a banshee, hence the updated control panel

At the time I made the box I felt that it was at my limit of what I could realistically do. Having done it, it became more feasible to upgrade to a panel. You may find the same thing. The box was a very good learning experience and if that's all you want, so be it. But think it through a bit. Ultimately, the panel was not much different, just more switches and the use of contactors and some fuses.

I personally found that I never liked mounting receptacles in a panel, nor do I like hanging wires. So I wound up running the power to my panel using conduit. Of course, for a portable box this isn't optimal.

Kal's tutorial pretty much covers it all. But let me know if I can help. After all the advice I received it's the least I can do.

__________________
On Tap: Belgian Barrel Aged Barleywine, Da Yooper's Oatmeal Stout, Breakfast Stout, Hop Your Face Off IIPA, Catcher in the Rye Saison, "Wino-head" Nelsin Sauvin Gumballhead.

Bourbon Barrel Duchesse De Bourgnone
Kegged:

Fermenting English Mild

on Deck: Lager?
Dgonza9 is offline

Reply With Quote Quick reply to this message
Old 10-17-2012, 06:12 PM   #15
W0rter
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2012
Posts: 26
Default

Quote:
Originally Posted by Dgonza9 View Post

I bought my switches from automationdirect.com, but they are functionally the same as the ones you posted. Like mine, the ones you posted have a 10 amp limit. So I only used them to power on the PID, the pump, and the exhaust fan.

If you aren't using a RIMS tube, another simple way to go is to size your element for your batches. I think about 4000W is about perfect for 10 gallon batches. If you'd like digital temperature readings, you can get a digital temp display like I have. Pretty cheap. I want to say less than $20 shipped, but they take a few weeks on the slow boat from china. You can replace the PID and SSR with a contactor. It'd be a lot easier and cheaper. Plus, those boxes are pretty small. It got crowded fast with the receptacles, PID, SSR, heat sink, etc.

I guess the most helpful thing I can say is to think through what you ultimately want now. I know I found that I wanted a separate HLT at some point. More so, that I wanted a bottom drain BK with a dump valve for easy clean in place. One I added another powered vessel I had more switches. Since I was using 120V at the time I had two elements in each keggle. I was flipping switches like a banshee, hence the updated control panel

At the time I made the box I felt that it was at my limit of what I could realistically do. Having done it, it became more feasible to upgrade to a panel. You may find the same thing. The box was a very good learning experience and if that's all you want, so be it. But think it through a bit. Ultimately, the panel was not much different, just more switches and the use of contactors and some fuses.

I personally found that I never liked mounting receptacles in a panel, nor do I like hanging wires. So I wound up running the power to my panel using conduit. Of course, for a portable box this isn't optimal.

Kal's tutorial pretty much covers it all. But let me know if I can help. After all the advice I received it's the least I can do.
Thanks Dgonza9
I'm a newbie Brewer and I'm not sure how far I'm going to go in this hobby. I don't have any limits yet but they may happen as I usually take everything to the Nth Degree and the retirement funds can get limited. My garage is a full blown wood shop and as such it has 2 separate 120v 20A circuit lines and two separate 240v circuits a 20A and a 30A. So far I've sprung for a SS Stout Tanks Short" 7.3 Gallon Conical Fermenter with Thermowell. I don't figure I'll ever need to brew 10 gal batches. I just built a 10 gal Rubbermaid MLT and fly sparge setup from Midwest my brew kettle is a 9 gal SS.

You're absolutely correct and this is my biggest concern "Direction". I want to build the RIMS tube and have so far procured the tube from here also have two elements from Plumbers Supply 120v 1500w LD and a large supply of Cam Lock fittings from Brewers Hardware. And my 815PL pump will be here tomorrow.

I've always been a jack of all trades and a master of none. I research until I'm satisfied I'm competent. I once about 25 years ago was in college for an electrical engineer degree but had to relocate for a job and never finished. But I've got plenty of friends to check my work.
So for now I'm planning a simple RIMS Tube to help my mash temps. several of my questions include do you still mash at a rate of 1.1 qt per pound of grain. and then fly sparge from a HLT to get wort volume. does it hurt to circulate the mash continuously for 60 min mashing? then go into sparging? or do you mash with enough volume to meet the wort goal volume? (which would be thin) this question has been sticking in the back of my head. I need to go read more on the Contactors. What service do they provide to the element and switching. what Contactor would I need This or This one?
BTW went to Kal's Tutorial, really cool lots of info. Need to sort through that and conclude my direction.

Thanks for your help
Clare
__________________
W0rter is offline

Reply With Quote Quick reply to this message
Old 10-18-2012, 12:29 AM   #16
Dgonza9
Feedback Score: 0 reviews
Recipes

Join Date: May 2010
Location: Evanston, Illinois
Posts: 1,183
Liked 10 Times on 10 Posts

Default

Quote:
Originally Posted by W0rter View Post
Thanks Dgonza9
I'm a newbie Brewer and I'm not sure how far I'm going to go in this hobby. I don't have any limits yet but they may happen as I usually take everything to the Nth Degree and the retirement funds can get limited. My garage is a full blown wood shop and as such it has 2 separate 120v 20A circuit lines and two separate 240v circuits a 20A and a 30A. So far I've sprung for a SS Stout Tanks Short" 7.3 Gallon Conical Fermenter with Thermowell. I don't figure I'll ever need to brew 10 gal batches. I just built a 10 gal Rubbermaid MLT and fly sparge setup from Midwest my brew kettle is a 9 gal SS.

You're absolutely correct and this is my biggest concern "Direction". I want to build the RIMS tube and have so far procured the tube from here also have two elements from Plumbers Supply 120v 1500w LD and a large supply of Cam Lock fittings from Brewers Hardware. And my 815PL pump will be here tomorrow.

I've always been a jack of all trades and a master of none. I research until I'm satisfied I'm competent. I once about 25 years ago was in college for an electrical engineer degree but had to relocate for a job and never finished. But I've got plenty of friends to check my work.
So for now I'm planning a simple RIMS Tube to help my mash temps. several of my questions include do you still mash at a rate of 1.1 qt per pound of grain. and then fly sparge from a HLT to get wort volume. does it hurt to circulate the mash continuously for 60 min mashing? then go into sparging? or do you mash with enough volume to meet the wort goal volume? (which would be thin) this question has been sticking in the back of my head. I need to go read more on the Contactors. What service do they provide to the element and switching. what Contactor would I need This or This one?
BTW went to Kal's Tutorial, really cool lots of info. Need to sort through that and conclude my direction.

Thanks for your help
Clare
You could do a Brutus 20 style system. I did this for over a year and I thought I made many terrific beers this way. You mash using the the typical 1.25qt/lb ratio, then recirculate with your sparge water. You never drain the mash tun of its first runnings. You just recirculate for about 40 minutes putting all of the water "in play" until the HLT and mash tun essentially achieve equilibrium. It's not as efficient batch sparging, but it works fine. I regularly got 70% that way.

As for the Rims tube, it's fun to have. You would generally mash in with the typical water volume, then recirculate through the RIMS tube and the PID will use the element in the tube to maintain whatever mash temp you set. You can recirculate cleaning fluids through the tube after brewing, but I found that the element was not effectively cleaned this way. You may consider a tri-clamp fitting for the element. Brewershardware makes a very nice one.

You'll need a separate switch for the boil kettle and HLT elements. The simplest thing to do is to plug in your elements to switchable outlets, then just turn them on and off as needed.



As for the contactors, they are just mechanical relays that use a magnetic coil to close a switch. You can use the illuminated, 10 amp switches to signal the coil to close. Thus, you can now switch the higher amp lines using a cheap, cool illuminated switch.

Of course, you'll need another switch for the pump. And if you are using an exhaust fan, another switch for that. So you're already started to add up a fair amount of switches. Not a problem, but it could get cumbersome.

If you're only doing 5 gallon batches, 2000W will be about perfect for a nice boil. So if you mount a 2000W element in your BK, no temperature regulation is needed. Of course, you may want some dial thermometers to read the temp in the HLT. Or else use a floating thermometer or other kind of portable temp probe. I found the dial thermometers to be sticky and got tired of bending down to see them so I moved to a digital temp reader.

I can't think of much else to consider. If you don't have a particularly large vision, go with the box. If you do decide to upgrade you'll be able to cannibalize just about everything from the box.

Cheers!
__________________
On Tap: Belgian Barrel Aged Barleywine, Da Yooper's Oatmeal Stout, Breakfast Stout, Hop Your Face Off IIPA, Catcher in the Rye Saison, "Wino-head" Nelsin Sauvin Gumballhead.

Bourbon Barrel Duchesse De Bourgnone
Kegged:

Fermenting English Mild

on Deck: Lager?
Dgonza9 is offline

Reply With Quote Quick reply to this message
Old 11-08-2012, 05:38 PM   #17
W0rter
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2012
Posts: 26
Default

Thanks Dgonza9, I've been acquiring parts hence the delay getting back. I've decided to keep it simple for now and if the vision expands I can cannibalize as you suggest. So for now I'll just be building the RIMS tube to control my MASH temps. Got a question about the terminal blocks. I bought two 8 circuit TB's from Menards. I know I've got a lot of wiring to still layout but I'm just trying to go as fast as my knowledge base goes. Is this the proper way to feed power to my devices?
Don't worry I'm not ready to slap stuff together and send power to anything until I'm going in the right direction.
Thanks for helping an old noob.

__________________
W0rter is offline

Reply With Quote Quick reply to this message
Old 11-08-2012, 11:56 PM   #18
Garyr2973
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: Louisville,KY
Posts: 184
Liked 16 Times on 12 Posts

Default

Yep that's how you wire the terminal block (you don't need that last jumper since you have nothing to attach it to.

__________________
Garyr2973 is offline

Reply With Quote Quick reply to this message
Old 11-09-2012, 01:34 AM   #19
BadNewsBrewery
Basement Brewer
Feedback Score: 0 reviews

BadNewsBrewery's Avatar
Recipes

Join Date: Oct 2012
Location: Severn, MD
Posts: 1,136
Liked 115 Times on 94 Posts
Likes Given: 53

Default

One big issue - you want power to the element to come from the SSR / contactor, not from the terminal block. If you run it from the TB you have no control and it runs 100% duty cycle. I'd suggest running TB --> SSR --> CONTACTOR --> ELEMENT

__________________
Building a Bad News Brewery - eHERMS

2014:
5gal Scottish Wee Heavy
5gal Saison
15gal American Pale Ale
20gal Belgian Wit
10gal Oktoberfest
10gal Southern Pecan Ale

Keg 1: Apfelwein
Keg 2: Oktoberfest
Keg 3: American Pale Ale
Fermenting: Southern Pecan
On Deck: Winter Spice Ale
BadNewsBrewery is offline

Reply With Quote Quick reply to this message
Old 11-09-2012, 03:00 PM   #20
W0rter
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2012
Posts: 26
Default

Thanks BadNewsBrewery and Garyr2973. Ya i simply threw some items on there to illustrate my train of thought of using the right side as all common going to various items. Believe me when I get close i'll present it for review.
Thanks again!

__________________
W0rter is offline

Reply With Quote Quick reply to this message
