Old 11-26-2011, 02:11 PM   #21
lorglath
Feedback Score: 1 reviews

lorglath's Avatar
Recipes

Join Date: Sep 2011
Location: Minneapolis, MINNESOTA
Posts: 216
Liked 7 Times on 6 Posts
Likes Given: 6

Default

Where did you get those purty kegs?



__________________
lorglath is offline

Reply With Quote Quick reply to this message
Old 11-30-2011, 04:20 PM   #22
canyonbrewer
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2010
Location: south carolina
Posts: 177
Liked 5 Times on 5 Posts
Likes Given: 2

Default update - more pics

ok all, got the stand powdercoated. Chose standard black with a hammered finish. The powdercoat guy said this was the most durable thing out there. Said they were powdercoating a bunch of construction stuff for IngerSoll Rand in the same color.

cost me $125

Also got the internal pump wiring in place, installed the threaded inserts from McMaster and put on my caster city casters.

enjoy the pics...hopefully I will have the bottom shelf and pumps mounted this weekend. Also going to try and finish the control box - waiting on a hole saw for my panel receptacles though.

stand looks good to me


control box mount - those are the pump wires hanging out


some close ups of the finish







shot showing where my wires are running...only took us 5 minutes to snake the wires...we were smart and drilled nice internal holes before welding



these are some swagelok fittings I got yesterday...gonna use them to mount my herms coil inside my HLT



couple shots of the control box before components are installed and holes are cut. I am going to mount the box so that the lid will open up





__________________
canyonbrewer is offline

Reply With Quote Quick reply to this message
Old 11-30-2011, 04:45 PM   #23
Lucky_Chicken
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2011
Location: Bloomfield, IA
Posts: 793
Liked 31 Times on 23 Posts
Likes Given: 4

Default

nice... will you be running all your wiring through the tubes?

Lucky_Chicken is offline

Reply With Quote Quick reply to this message
Old 11-30-2011, 04:47 PM   #24
canyonbrewer
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2010
Location: south carolina
Posts: 177
Liked 5 Times on 5 Posts
Likes Given: 2

Default

Quote:
Originally Posted by thepirho View Post
I wanna see the herms coil installed, do the herms coil fittings protrude into the keggle? How are you connecting it? Stainless Threaded compression fittings?

Also are you going to power coat or paint the stand to prevent rust?
gonna mount the herms coil next using those swagelok elbow fittings. I chose elbow because I didn't want to have to deal with the 90 deg bend in the coil.

the full couplers in the kegs are mounted flush on the inside....so I have a TC adapter on the outside and will connect the swagelok to the inside.

Only concern I have is that the coil will be too close to the kettle wall... we'll see I guess. I'll post pics when the coil is mounted.
__________________
canyonbrewer is offline

Reply With Quote Quick reply to this message
Old 11-30-2011, 11:25 PM   #25
mateomtb
Feedback Score: 1 reviews
Recipes

Join Date: Jan 2011
Location: Pine, Co
Posts: 122
Liked 7 Times on 7 Posts
Likes Given: 7

Default

Thanks for casters site mention, that site is sweet. Which model did you go with? The cart is awesome.

__________________
mateomtb is offline

Reply With Quote Quick reply to this message
Old 11-30-2011, 11:52 PM   #26
canyonbrewer
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2010
Location: south carolina
Posts: 177
Liked 5 Times on 5 Posts
Likes Given: 2

Default

Quote:
Originally Posted by jtsims21 View Post
nice... will you be running all your wiring through the tubes?
Just the pump wiring. Elements will be external
__________________
canyonbrewer is offline

Reply With Quote Quick reply to this message
Old 11-30-2011, 11:53 PM   #27
canyonbrewer
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2010
Location: south carolina
Posts: 177
Liked 5 Times on 5 Posts
Likes Given: 2

Default

Quote:
Originally Posted by mateomtb View Post
Thanks for casters site mention, that site is sweet. Which model did you go with? The cart is awesome.
They are aluminum dual locking 4 inch stem casters. They lock roll and rotation
__________________
canyonbrewer is offline

Reply With Quote Quick reply to this message
Old 12-02-2011, 04:53 PM   #28
WAORGANY
Feedback Score: 0 reviews

WAORGANY's Avatar
Recipes

Join Date: Apr 2010
Location: Northern NY, NY
Posts: 464
Liked 13 Times on 11 Posts
Likes Given: 33

Default

Great looking build tell your buddy at JGR that they need to give Denny some of your beer when you get this done, made it will help him run better in 2012! Keep up the great work, thanks for sharing...I will be starting my own thread soon as well, amassing parts and pieces now!!!

__________________

RLTW!

WAORGANY is offline

Reply With Quote Quick reply to this message
Old 12-02-2011, 05:43 PM   #29
sjwelna
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2008
Posts: 67
Default

Those kegs look like Daleks sitting on the stand with the tri-clover fittings on them. (any other Dr. Who fans out there???)

This is going to be a good thread, that stand/kegs look awesome so far.

-Steve

__________________
sjwelna is offline

Reply With Quote Quick reply to this message
Old 12-04-2011, 06:32 PM   #30
canyonbrewer
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2010
Location: south carolina
Posts: 177
Liked 5 Times on 5 Posts
Likes Given: 2

Default update - more pics - herms coil and control box work

hey all -

as promised, here are some more pictures and a video

I finished installing and leak testing the herms coil.


herms coil began it's life as an immersion chiller from midwest brew. here it is after cutting off the excess.



as you can see, the coiling process puts a troublesome oval shape in the tubing



i worked the ends with a pair of channeloks to try and get it more round



after 20 minutes of messing around, I could still only get the nut on about 1 inch. After this, I decided to quit messing around and I drilled out the nut bigger with my step bit. after that it slid right on

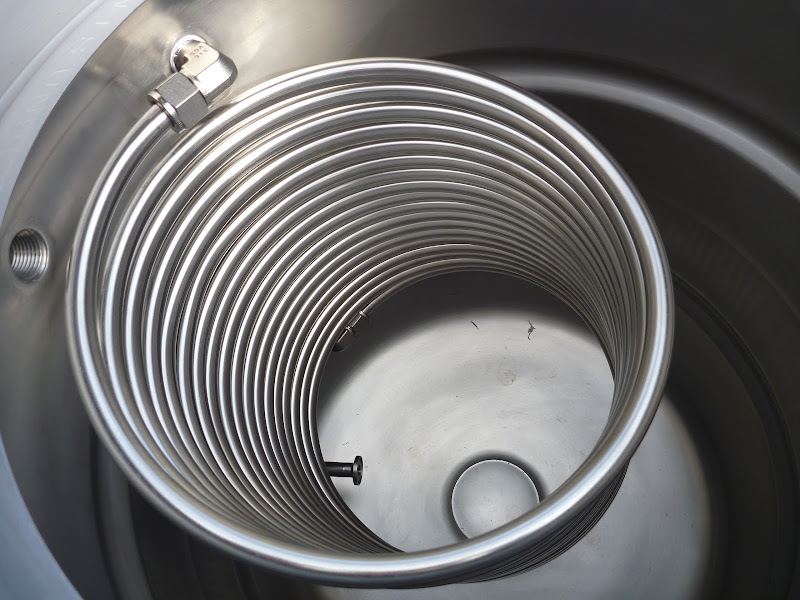

here is the coil installed



close up of swagelok connection inside



leak testing



my water-in connection...random off topic, but shows what I do



here is a video of my leak testing the newly installed coil...plan on putting some pressure on it for the next test...maybe with a valve or something


used a visio created template to layout the PID holes -worked great in real life too...not just my imagination

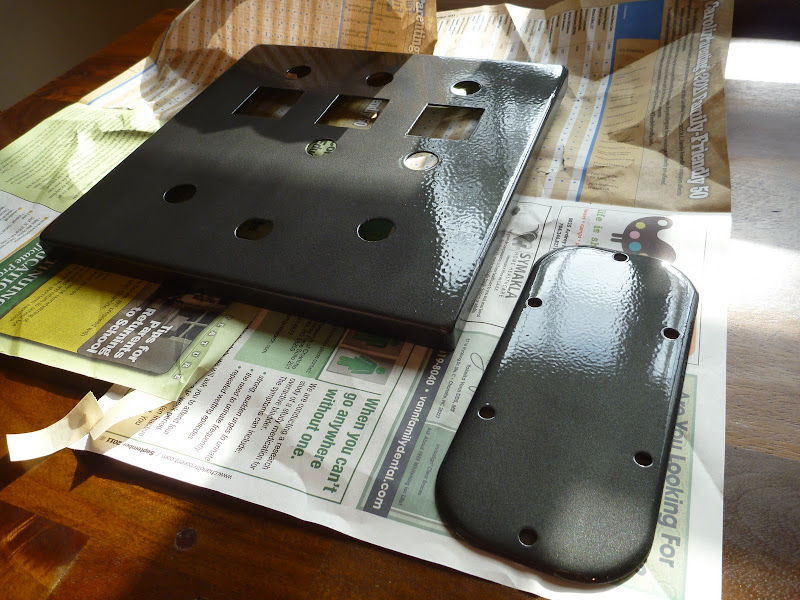

control panel is getting primed, painted, and cleared
