Default My E-HERMS Build - LOTS OF PICS

Hello All -

PJ probably doesn't remember, but he talked me into a HERMS (rather than RIMS)

Just wanted to start a thread to post my progress...

starting with some random pics....more to come


metal for stand



cut inner control panel - this is aluminum that will go inside my control box using custom standoffs



control panel with components mock installed



new TC port on my brew kettle - for electric element


great weld...crappy picture

__________________
canyonbrewer is offline

Reply With Quote Quick reply to this message
Old 11-16-2011, 10:13 PM   #2
canyonbrewer
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2010
Location: south carolina
Posts: 177
Liked 5 Times on 5 Posts
Likes Given: 2

Default

more pics


element adapter from Brewer's hardware

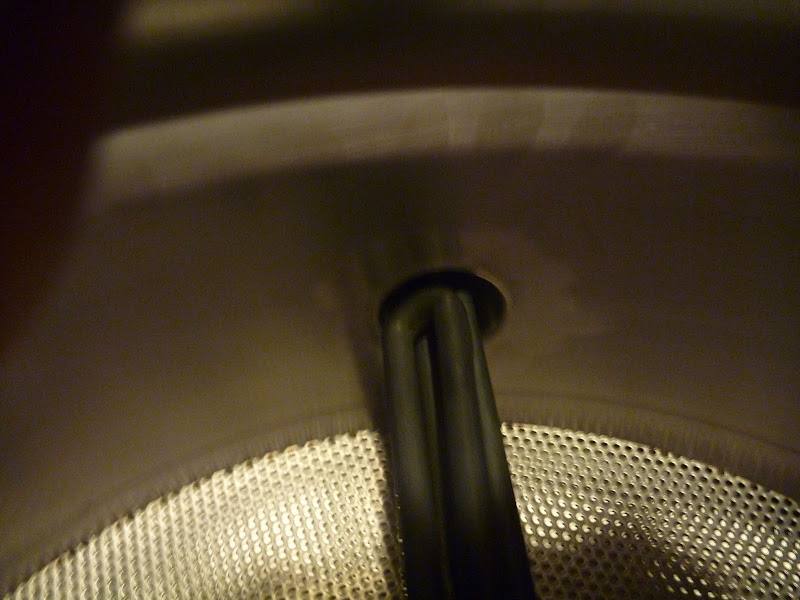

view inside...element comes close, but does not touch my pickup


blurry pic of both of my elements and adapters


HLT with new HERMS ports


these tigs are perfect


view from inside


herms coil waiting to be installed


HLT and BK next to each other

__________________
canyonbrewer is offline

Reply With Quote Quick reply to this message
Old 11-16-2011, 11:32 PM   #3
hatfieldenator
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2010
Posts: 494
Liked 17 Times on 14 Posts
Likes Given: 3

Default

Nice!

__________________
hatfieldenator is offline

Reply With Quote Quick reply to this message
Old 11-17-2011, 12:17 AM   #4
TheFlyingBeer
Feedback Score: 0 reviews
Recipes

Join Date: May 2007
Location: Catonsville, MD
Posts: 425
Liked 14 Times on 13 Posts
Likes Given: 3

Default

Mmmmmmm stainless! Looking good! How did you did you make the coil and what size tubing is it?

__________________

Primaries: Air
Secondaries: Lakefront India Brown Ale

On Tap 1: Rootbeer, On Tap 2: NB White ouse Honey Ale, On Tap 3: Nitrogen, On Tap 4: Air, On Tap 5: Air
On Deck: DIPA, Imp Stout, Porter, Wheat, Black IPA

"No sense having empty carboys around when full ones take up just as much space. " - Me
TheFlyingBeer is offline

Reply With Quote Quick reply to this message
Old 11-17-2011, 12:23 AM   #5
Lucky_Chicken
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2011
Location: Bloomfield, IA
Posts: 791
Liked 34 Times on 25 Posts
Likes Given: 4

Default

very nice! this forum (you included) are just trying to make me jealous! I look forward to seeing your progress.

Lucky_Chicken is offline

Reply With Quote Quick reply to this message
Old 11-17-2011, 12:28 AM   #6
mountainman13
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2011
Location: Colorado Springs, CO
Posts: 277
Liked 10 Times on 6 Posts
Likes Given: 8

Default

Nice!!

__________________
mountainman13 is offline

Reply With Quote Quick reply to this message
Old 11-17-2011, 01:01 AM   #7
Malric
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: , Chicago, IL
Posts: 499
Liked 25 Times on 22 Posts
Likes Given: 21

Default

Some have reported rusting from the element. Did you do anything to prevent that?

Why did you opt for tri clamp vs weldless?

__________________
Osmosis Brewing Co. aka another electric build
Malric is offline

Reply With Quote Quick reply to this message
Old 11-17-2011, 02:24 AM   #8
canyonbrewer
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2010
Location: south carolina
Posts: 177
Liked 5 Times on 5 Posts
Likes Given: 2

Default

Quote:
Originally Posted by TheFlyingBeer View Post
Mmmmmmm stainless! Looking good! How did you did you make the coil and what size tubing is it?
it's 50 feet of 1/2". I didn't want to mess with making it, so I bought the one below....figured it was worth $30 or so extra and not have to mess with bending, etc.

Stainless Steel Immersion Wort Chiller w/Garden Hose Fittings 50 ft
__________________
canyonbrewer is offline

Reply With Quote Quick reply to this message
Old 11-17-2011, 02:26 AM   #9
canyonbrewer
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2010
Location: south carolina
Posts: 177
Liked 5 Times on 5 Posts
Likes Given: 2

Default

Quote:
Originally Posted by Malric View Post
Some have reported rusting from the element. Did you do anything to prevent that?

Why did you opt for tri clamp vs weldless?
haven't done anything yet...but I have heard some people put high temp silicone on the base of the element (where the rust usually occurs)

I'll probably test it out first, and decide at that point.

i really liked the idea of the element adapter, and I also have alot of 1.5" TC in my brewery. It's well built, affordable, and I don't have to worry about leaks or building an enclosure, etc.
__________________
canyonbrewer is offline

Reply With Quote Quick reply to this message
Old 11-17-2011, 02:29 AM   #10
jsguitar
Feedback Score: 0 reviews

jsguitar's Avatar
Recipes

Join Date: May 2011
Location: Overland Park, KS
Posts: 1,082
Liked 96 Times on 75 Posts
Likes Given: 503

Default

Doh! You must have bought the last one of those chillers! I ordered one for the same purpose a few days ago because they still had it as being in stock and they just called yesterday to say that they were actually out and will be out of stock 'for a month or so' so I just decided to go with copper.

Really beautiful build BTW. Are those new kegs?

__________________
jsguitar is offline

Reply With Quote Quick reply to this message
