Old 01-03-2011, 02:34 AM   #181
kal
Feedback Score: 0 reviews

kal's Avatar
Recipes

Join Date: Nov 2006
Location: Ottawa, Canada
Posts: 2,018
Liked 187 Times on 127 Posts
Likes Given: 5

Default

Quote:
Originally Posted by Sparky View Post
By far, the build WILL require the person to be meticulous and conscious. Good luck, it is hard to find. It took me 5 years to build a good team for our business.
Agreed 100%. Which is why I'm looking for people with prior experience in this field, not just people who want to "help out". I'm incredibly fussy about this stuff and want to make sure it's done right.

Kal
kal is offline

Reply With Quote Quick reply to this message
Old 01-04-2011, 12:37 AM   #182
hatfieldenator
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2010
Posts: 494
Liked 16 Times on 14 Posts
Likes Given: 3

Default

So, I'm working on building the temp probes right now and I must say that this is no easy task. That expandable sleeving is a pain to work with! I'm just going to do one layer I think simply because I don't want to mess with the sleeving more than I have to

__________________
hatfieldenator is offline

Reply With Quote Quick reply to this message
Old 01-04-2011, 12:42 AM   #183
kal
Feedback Score: 0 reviews

kal's Avatar
Recipes

Join Date: Nov 2006
Location: Ottawa, Canada
Posts: 2,018
Liked 187 Times on 127 Posts
Likes Given: 5

Default

Quote:
Originally Posted by hatfieldenator View Post
So, I'm working on building the temp probes right now and I must say that this is no easy task. That expandable sleeving is a pain to work with! I'm just going to do one layer I think simply because I don't want to mess with the sleeving more than I have to
Really? Are you sure you got the same sizes I recommend? I don't remember it being very difficult given that the temp probe cables aren't very long. Getting it on was fairly easy and then I used heat shrink wrap to hold it in place to have nice clean edges.

I did two layers of sleeving just to give it more weight. I'm sure 1 would probably be fine too.



Kal
kal is offline

Reply With Quote Quick reply to this message
Old 01-04-2011, 01:41 AM   #184
milldoggy
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2008
Location: Pottstown, Pa
Posts: 1,963
Liked 55 Times on 46 Posts
Likes Given: 2

Default

someone posted a nice wire diagram for this, but I could not find it

Edit - Found it
http://www.homebrewtalk.com/f170/asl...wiring-207860/


Quote:
Originally Posted by joety View Post
I think I've got it figured out, but if anyone who bought the Auber timer vs the Omega timer can let me know how they've wired it, that'd be great. For now, I am following Kal on everything up to the timer connections. On the timer connections I will run the hot lead into the timer (#10), jumping the hot lead to the relay output (#8). I will then run a wire from the other side of the relay output (#7) to the alarm switch. Then I will run a neutral wire into the timer (#9), and jump to the buzzer and light. The reset button will be wired to #1 and #4 and I also installed a switch for pause, which will be wired to #2 and #4. Unlike Kal's setup, I am not jumping the neutral to the reset button. I think Kal needs to do this as the reset on the Omega timer needs current running through it to work. The Auber ASL-51 generates a small current off of both #1 and #2, so you can direct wire it to the common on #4.
__________________
My E-Herms

My hop stopper

Last edited by milldoggy; 01-04-2011 at 02:16 AM. Reason: found it
milldoggy is offline

Reply With Quote Quick reply to this message
Old 01-04-2011, 02:59 AM   #185
hatfieldenator
Feedback Score: 1 reviews
Recipes

Join Date: Sep 2010
Posts: 494
Liked 16 Times on 14 Posts
Likes Given: 3

Default

Well, I bought the parts as listed from your site. It wasn't terribly hard I suppose...I just had to kind of shimmy the sleeving along the length of the cable to get it on. Once it was on it was pretty easy to do the rest.

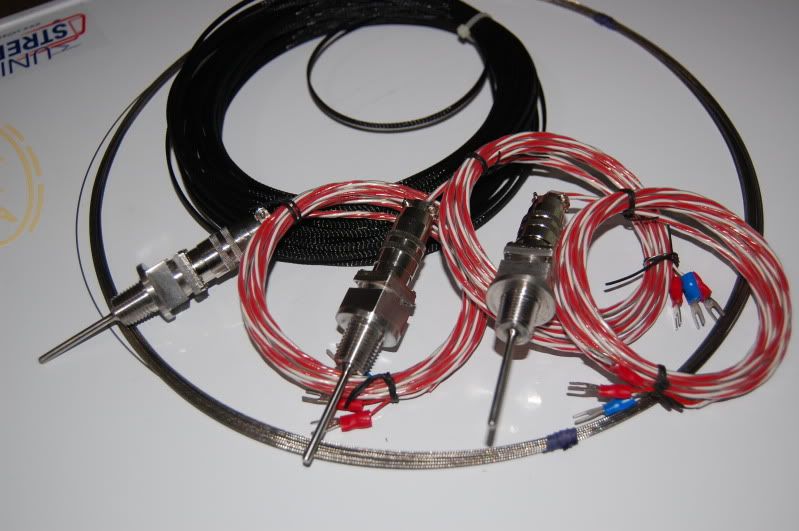

Here's the progress I made on the cables tonight. I haven't added the XLR connectors yet...
I went from this

to this

__________________
hatfieldenator is offline

Reply With Quote Quick reply to this message
Old 01-04-2011, 03:43 AM   #186
joety
Feedback Score: 0 reviews

joety's Avatar
Recipes

Join Date: Oct 2008
Location: Germantown Wisconsin
Posts: 1,434
Liked 14 Times on 13 Posts
Likes Given: 10

Default

Quote:
Originally Posted by hatfieldenator View Post
So, I'm working on building the temp probes right now and I must say that this is no easy task. That expandable sleeving is a pain to work with! I'm just going to do one layer I think simply because I don't want to mess with the sleeving more than I have to
It was a little tricky to get started, but I did mine on Saturday and got both layers on, soldered the auber connector on the other end (I went with their stock quick disconnect vs what Kal used) and heat shrinked both ends to finish it off. I love the heft and finish of the cord (I went black/blue same as Kal) and the stainless wire rope, when looped through the clamps at both ends and heat shrinked in place, acts as additional strain relief. Great design by Kal. Like everything else in his build, NASA quality.

I ran out of MAP gas for my torch, which I normally use for heat shrink tubing. For those of you contemplating obtaining a heat gun, a candle at a careful distance from the flame does the charm.

Quote:
Originally Posted by milldoggy View Post
someone posted a nice wire diagram for this, but I could not find it

Edit - Found it
http://www.homebrewtalk.com/f170/asl...wiring-207860/
Thanks, I finished it this weekend and mine is similar, although I also wired in the pause switch, by wiring #2 and #4 to a selector switch. After playing with it for a bit, I can't imagine not having the pause switch. Obviously you can use the tiny one on the face of the instrument itself, but that's no fun.
__________________
Conical 1 - Bye-Week Blonde
Conical 2 - Empty
Carboys - Cougar Killer DIPA

Secondaries - Sunday Night Hoppy Pale Ale
Lagering in Kegs - None

Kegged: American Wheat/Rye, Nut Brown Ale, Munich Helles, Belgian Stout, Resurrection Milk Stout, Bourbon County Stout, BLC
Bottled: Oaked Bourbon Porter
Planned: Baltic Porter
joety is offline

Reply With Quote Quick reply to this message
Old 01-04-2011, 03:59 AM   #187
kal
Feedback Score: 0 reviews

kal's Avatar
Recipes

Join Date: Nov 2006
Location: Ottawa, Canada
Posts: 2,018
Liked 187 Times on 127 Posts
Likes Given: 5

Default

Nice work hatfieldenator! I still find it really freaky seeing people build stuff hat looks identical to mine. I guess I still find it strange that anyone would want to follow in my footsteps.

Kal

__________________
TheElectricBrewery.com: A step by step guide to building your own electric brewery
My basement/bar/brewery build 2.0
kal is offline

Reply With Quote Quick reply to this message
Old 01-04-2011, 04:10 AM   #188
Scut_Monkey
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Pittsburgh, Pennsylvania
Posts: 2,666
Liked 11 Times on 11 Posts

Default

Quote:
Originally Posted by joety View Post
It was a little tricky to get started, but I did mine on Saturday and got both layers on, soldered the auber connector on the other end (I went with their stock quick disconnect vs what Kal used) and heat shrinked both ends to finish it off.
What is the stock quick disconnect? What part number is that?
__________________
Scut_Monkey is offline

Reply With Quote Quick reply to this message
Old 01-04-2011, 01:32 PM   #189
joety
Feedback Score: 0 reviews

joety's Avatar
Recipes

Join Date: Oct 2008
Location: Germantown Wisconsin
Posts: 1,434
Liked 14 Times on 13 Posts
Likes Given: 10

Default

Quote:
Originally Posted by Scut_Monkey View Post
What is the stock quick disconnect? What part number is that?
Part #RTDCON

It's in the last category on the left of the home page. Works like a charm.

http://www.auberins.com/index.php?ma...roducts_id=118
__________________
Conical 1 - Bye-Week Blonde
Conical 2 - Empty
Carboys - Cougar Killer DIPA

Secondaries - Sunday Night Hoppy Pale Ale
Lagering in Kegs - None

Kegged: American Wheat/Rye, Nut Brown Ale, Munich Helles, Belgian Stout, Resurrection Milk Stout, Bourbon County Stout, BLC
Bottled: Oaked Bourbon Porter
Planned: Baltic Porter
joety is offline

Reply With Quote Quick reply to this message
Old 01-05-2011, 12:30 AM   #190
Scut_Monkey
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Pittsburgh, Pennsylvania
Posts: 2,666
Liked 11 Times on 11 Posts

Default

Quote:
Originally Posted by joety View Post
Part #RTDCON

It's in the last category on the left of the home page. Works like a charm.

http://www.auberins.com/index.php?ma...roducts_id=118
What are the disadvantages/advantages compared to the XLR connections described for Kal's electricbrewery? Both options seem very similar and about the same cost (cheap).
__________________
Scut_Monkey is offline

Reply With Quote Quick reply to this message
