Default double check me for wiring my brewshed

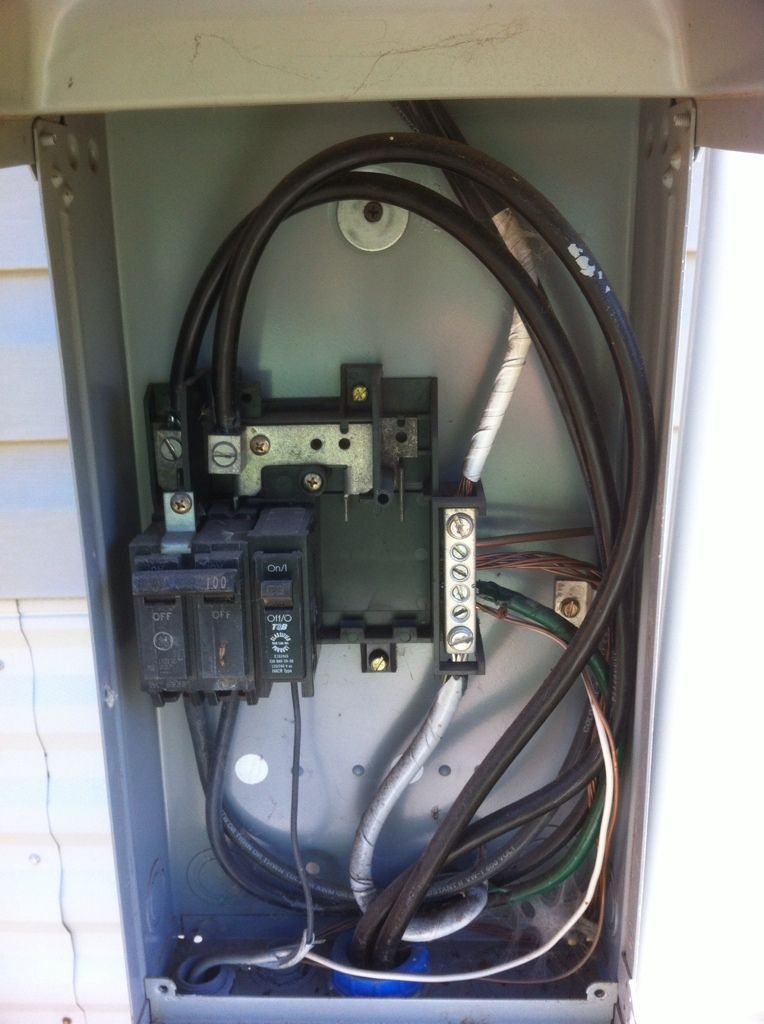

Building a brewshed and want to run electric to it. I do not use an electric brewery and have no plans to. Electric will be for lighting, fermentation chambers, pumps, general stuff like that. This is my main box outside.


I plan on running a 2 pole 30A and either UF wire or THWN in conduit (price will probably be the deciding factor). I know i need at least 10 gauge, but if it isnt too much more i may run 8 in case my needs increase in the future. Once at the shed Ill have a subpanel with a 30 amp breaker. Now if i understand it correctly I can't bind the white with the green in the subpanel. I should run 2 ground rods 6 feet apart and run 1 continous bare copper to establish a new ground. Of course the wire will buried to the established depth depending on if I go with conduit or direct bury. Sound about right? any glaring issues?

__________________

Mike in Duluth

Currently on Tap
1. Hefeweizen
2. BM Centennial Blonde
3. LHMS Clone

Pipeline
Next on Tap-Denny Conn Rye IPA
Kegged and aging Ed Worts Apfelwine, Denny Conn BVIP
Fermenters -

bucfanmike is offline

Reply With Quote Quick reply to this message
Old 09-15-2012, 09:08 PM   #2
BeerguyNC61
Senior Member
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2012
Location: Annapolis, MD
Posts: 541
Liked 65 Times on 49 Posts
Likes Given: 10

Default

Do you have any pictures of the brewshed yet?

__________________
BeerguyNC61 is offline

Reply With Quote Quick reply to this message
Old 09-15-2012, 09:18 PM   #3
bucfanmike
Feedback Score: 0 reviews

bucfanmike's Avatar
Recipes

Join Date: Apr 2010
Location: Duluth
Posts: 1,022
Liked 24 Times on 21 Posts
Likes Given: 3

Default

Quote:
Originally Posted by BeerguyNC61 View Post
Do you have any pictures of the brewshed yet?

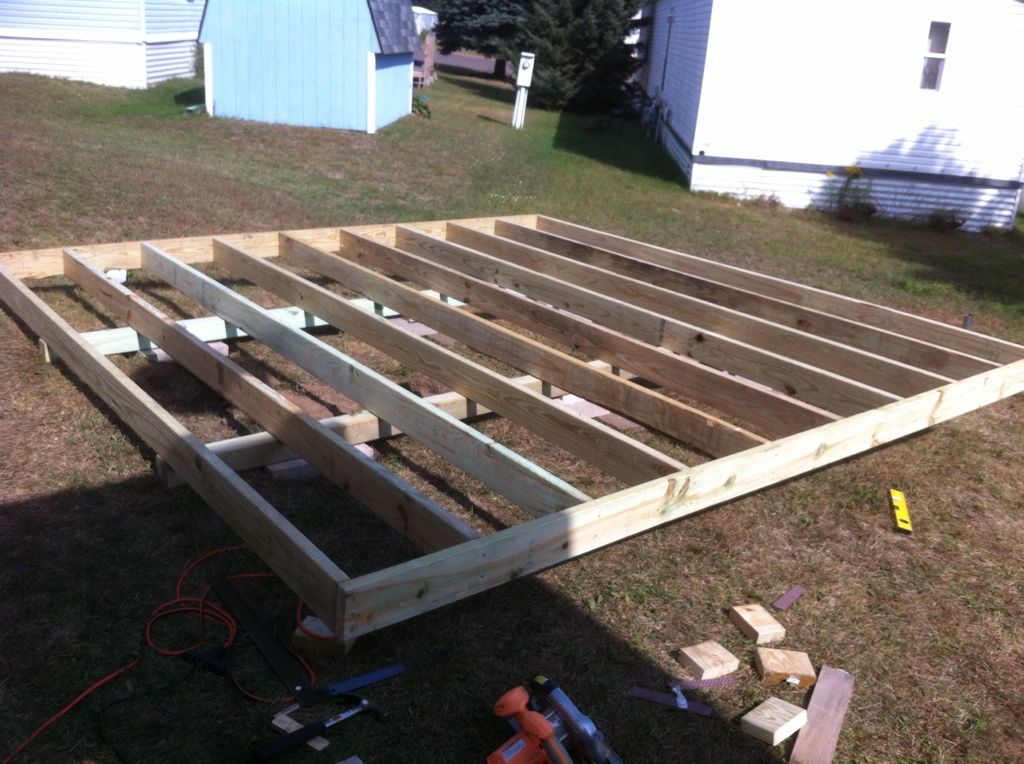

plan on starting a diy thread when it gets going. Big lumber delivery comes next week to do the framing. This is the start though.


__________________

Mike in Duluth

Currently on Tap
1. Hefeweizen
2. BM Centennial Blonde
3. LHMS Clone

Pipeline
Next on Tap-Denny Conn Rye IPA
Kegged and aging Ed Worts Apfelwine, Denny Conn BVIP
Fermenters -

bucfanmike is offline

Reply With Quote Quick reply to this message
Old 09-15-2012, 09:21 PM   #4
BeerguyNC61
Senior Member
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2012
Location: Annapolis, MD
Posts: 541
Liked 65 Times on 49 Posts
Likes Given: 10

Default

Good start.....

What do you have the floor sitting on? Do you have to worry about frost heavs much up there?

__________________
BeerguyNC61 is offline

Reply With Quote Quick reply to this message
Old 09-15-2012, 09:32 PM   #5
bucfanmike
Feedback Score: 0 reviews

bucfanmike's Avatar
Recipes

Join Date: Apr 2010
Location: Duluth
Posts: 1,022
Liked 24 Times on 21 Posts
Likes Given: 3

Default

did it the same as my other shed and deck. Dig down and gravel an area for solid concrete blocks, then the 4x4 skids sit on the concrete. My other shed has been there 12 yrs no problems, deck has been that way for 5 yrs now. This is the way most sheds are done up here.

__________________

Mike in Duluth

Currently on Tap
1. Hefeweizen
2. BM Centennial Blonde
3. LHMS Clone

Pipeline
Next on Tap-Denny Conn Rye IPA
Kegged and aging Ed Worts Apfelwine, Denny Conn BVIP
Fermenters -

bucfanmike is offline

Reply With Quote Quick reply to this message
Old 09-16-2012, 06:32 PM   #6
bucfanmike
Feedback Score: 0 reviews

bucfanmike's Avatar
Recipes

Join Date: Apr 2010
Location: Duluth
Posts: 1,022
Liked 24 Times on 21 Posts
Likes Given: 3

Default

can anyone confirm my electric plan? And what i should consider in deciding between single strand/conduit and uf wire. It will be a run total of about 40', but i do have 2 90 degree bends along the way. That is also making me think the uf is the way to go.

__________________

Mike in Duluth

Currently on Tap
1. Hefeweizen
2. BM Centennial Blonde
3. LHMS Clone

Pipeline
Next on Tap-Denny Conn Rye IPA
Kegged and aging Ed Worts Apfelwine, Denny Conn BVIP
Fermenters -

bucfanmike is offline

Reply With Quote Quick reply to this message
Old 09-16-2012, 08:33 PM   #7
BeerguyNC61
Senior Member
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2012
Location: Annapolis, MD
Posts: 541
Liked 65 Times on 49 Posts
Likes Given: 10

Default

I would go with conduit, if you ever need to up-grade the service in the shed it is wicked easy to pull new wires in the conduit.

__________________
BeerguyNC61 is offline

Reply With Quote Quick reply to this message
Old 09-17-2012, 04:07 PM   #8
bucfanmike
Feedback Score: 0 reviews

bucfanmike's Avatar
Recipes

Join Date: Apr 2010
Location: Duluth
Posts: 1,022
Liked 24 Times on 21 Posts
Likes Given: 3

Default

anyone else? still want to make sure im good on the ground rod situation.

__________________

Mike in Duluth

Currently on Tap
1. Hefeweizen
2. BM Centennial Blonde
3. LHMS Clone

Pipeline
Next on Tap-Denny Conn Rye IPA
Kegged and aging Ed Worts Apfelwine, Denny Conn BVIP
Fermenters -

bucfanmike is offline

Reply With Quote Quick reply to this message
Old 09-17-2012, 04:30 PM   #9
P-J
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2010
Location: Charlotte, NC
Posts: 3,284
Liked 260 Times on 207 Posts
Likes Given: 459

Default

Quote:
Originally Posted by bucfanmike View Post
anyone else? still want to make sure im good on the ground rod situation.
If you pull 4 wire cable (240V + Neutral + Ground) you do not need to place ground rods.

If you pull 3 wire cable then you do need to establish ground in your building. It is new construction and must comply with current NEC. Be sure to pull a permit.
