Old 02-25-2012, 06:24 PM   #11
HHP
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Harker Heights, Texas
Posts: 374
Liked 6 Times on 5 Posts
Likes Given: 2

Default

Quote:
Originally Posted by stlbeer View Post
Thanks for starting this thread! I've been curious about a couple of different items regarding these DIN rail mounted components.

The terminal blocks. How do those work when ganged together? Can they be used to distribute power? Or don't they work that way? I'm looking at power distribution blocks and those are kind of pricey. If these terminal blocks can be used to distribute power in my control panel then I'd rather go with that.
I use terminal blocks to distribute power. If you put them next to each other without the jumper rail on top they are insulated from one another, but once you put the jumper rail on top (screws into them) they become power distribution.

Din rail/terminal blocks + zip ties = a clean wiring job...
__________________

Texas is awesome.

HHP is offline

Reply With Quote Quick reply to this message
Old 02-25-2012, 06:50 PM   #12
airbalancer
Feedback Score: 0 reviews

airbalancer's Avatar
Recipes

Join Date: Dec 2008
Location: Western MA
Posts: 260
Liked 5 Times on 4 Posts

Default

__________________
Brewery Pics
airbalancer is offline

Reply With Quote Quick reply to this message
Old 02-25-2012, 09:14 PM   #13
ClaudiusB
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: El Paso, Texas
Posts: 1,256
Liked 57 Times on 49 Posts
Likes Given: 108

Default

Quote:
Originally Posted by stlbeer View Post
How do those work when ganged together? Can they be used to distribute power?
The terminal blocks come in different ampere ratings, 10A,20A, etc. and use jumpers to make power distribution blocks.

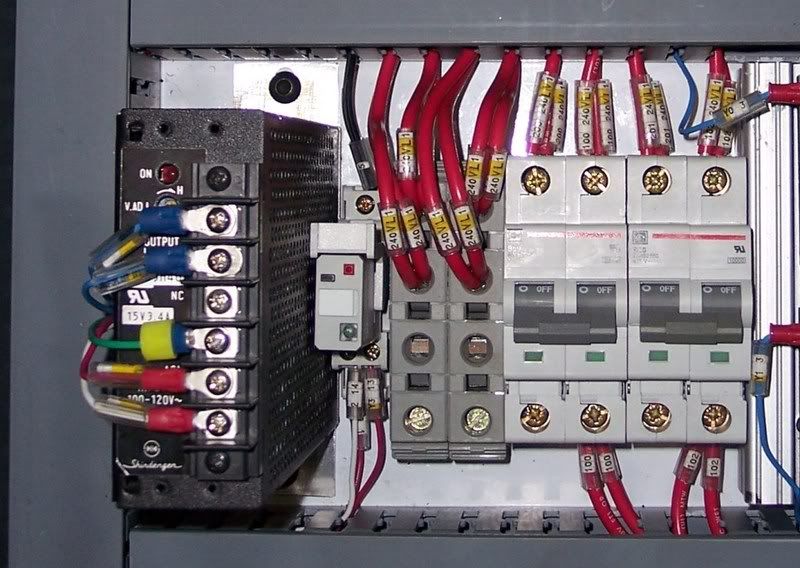

In this picture you can see two 75A DIN terminal blocks,bottom left.



Cheers,
ClaudiusB
ClaudiusB is offline

Reply With Quote Quick reply to this message
Old 02-26-2012, 03:34 PM   #14
wadefisher
Brew Meister
Feedback Score: 0 reviews

wadefisher's Avatar
Recipes

Join Date: Jul 2009
Location: Lewistown / Dade City, PA / FL
Posts: 301
Liked 10 Times on 8 Posts
Likes Given: 1

Default

Planning my next panel right now. Most items will be DIN rail mounted. I've been ordering and stocking and planning. But after building a few panels, I've definitely decided I like things mounted on the DIN rail. I will be posting a thread on this in 2-3 weeks.

I've been teaching myself Ladder Logic Programming for using PLC's and my project box for this was DIN rail components so that I could dynamically add and subtract items for experimentation. Even the PLC itself is DIN mounted.

I know its UGLY, but its a project box. Always changing and playing.

100_0162.jpg   100_0163.jpg
__________________

www DrunkMonkeyBrewWerks dot com

Last edited by wadefisher; 02-26-2012 at 05:09 PM. Reason: Add Pictures
wadefisher is offline
